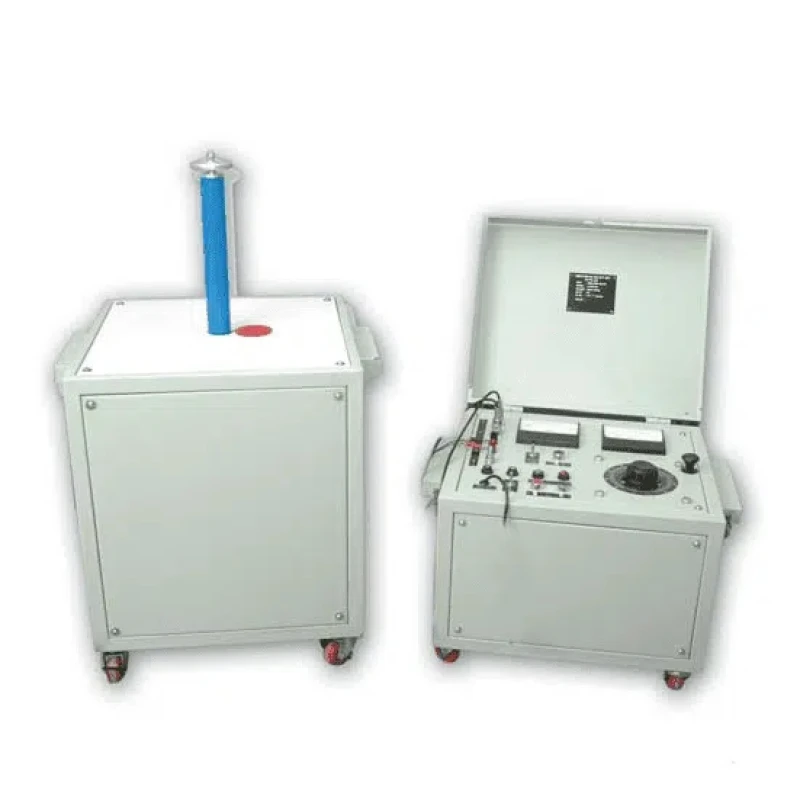

Metravi AC High Voltage Test Set DCHV AC
Specifications
| Country of Origin | India |
|---|---|
| Output | Continuously variable 0–3kV/5kV/10kV/15kV/25kV/30kV/35kV/40kV/50kV/60kV/70kV/75kV/80kV/100kV/130kV/150kV/175kV/200kV/300kV DC (any one) |
| Capacity | Max permissible transient current 3mA/5mA/10mA/20mA/30mA/50mA (any one) |
| Brand | Metravi |
| Model | DCHV AC |
| Input | 230V 50Hz single-phase AC or 415V 50Hz three-phase |
| Unit | Two or three units as per design requirements |
| Duty | Intermittent 5min ON/10min OFF (other duty cycles available) |
Key Features
- Continuously variable autotransformers of suitable capacity.
- Output DC H.V. is measured using a properly designed resistor chain along with an analog micro-ammeter.
- Analog milli ammeter along with press-to-read push button switch for measurement of leakage current.
- Mains 'ON' - 'OFF' Switch & H.T. 'ON' 'OFF' push button switch incorporated. -
- Automatic tripping mechanism for protecting the H.V. transformer against overloading.
- This tripping device is incorporated both on the L.T. side & H.T. side.
- This tripping device senses the leakage current to be higher than the preset value (1mA or 10mA) & trips the entire H.T. Circuit.
Product Description
Metravi DCHV 40–130kV DC High Voltage Test Set is a high-performance testing solution engineered for accurate insulation testing and high-voltage DC applications in power utilities and industrial environments. Designed for reliability and precision, this test set offers multiple selectable output voltage ranges from 0–40kV up to 0–130kV, along with flexible current ratings up to 300mA, making it ideal for testing cables, transformers, switchgear, and other high-voltage equipment. It supports both 230V single-phase and 415V three-phase input, ensuring compatibility with varied power systems. The unit features configurable capacity options and modular design, allowing customization based on testing needs. With an intermittent duty cycle for safe and efficient operation, it ensures consistent performance during extended testing. Built for durability and ease of use, the Metravi DCHV series is widely used for commissioning, maintenance, and quality assurance in electrical testing applications. Available on EnvMart, these High Voltage Testing Equipment are designed for accurate testing and insulation assessment in electrical systems. Metravi High Voltage Testing Instruments provide precision, safety, and reliability, making them ideal for industrial, laboratory, and power distribution applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage range is continuously variable from 0 to 300kV DC, with selectable increments including 0–3kV, 0–5kV, 0–10kV, up to 0–300kV.
It requires either a 230V 50Hz single-phase AC supply or a 415V 50Hz three-phase AC supply.
The maximum permissible transient current can be selected from options of 3mA, 5mA, 10mA, 20mA, 30mA, or 50mA.
The unit operates on an intermittent duty cycle of 5 minutes ON followed by 10 minutes OFF, with other duty cycles available as per requirements.
It is suitable for testing cables, transformers, switchgear, and other high-voltage equipment in power utilities and industrial environments.
Yes, it includes an automatic tripping mechanism that protects the high voltage transformer against overloading by sensing leakage current.
The country of origin is India.
It features an analog milliammeter along with a press-to-read push button switch for measuring leakage current.
The design allows for either two or three units to be configured based on specific requirements.
It is ideal for commissioning, maintenance, and quality assurance in electrical testing applications.
The test set has a mains 'ON' and 'OFF' switch, along with an H.T. 'ON' and 'OFF' push button switch for safety during operation.
Output DC high voltage is measured using a properly designed resistor chain along with an analog micro-ammeter.
