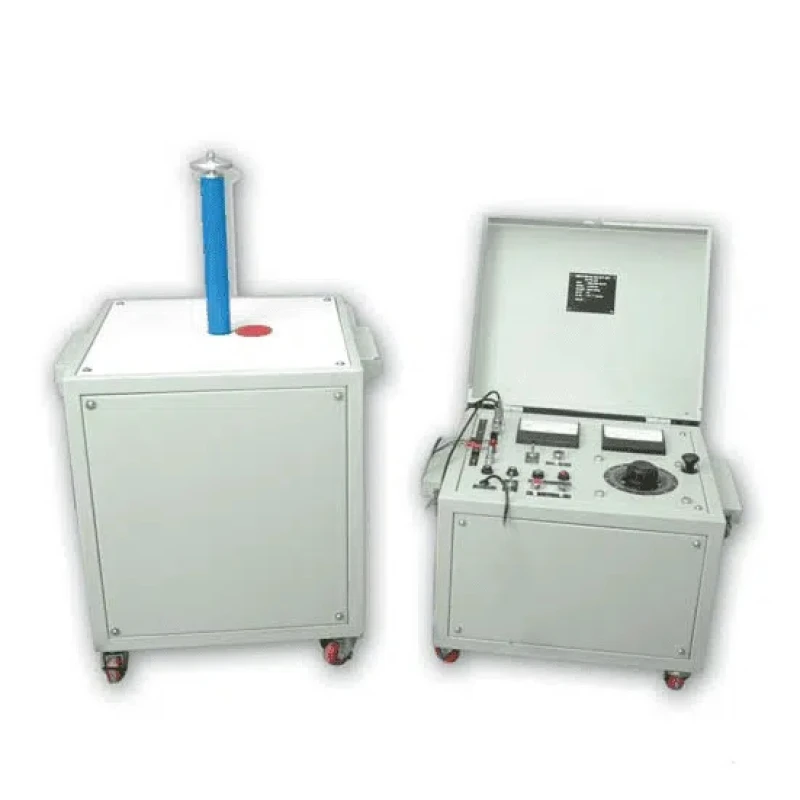

Metravi High Voltage Test Kit ACHV AC
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | A H.V. bushing / Inter connecting cables / Main power supply cord |
| Output | Continuously variable 0–2.5kV/5kV/10kV/15kV/20kV/25kV/30kV/35kV/40kV/50kV/60kV/70kV/75kV/80kV AC (any one) |
| Capacity | Max permissible transient current 10mA/20mA/50mA/100mA/150mA/200mA (any one) |
| Brand | Metravi |
| Model | ACHV AC |
| Input | 230V 50Hz single-phase AC or 415V 3-phase (any one) |
| Unit | Two or three units as per required specifications |
| Duty | Intermittent 5min ON/10min OFF (other duty cycles available) |
Key Features
- These sets are suitable for applied voltage tests on transformers, motors, gloves bushing, and many other electrical equipment and insulating materials and components.
- The sets are capable of giving continuously variable control of High Voltage from zero to maximum rated output voltage and maintaining pressure at the
- desired level by supplying the charging current necessary for the capacity of the equipment under test.
- Generally available in one unit and sets for higher output voltage are available in two units.
- However, in case if required sets in more than two units can also be manufactured.
Product Description
Metravi ACHV 0–35kV High Voltage Test Set is a powerful and reliable solution designed for high-voltage testing, insulation verification, and electrical equipment validation in industrial and utility environments. Engineered for precision and safety, this test set offers multiple selectable output voltage ranges from 0–3kV up to 0–35kV, along with flexible current ratings up to 300mA, making it suitable for a wide range of testing applications. It supports both single-phase 230V and three-phase 415V input, ensuring adaptability across different power setups. With configurable capacity options and modular units, it allows customization based on specific testing requirements. The intermittent duty cycle ensures safe operation during prolonged testing, protecting both the equipment and operator. Ideal for testing transformers, cables, switchgear, and insulation systems, the Metravi ACHV series delivers dependable performance, high accuracy, and robust construction, making it a preferred choice for electrical maintenance, commissioning, and quality assurance applications. Available on EnvMart, these High Voltage Testing Equipment are designed for accurate testing and insulation assessment in electrical systems. Metravi High Voltage Testing Instruments provide precision, safety, and reliability, making them ideal for industrial, laboratory, and power distribution applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage range is continuously variable from 0 to 35kV AC, with selectable options including 0–2.5kV, 5kV, 10kV, 15kV, 20kV, 25kV, 30kV, and 35kV.
The maximum permissible transient current ratings available are 10mA, 20mA, 50mA, 100mA, 150mA, and 200mA, with any one option selectable based on testing requirements.
It supports an input of either 230V 50Hz single-phase AC or 415V three-phase AC, allowing for adaptability across different power setups.
The duty cycle is intermittent, allowing for 5 minutes of operation followed by 10 minutes of rest. Other duty cycles may also be available.
The package contents include a high voltage bushing, interconnecting cables, and a main power supply cord.
The test kit provides continuously variable control of high voltage from zero to the maximum rated output, allowing for precise adjustments during testing.
It is suitable for applied voltage tests on transformers, motors, gloves, bushings, and various other electrical equipment and insulating materials.
The Metravi High Voltage Test Kit ACHV AC is manufactured in India.
The test kit is available in two or three units as per required specifications, with options for customization if needed.
The intermittent duty cycle ensures safe operation during prolonged testing, protecting both the equipment and the operator.
It is ideal for electrical maintenance, commissioning, and quality assurance applications in industrial, laboratory, and power distribution environments.
Yes, the test kit allows for configurable capacity options and modular units to meet specific testing requirements.
