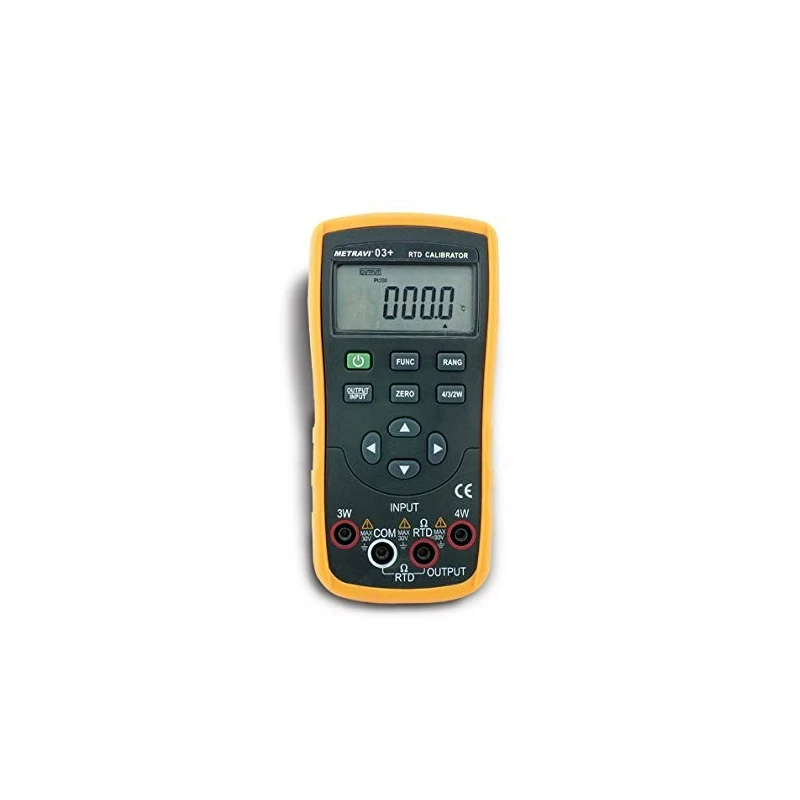

Metravi RTD Calibrator 03+
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi 03+ RTD Calibrator / User’s Manual / industrial testing lead CF-36 (clips for probe) |
| Operating Humidity | ≤80%RH |
| Power Consumption | ≈70mW/3V |
| Brand | Metravi |
| Power | 2×1.5V alkaline batteries(LR6) |
| Operating Temperature | 0–50°C |
| Dimensions | 180×90×47mm(with protector) |
| Storage Temperature | -10–55°C |
| Model | 03+ RTD |
| Weight | ≈500g |
| Temperature Coefficient | 0.1×(dedicated accuracy)%/°C(5–18°C or 28–40°C) |
| Storage Humidity | ≤90%RH |
| Maximum Allowed Voltage | 30V(between terminals or terminal to ground) |
Key Features
- imulates Thermo–resistance and Resistance output
- Measures Thermo-resistance and Resistance
- °C and °F scales selectable.
- Suitable for field use.
- High Accuracy of 0.05%
- Display : 5 Digits LCD
- Outputs Provided :-
- Resistance Range : 0 – 400Ω
- Resolution : 0.1Ω
- Accuracy : ±0.05%
- PT-100 Sensor : -200°C to 850°C
- Resolution : 0.1°C
- Accuracy : ±0.05%
- Cu50 Sensor : -200°C to 150°C
- Resolution : 0.1°C
- Accuracy : ±0.05%
- Measuring Range :-
- Resistance : 0 TO 400Ω
- Resolution : 0.1Ω
- Accuracy : ±0.05%
- PT – 100 Sensor : -200°C to 850°
- Resolution : 0.1°C
- Accuracy : ±0.05%
- Cu50 Sensor : -50°C to 150°C
- Resolution : 0.1°C
- Accuracy : ±0.05%
Product Description
The Metravi 03+ Process Calibrator is a compact and highly accurate instrument designed for calibration and testing of industrial process signals. Ideal for maintenance engineers and technicians, this versatile calibrator supports precise resistance simulation and measurement with a range of up to 5000Ω (input) and 400Ω (output), ensuring reliable verification of control systems. It also offers temperature calibration capabilities for PT-100 sensors from -200°C to 850°C and Cu50 sensors from -50°C to 150°C, making it suitable for a wide range of industrial applications. The clear LCD display provides easy readability, while its ±0.05% accuracy ensures dependable results in critical environments. Powered by AA batteries, the lightweight and portable design allows convenient field use. With robust IEC1010 compliance and user-friendly operation, the Metravi 03+ is an essential tool for process calibration, instrumentation testing, and quality assurance in industries such as manufacturing, power plants, and automation systems. Available on EnvMart, these Temperature Calibrators are designed for precise calibration of temperature instruments and sensors. Metravi Temperature Calibrators provide high accuracy and reliability, making them ideal for laboratory, industrial, and process control applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure temperatures for PT-100 sensors from -200°C to 850°C and for Cu50 sensors from -50°C to 150°C.
It has an accuracy of ±0.05% for both resistance and temperature measurements.
The output resistance range of this unit is 0 to 400Ω.
It features a 5-digit LCD display for easy readability of measurements.
It is powered by 2×1.5V alkaline batteries (LR6).
The dimensions of this model are 180×90×47mm including the protector.
The operating temperature range is from 0°C to 50°C.
The package includes the Metravi 03+ RTD Calibrator, a user’s manual, and industrial testing lead CF-36 with clips for the probe.
The maximum allowed voltage between terminals or terminal to ground is 30V.
This model weighs approximately 500g.
The operating humidity range is ≤80% relative humidity (RH).
The storage temperature range is from -10°C to 55°C.
