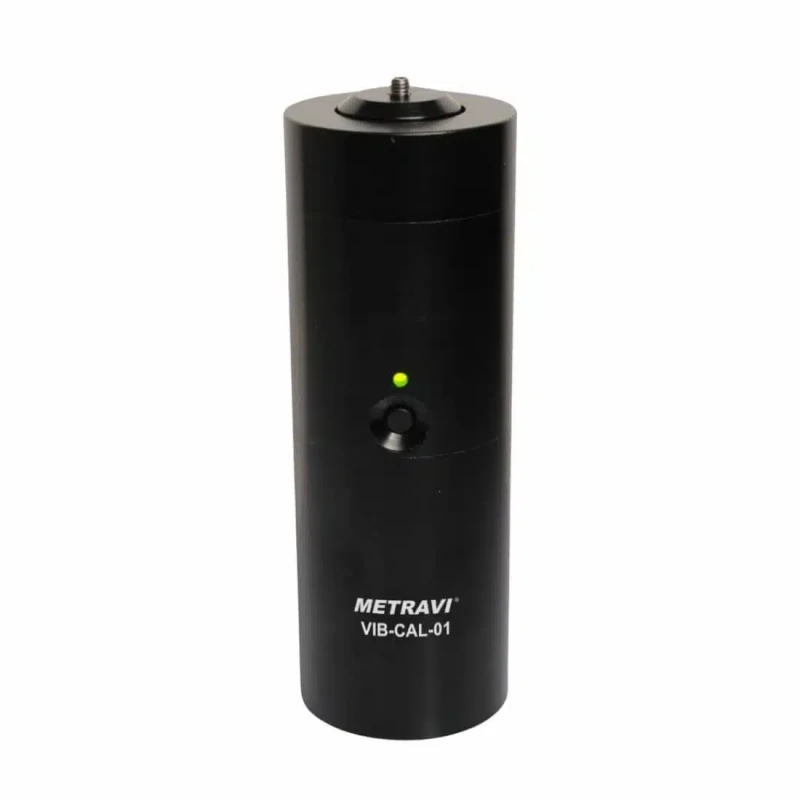

Metravi Handheld Vibration Calibrator VIB-CAL-01
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi VIB-CAL-01 Handheld Vibration Calibrator |
| Accuracy | ±5% |
| Frequency | 159.2Hz±0.5% |
| Size | φ52×160mm |
| Brand | Metravi |
| Power | 9V rechargeable battery(for 1.5h operation) |
| Operating Temperature | 0–55°C |
| Battery | 9V rechargeable(for 1.5h operation) |
| Humidity | 90% non-condensing |
| Model | CAL-01 |
| Weight | 500g |
| Displacement | 9.81µm RMS |
| Velocity | 9.81mm/s RMS |
| Maximum Load | 120g |
| Charge Time | 15h |
| Distortion | Less than 3% |
| Amplitude(Acceleration) | 9.81m/s² RMS |
| Sensor Mounting Base | M5 tapped hole |
Key Features
- Fixed Vibration Output: Provides constant 159.2 Hz sine vibration.
- Specific Amplitudes: Delivers fixed acceleration (9.81 m/s²), velocity (9.81 mm/s), and displacement (9.81 micron).
- All-in-One Unit: Integrates signal generator, amplifier, and shaker.
- High Accuracy: Offers ±5% output tolerance.
- Single Button Operation: Simple on/off control.
- Auto Power-Off: Shuts down after 50 seconds to save battery.
- Portable Design: Compact and lightweight for easy transport.
- Rechargeable Battery: Powered by a 9V rechargeable battery.
- Battery Indicator: LED shows operating and low battery status.
- M5 Sensor Mount: Standard mounting for sensors under test.
Product Description
The Metravi VIB-CAL-01 is a specialized vibration calibrator designed to simulate standard vibration levels for the calibration and verification of accelerometers, vibration meters, and analyzers. The device generates stable sinusoidal vibrations at fixed frequencies and amplitudes, ensuring consistency across sensor calibration. Lightweight and portable, the VIB-CAL-01 is ideal for onsite testing and field verification of condition monitoring systems in rotating machinery. It includes a built-in LCD, auto shut-off, and precision control to maintain stable output. Used in industries like automotive, manufacturing, and utilities, it guarantees equipment performance and reliability.
Available on EnvMart, these Portable Calibrators are perfect for on-site calibration of instruments and sensors. Metravi Portable Calibrators provide high accuracy and reliability, making them ideal for industrial, laboratory, and process control applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a fixed frequency output of 159.2 Hz with a tolerance of ±0.5%.
This model delivers fixed acceleration of 9.81 m/s², velocity of 9.81 mm/s, and displacement of 9.81 microns RMS.
The maximum load capacity is 120 grams.
It operates within a temperature range of 0 to 55°C.
It is powered by a 9V rechargeable battery, which allows for approximately 1.5 hours of operation.
The weight of this unit is 500 grams.
It features an M5 tapped hole for standard sensor mounting.
It offers an accuracy of ±5%.
The distortion is less than 3%.
The battery requires a charge time of 15 hours.
It can operate in humidity levels up to 90% non-condensing.
The package includes the Metravi VIB-CAL-01 Handheld Vibration Calibrator.
