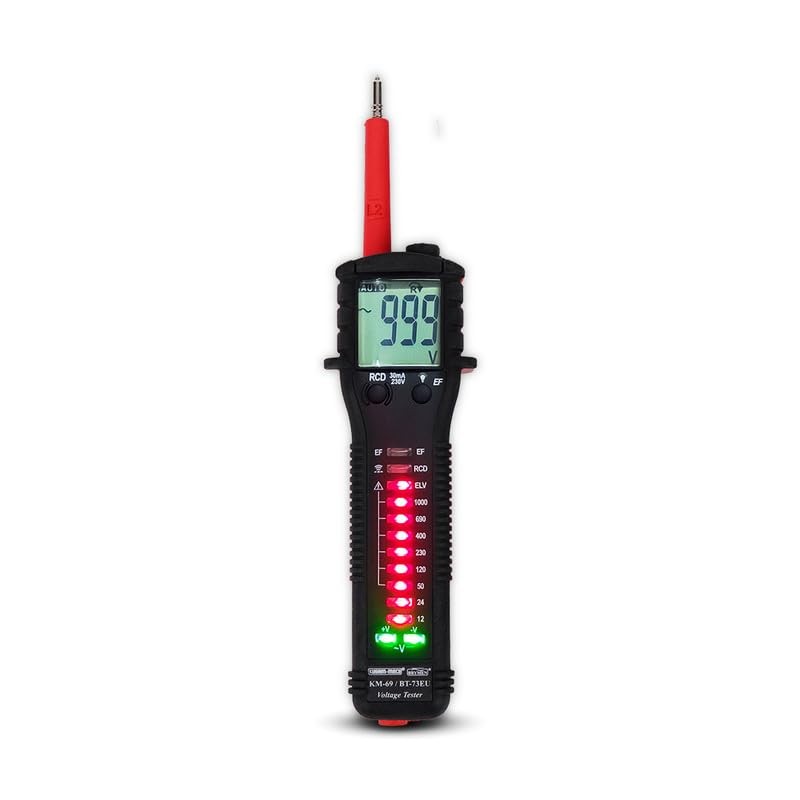

Kusam Meco Voltage Detector With Rcd Load Test Ef Detection KM69
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusam Meco KM 69 Voltage Detector / Batteries / User's Manual / Screw-On Stationary Red Probe / Detachable Leaded Black Probe. |
| Accuracy | DC±(1.5%Rdg+3dgt)/AC±(2.5%Rdg+4dgt) |
| Power Consumption | 2.7mAready/50mAACV/105mARCD/40mAContinuity/55mAResistance/Capacitance+30mA(Backlight) |
| Relative Humidity | ≤90% |
| Brand | Kusam Meco |
| Power Supply | 1.5VAAA(NEDA24AorIECLR03)X2 |
| Dimension | 278(L)*57(W)*40(H)mm |
| Storage Temperature | -20~65°C Less Than 80%RH(Withoutbattery) |
| Function | Voltage Detector With RCD Load Test/EF Detection |
| Altitude | Less Than 2000m |
| Model | KM69 |
| Temperature | -10~55°C |
| Weight | Approx 235g |
| Temperature Coefficient | 0.15x(Specifiedaccuracy)/°C(10~18°Cor28~50°C) |
| Sensing | TRMS Sensing For LCD Indication |
| Update Rate | 5/Sec |
| LCD Display | 3¾Digits1999counts |
| Pollution Degree | 2 |
| Low Battery | Less Than 2.6V |
| APO Timing | Idlefor16s |
| APO Consumption | 12μA |
| DC&AC Voltage(LED) | Range12~1000V |
| TurnON | 9.6~800V |
| TurnOFF | 7~760V |
| DC&AC Voltage(LCD) | RangeDC199.9V/1000V / AC199.9V/1000V |
| Threshold | +27VDCor Less Than -4.5VDC/ Greater Than 8VAC |
Key Features
- Advanced voltage and phase rotation tester with True RMS display
- Non-contact and probe-contact EF detection with LED indicators
- Battery-less DCV/ACV auto-selection up to 1000V
- RCD leakage load test and continuity with visual and audio alerts
- Handy ergonomic design with flashlight and backlight display
Product Description
The Kusam Meco KM69 Voltage Detector is a reliable digital tester for safe AC and DC voltage detection. It offers 3-digit, 1000-count readings and features RCD load testing, EF detection (both contact and non-contact), phase rotation indication, and continuity buzzer. Designed for electricians and maintenance engineers, it ensures accurate measurement and circuit safety checks. The compact and rugged design provides durability for on-site use, making it ideal for electrical inspection and troubleshooting.
Available on EnvMart, these Voltage Testers feature RCD testing, EF detection, and phase rotation functions. Kusam Meco Instruments provide safe, multifunction voltage diagnostics for professionals.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kusam Meco KM69 Voltage Detector has a measurement range of DC 199.9V to 1000V and AC 199.9V to 1000V.
The accuracy of the Kusam Meco KM69 is DC±(1.5%Rdg+3dgt) and AC±(2.5%Rdg+4dgt).
The Kusam Meco KM69 operates on a power supply of 1.5V AAA batteries, specifically using two batteries (NEDA24A or IEC LR03).
The dimensions of the Kusam Meco KM69 are 278mm in length, 57mm in width, and 40mm in height, with an approximate weight of 235g.
The Kusam Meco KM69 features RCD load testing, EF detection (both contact and non-contact), phase rotation indication, and continuity buzzer.
The operating temperature range for the Kusam Meco KM69 is -10°C to 55°C.
The storage temperature for the Kusam Meco KM69 is between -20°C and 65°C, with a relative humidity of less than 80% (without battery).
The update rate of the Kusam Meco KM69 is 5 readings per second.
The pollution degree rating for the Kusam Meco KM69 is 2.
The package contents of the Kusam Meco KM69 include the voltage detector, batteries, a user's manual, a screw-on stationary red probe, and a detachable leaded black probe.
The power consumption of the Kusam Meco KM69 is 2.7mA in ready mode, with varying consumption levels for different functions, such as 50mA for AC voltage and 105mA for RCD testing.
The Kusam Meco KM69 includes a phase rotation indication feature, which helps in identifying the phase sequence in electrical systems.
