Whiteness Meter TP-A11
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Power Supply | 220 V ± 10% / 50 Hz |
| Net Weight | 20 Kg |
| Light Source | D65 as illuminating source |
| Zero drift | ≤ 0.1% |
| Model | TP-A11 |
| Type of Product | Testing Instrument |
| System | D/0 lighting geometrical viewing conditions / diffuser diameter (d) 150 mm / testing hole diameter 30 mm |
| Dimension (L x W x H) | 360 x 264 x 400 mm |
| Indication error | ≤ 0.5% |
| Repeatability error | ≤ 0.1% |
| Sample (Size) Length | Diameter ≥ 30 mm / Thickness ≤ 40 mm |
| Indication Drift | ≤ 0.1% |
| Mirror Reflection Error | ≤ 0.1% |
Key Features
- Stimulate D65 illuminator to illuminate
- Adopted with D/0 lighting geometrical viewing conditions
- Determination of brightness stimulation value
- Determine the opacity
- Determination of transparency
- Determination of light scattering coefficient 'S' and optical absorption coefficient 'A'
- Measuring ink absorption value
- Equipped with RS232 interface, with PC connections for data communication
- Use of large screen color touch LCD to view measurement, statistical data
- User-friendly data operations
- Power protection, No loss of data on Power off
Product Description

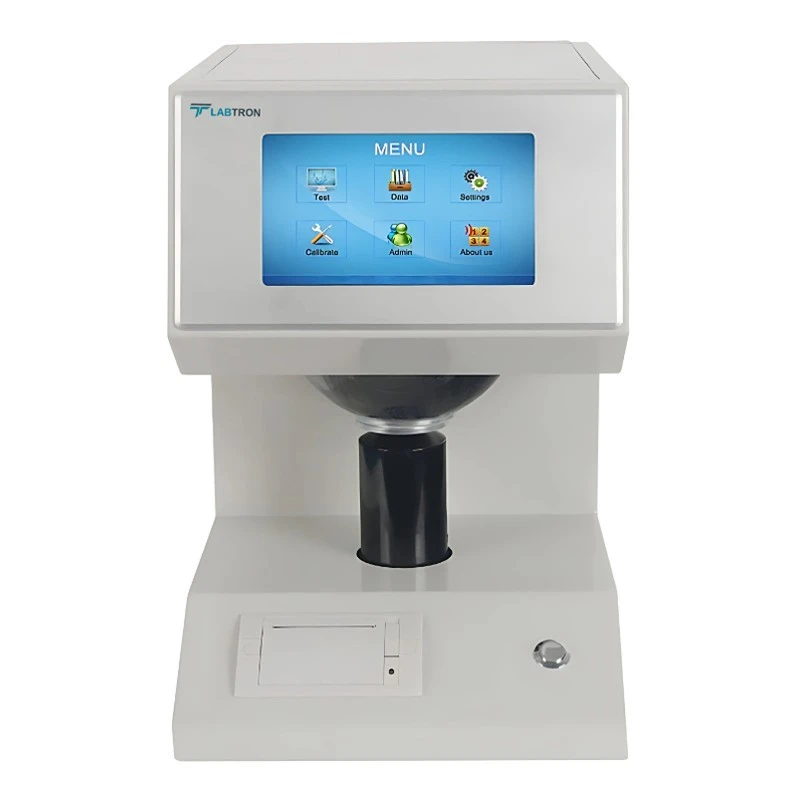

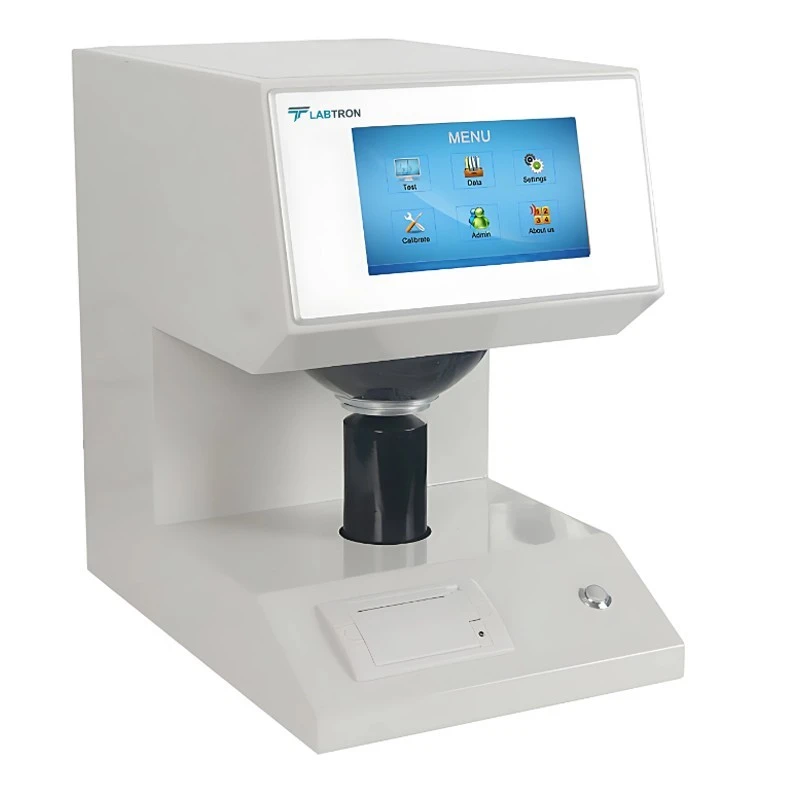

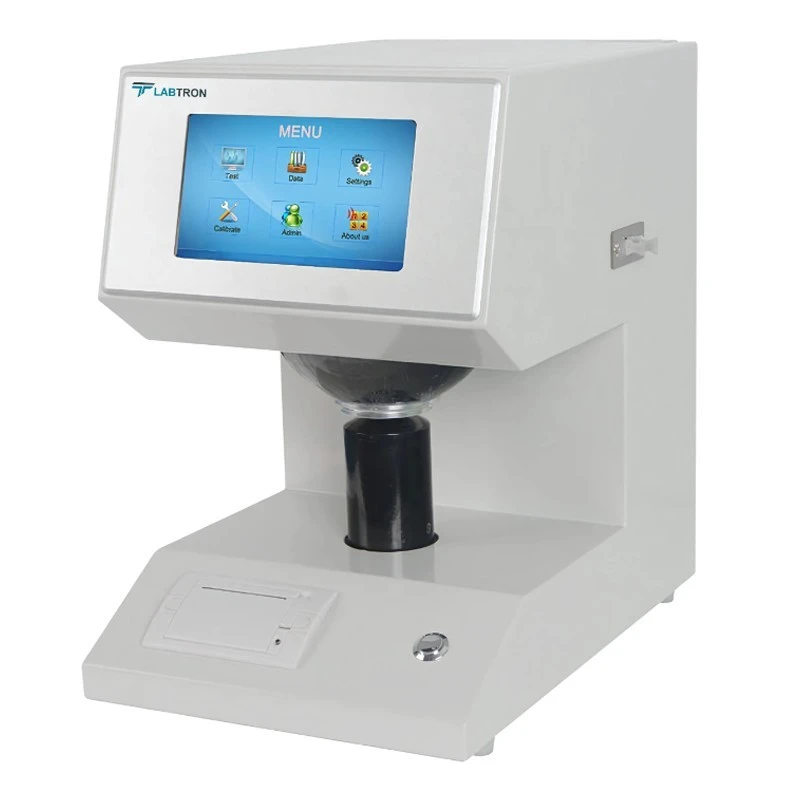

The Whiteness Meter TP-A11 is used to measure the whiteness of objects. Its compact, advanced circuit design ensures the accuracy and stability of measurement data. It measures ISO (R457) whiteness and fluorescence whitening of the materials. The whiteness meter is provided with a light absorber to eliminate the influence of specular reflection of the sample.
Applications:
The Whiteness Meter is widely used to measure whiteness in paperboard, textile printing and dyeing, paint, plastic products, ceramics, enamel, detergent, and cosmetics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TP-A11 measures ISO (R457) whiteness and fluorescence whitening of materials, ensuring accurate readings for various applications.
It requires a power supply of 220 V ± 10% at 50 Hz.
The net weight of this unit is 20 Kg.
It uses a D65 light source for illumination during measurements.
The dimensions are 360 mm in length, 264 mm in width, and 400 mm in height.
The maximum sample thickness that can be measured is 40 mm.
It is provided with a light absorber to eliminate the influence of specular reflection from the sample.
The repeatability error is ≤ 0.1%.
The indication error is ≤ 0.5%.
It operates under D/0 lighting geometrical viewing conditions with a diffuser diameter of 150 mm and a testing hole diameter of 30 mm.
It is suitable for measuring whiteness in paperboard, textile printing and dyeing, paint, plastics, ceramics, enamel, detergent, and cosmetics.
The country of origin is the UK.
