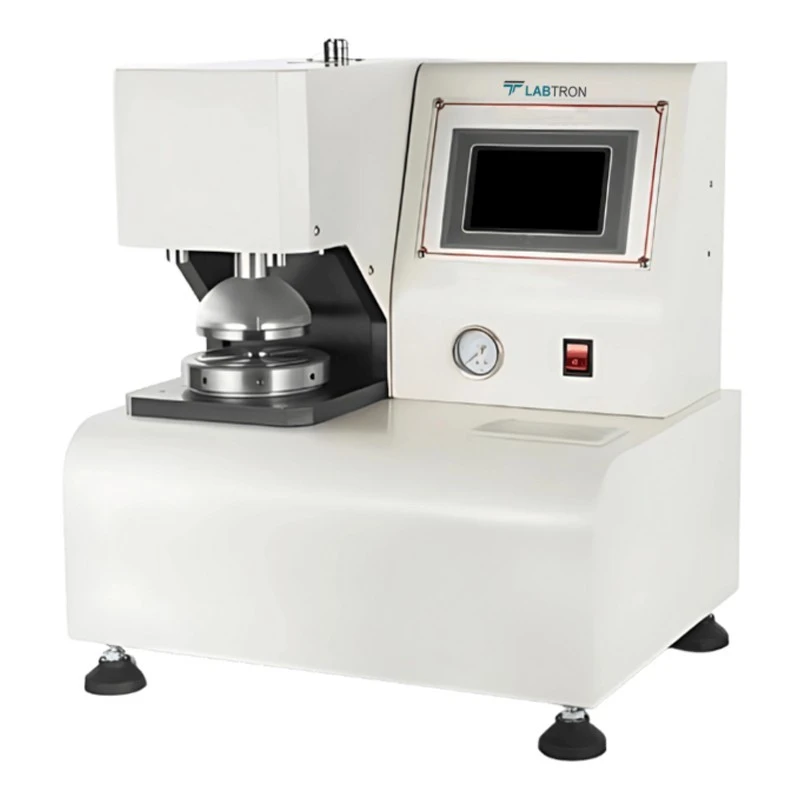

Mullen Burst Tester EMBT-A12
Specifications
| Country of Origin | UK |
|---|---|
| Resolution | 0.1 kPa |
| Display | 3.2 inch 320 × 240 dot matrix LCD Display |
| Measuring range | Standard — 50 to 1200 kPa (paper) / Optional — 250 to 5600 kPa (paperboard) |
| Brand | Generic Brand |
| Model | LMBT-A12 |
| Type of Product | Testing Instrument |
| Clamping Force | 400 kPa to 1200 kPa (adjustable) |
| Permissible Temperature | 20 ± 10°C |
| Permissible Humidity | Up to 85% |
| Indicating Accuracy | Up to ± 0.5% |
| Upper Disk Diameter | 30.5 ± 0.1 mm |
| Lower Disk Diameter | 33.1 ± 0.1 mm |
| Distortion Error | Up to 1 mm |
| Pressure of Adhesive Film Convex Disk | (9 ± 0.2) mm²/(30 ± 5) kPa |
| Oil Delivery Speed | 95 ± 5 mL/min |
| Concentricity of Upper and Lower Discs | Up to 0.25 mm |
| Unit Exchange | Kg/cm² / kPa / lbf/in² |
| Printout | Modular-all-in-one Thermal printer |
Key Features
- High degree of disintegration
- High-precision measurement
- Wide testing range
- Adjustable clamping force
- Multiple unit options
- User-friendly interface
Product Description
The Mullen Burst Tester LMBT-A12 has a measurement range that varies from 50 to 1200 kPa for standard paper, with an optional range of 250 to 5600 kPa for paperboard. It features a 3.2-inch, 320 × 240 dot matrix LCD that provides clear readings. The tester allows recording data curves at regular intervals and also, multiple data sets can be viewed. Additionally, it records the maximum rupture strength value automatically. Our tester measures the bursting resistance of various materials, including single or multi-layer paper, cloth, film, and more.
Applications:
Our Mullen Burst Tester LMBT-A12 measures the bursting resistance of paper, cardboard, textiles, and more, ensuring quality control in packaging and manufacturing. It helps assess material strength for industry compliance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resolution of this unit is 0.1 kPa.
The clamping force can be adjusted between 400 kPa to 1200 kPa.
It features a 3.2-inch, 320 × 240 dot matrix LCD display for clear readings.
The permissible temperature is 20 ± 10°C, and it can operate in humidity levels up to 85%.
The upper disk diameter is 30.5 ± 0.1 mm, while the lower disk diameter is 33.1 ± 0.1 mm.
Yes, it includes a modular all-in-one thermal printer for printouts.
The distortion error is up to 1 mm.
The oil delivery speed is 95 ± 5 mL/min.
It is suitable for quality control in packaging and manufacturing, assessing material strength for industry compliance.
