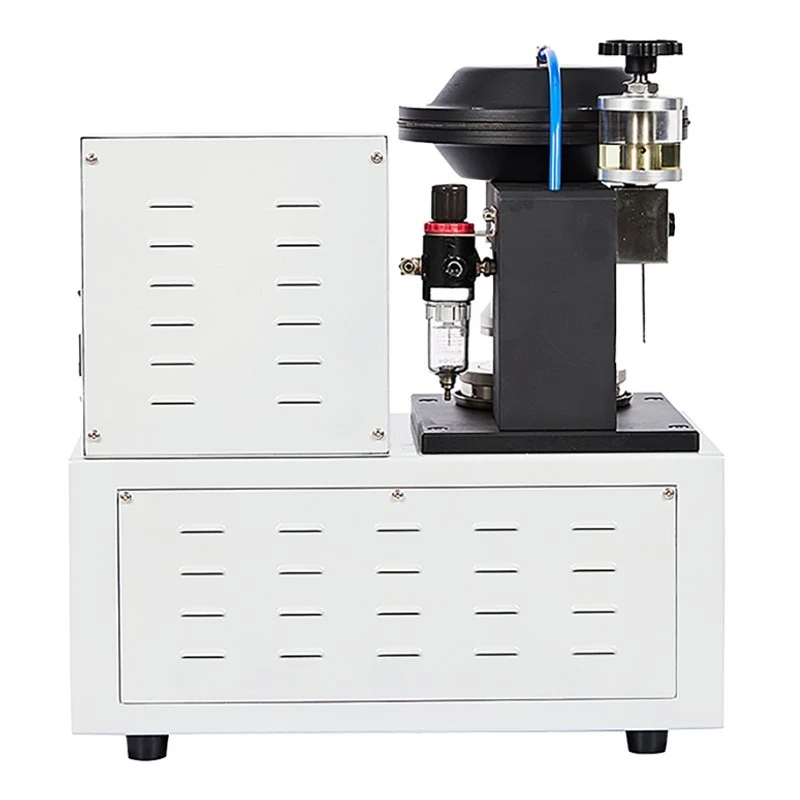

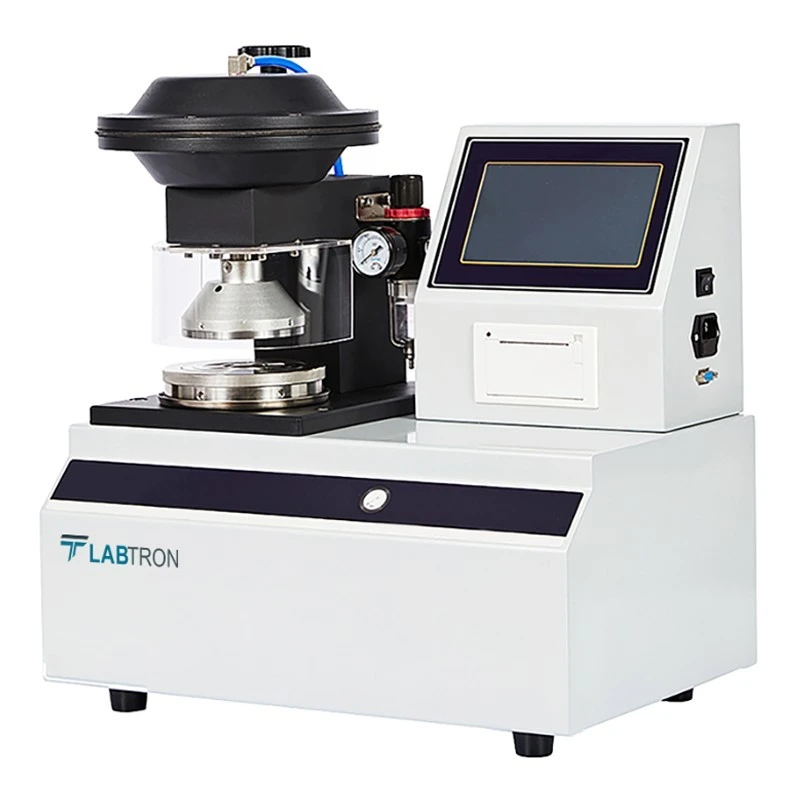

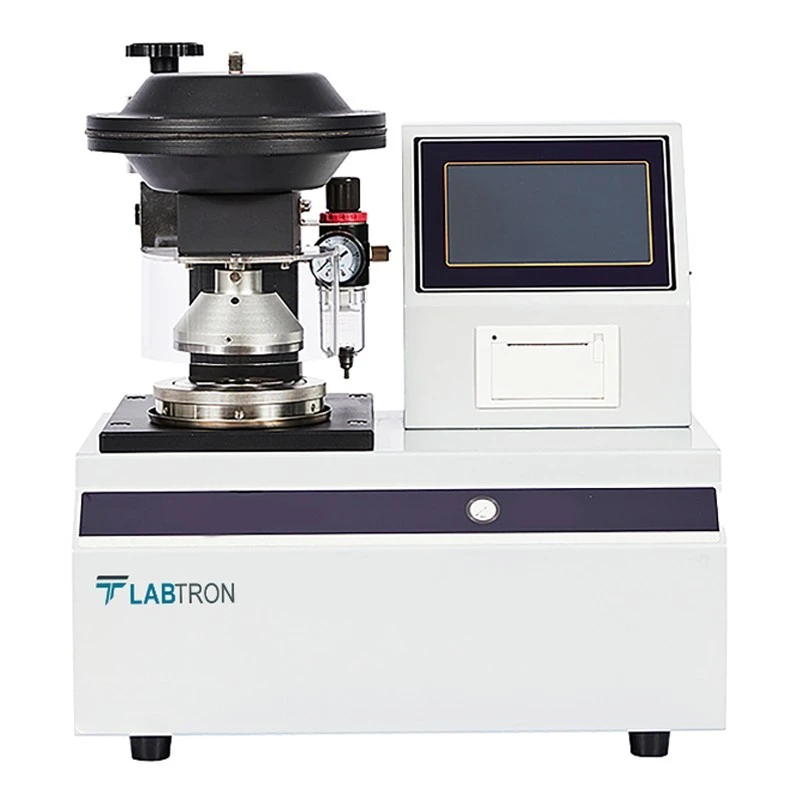

Mullen Burst Tester EMBT-A10
Specifications
| Country of Origin | UK |
|---|---|
| Resolution | 0.1 |
| Measuring range | 50 to 1600 kPa |
| Brand | Generic Brand |
| Power Supply | AC 220V ± 10% / 50Hz / 100W |
| Net Weight | 56 kg |
| Working Environment | 10 to 35°C / Humidity ≤ 85% |
| Model | LMBT-A10 |
| Type of Product | Testing Instrument |
| Dimension (L × W × H) | 460 × 320 × 580 mm |
| Indicating Accuracy | ± 0.5% |
| Compression Rate | 95 ± 5 ml/min |
| Required Compressed Air | 0.6 to 0.7 MPa |
| Air Pressure Regulating | 0.15 MPa |
| Sealing Property of Hydraulic System | Upper limit — 1 min / Pressure drop Less than 10% Pmax |
| Sampler Up Loop Diameter | 30.5 ± 0.05 mm |
| Sampler Down Loop Diameter | 33.1 ± 0.05 mm |
Key Features
- One-click test, easy operation
- Auto measurement, stats, and printing
- Over-range reset for sensor protection
- Supports kPa, kgf/cm², Psi units
- Noiseless thermal printer (inkless)
Product Description
The Mullen Burst Tester LMBT-A10 features a measuring range of 50 to 1600 kPa and an indicating accuracy of ±0.5%, ensuring reliable performance. It incorporates a 32-bit ARM processor for faster data processing. Its 5-inch colour touchscreen offers an intuitive interface with real-time pressure curve display. The automatic clamping system, requiring compressed air, simplifies the testing process. Our tester is robust and accurate, making it an ideal choice for paper testing.
Applications:
The Mullen Burst Tester LMBT-A10 is used to measure the burst strength of all kinds of paper, cardboard, grey board, colour box, and non-paper materials such as aluminium foil, film, rubber, silk, and cotton.
Standard Accessories:
- Diaphragm for Paper: 1 Piece
- Dimethicone: 1 Bottle
Optional Accessories:
- RS232 interface and computer software: 1 Set
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has an indicating accuracy of ±0.5%.
This model requires an AC power supply of 220V ± 10% at 50Hz with a power consumption of 100W.
The dimensions are 460 × 320 × 580 mm and it weighs 56 kg.
This unit requires compressed air at a pressure of 0.6 to 0.7 MPa.
It operates effectively in a working environment of 10 to 35°C with humidity levels not exceeding 85%.
Included accessories are one diaphragm for paper and one bottle of dimethicone.
The compression rate is 95 ± 5 ml/min.
The automatic clamping system simplifies the testing process and requires compressed air for operation.
