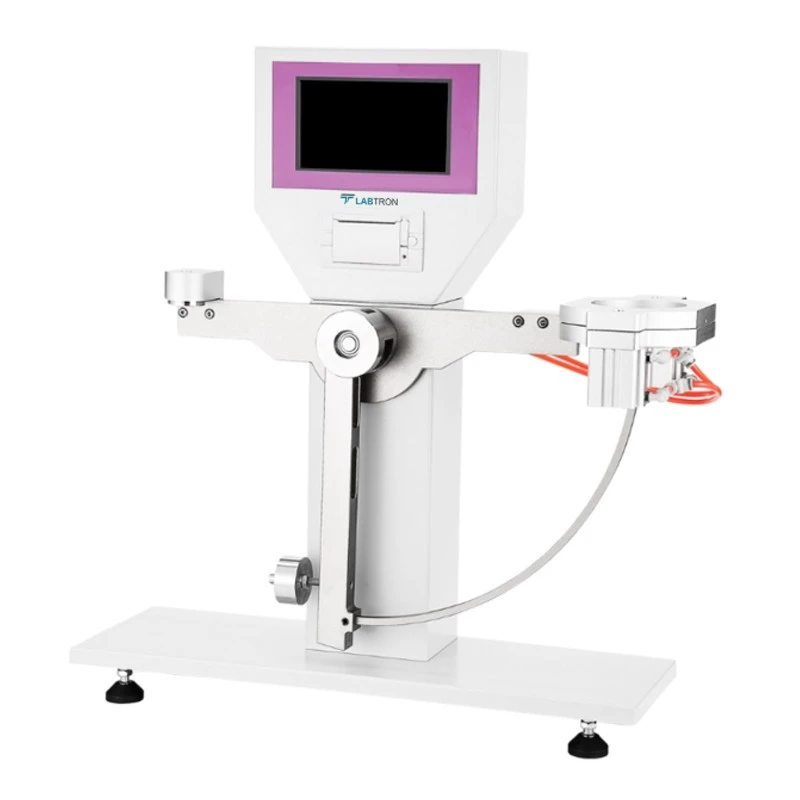

Pendulum Impact Tester EIPT-A11
Specifications
| Country of Origin | UK |
|---|---|
| Resolution | 0.001 J |
| Display | LCD |
| Brand | Generic Brand |
| Dimension | 580 x 380 x 580 mm |
| Model | LIPT-A11 |
| Type of Product | Testing Instrument |
| Impact energy | Standard — 1 J / 2 J / 3 J | Customizable — Up to 5 J |
| Required Sample Size | 100 x 100 mm or Φ 100 mm |
| Punch Size | Φ 25.4 mm / Φ 12.7 mm |
| Sample Clamp Diameter | Φ 60 mm / Φ 89 mm |
Key Features
- Microcomputer control
- Statistical data storage
- Sample pneumatic clamping
- Micro printer functionality
- Standard and customizable punch sizes
- Compact design
Product Description
The Pendulum Impact Tester LIPT-A11 is an electronic tester and supports impact energy levels of 1J, 2 J, and 3 J as standard, with customization options up to 5 J. It operates based on a hemispherical punch that impacts and passes through the film sample at a set speed. The tester incorporates electronic measurement, and an electric release mechanism for the pendulum. Additionally, it features an LCD for display and allows for level adjustments. Our tester is used to measure the impact toughness of plastic, rubber, metal foil, and other thin film materials.
Applications:
Our Pendulum Impact Tester LIPT-A11 evaluates the impact resistance and toughness of plastic films, rubber sheets, metal foils, and other thin materials. It is widely used in quality control, material research, and production testing in industries such as packaging, automotive, and electronics.
Standard Accessories:
- 3 J basic pendulum ×1
- Counterweight ×1
- Φ 25.4 mm Standard punch ×1
- Φ 12.7 mm Standard punch counter ×1
- Φ 60 mm Standard test splint pair (including O-ring) ×1
- Φ 89 mm Standard test splint pair (including O-ring) ×1
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports standard impact energy levels of 1 J, 2 J, and 3 J, with customization options available up to 5 J.
This tester is used to measure the impact toughness of plastic films, rubber sheets, metal foils, and other thin film materials.
The dimensions of this unit are 580 x 380 x 580 mm.
The resolution of the impact energy measurement is 0.001 J.
It features an LCD display for easy viewing of measurements and settings.
The required sample size is 100 x 100 mm or Φ 100 mm.
It includes standard punch sizes of Φ 25.4 mm and Φ 12.7 mm.
The sample clamp diameter options are Φ 60 mm and Φ 89 mm.
The tester operates based on a hemispherical punch that impacts and passes through the film sample at a set speed, with electronic measurement and an electric release mechanism.
It is widely used in quality control, material research, and production testing in industries such as packaging, automotive, and electronics.
The country of origin for this product is the UK.
