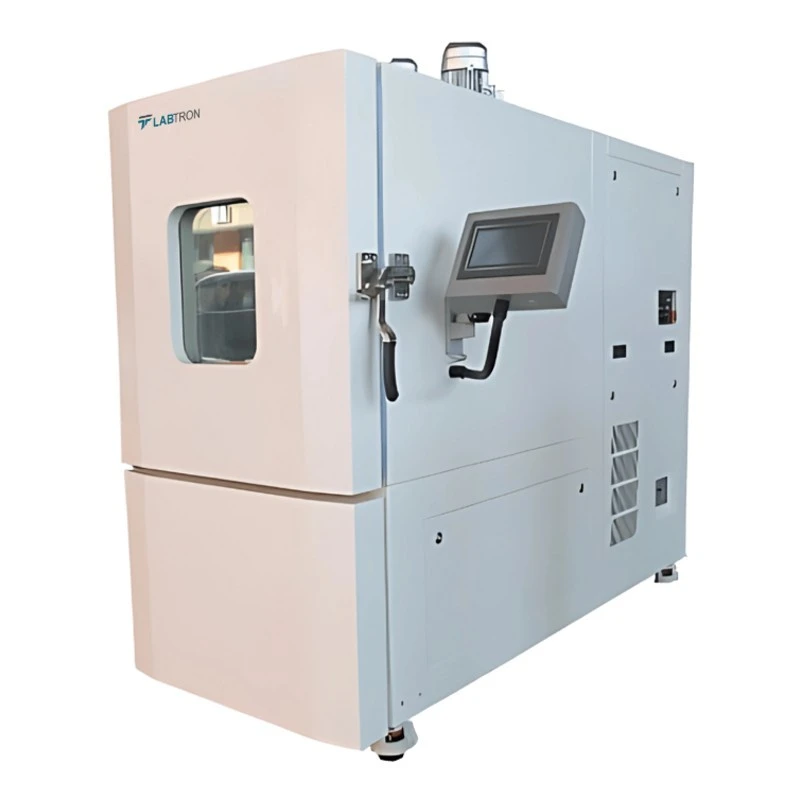

Temperature and Humidity Test Chamber ETHC-F10
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Power Supply | AC380V±10% / 50Hz / three-phase four-wire + earth wire / ground resistance Less than 4Ω |
| Temperature range | -70°C to +150°C (Optional — -80°C to +180°C) |
| Model | LTHC-F10 |
| Temperature Sensor | Pt100 |
| COOLING MODE | Air Cooling |
| Type of Product | Environmental Test Chamber |
| Blower | Centrifugal blower |
| Humidity range | 20% to 98% R.H. (Optional — 10% R.H.) |
| Communication Interface | RS485 / USB / LAN (Optional) |
| Refrigerant | R404A/R23 |
| Heater | Nickel-chromium alloy heating wire |
| Temperature Uniformity | ≤2.0°C |
| Controller | Programmable LCD touchscreen |
| Internal Material | SUS304 Stainless steel |
| Internal Volume | 64 L |
| Temperature Deviation | ±2.0°C |
| Observation window | 240×240 mm or 260×350 mm |
| Shell Material | Cold rolled sheet steel / spray plastics on surface |
| Working Environment Temperature | 5°C to +35°C |
| Temperature Fluctuation | ±0.5°C |
| Temperature Control Mode | BTHC — Balanced temperature & humidity control system |
| Humidity deviation | ±2% to ±3% (≤75% RH / ±5% R.H.) |
| Thermal Insulation Material | Glass wool or polyurethane foam |
| Refrigeration Mode | Mechanical compression / two-stage refrigeration |
| Internal Dimensions (DxWxH) | 400×400×400 mm |
| External Dimensions (DxWxH) | 1250×900×1300 mm |
| Humidifier | SUS304 Stainless Steel |
| Heating & Cooling Rate | ≥1°C/min (5°C to +85°C) |
| Testing Hole | Ø80mm / silicone rubber sealing plug with metal cap (Optional) |
Key Features
- Balanced temperature & humidity control
- Programmable LCD touchscreen interface
- Two-stage mechanical refrigeration
- SUS304 stainless steel internal chamber
- Multiple communication interfaces
- Energy-efficient refrigeration system
- Rapid temperature stabilization
- Over-temperature protection system
Product Description
Temperature and Humidity Test Chamber LTHC-F10 includes a 64 L internal volume, providing ample space for controlled environmental testing. It operates within a temperature range of -70°C to +150°C, supporting versatile applications. The chamber maintains stable conditions with humidity control from 20% to 98% R.H. A viewing window enables easy monitoring without disturbing internal conditions. This test chamber is ideal for quality assessment and reliability testing in various industries.
Applications :
Our Temperature and Humidity Test Chamber LTHC-F10 tests material durability under extreme temperature and humidity variations. It is used in electronics, automotive, aerospace, and research labs for stability assessment.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a temperature range of -70°C to +150°C, with an optional range of -80°C to +180°C.
The humidity range is from 20% to 98% relative humidity, with an optional setting down to 10% R.H.
It requires an AC380V±10% power supply at 50Hz, using a three-phase four-wire system with an earth wire.
The internal chamber is made of SUS304 stainless steel, and the humidifier is also constructed from SUS304 stainless steel.
Temperature stability is maintained with a uniformity of ≤2.0°C and a fluctuation of ±0.5°C.
It utilizes a mechanical compression two-stage refrigeration system for cooling.
The external dimensions are 1250 mm in depth, 900 mm in width, and 1300 mm in height.
It includes USB and LAN communication interfaces, with optional configurations.
It employs a Pt100 temperature sensor for accurate temperature measurements.
The heating and cooling rate is ≥1°C/min when transitioning from 5°C to +85°C.
The observation window, measuring either 240×240 mm or 260×350 mm, allows for easy monitoring of the internal conditions without disruption.
