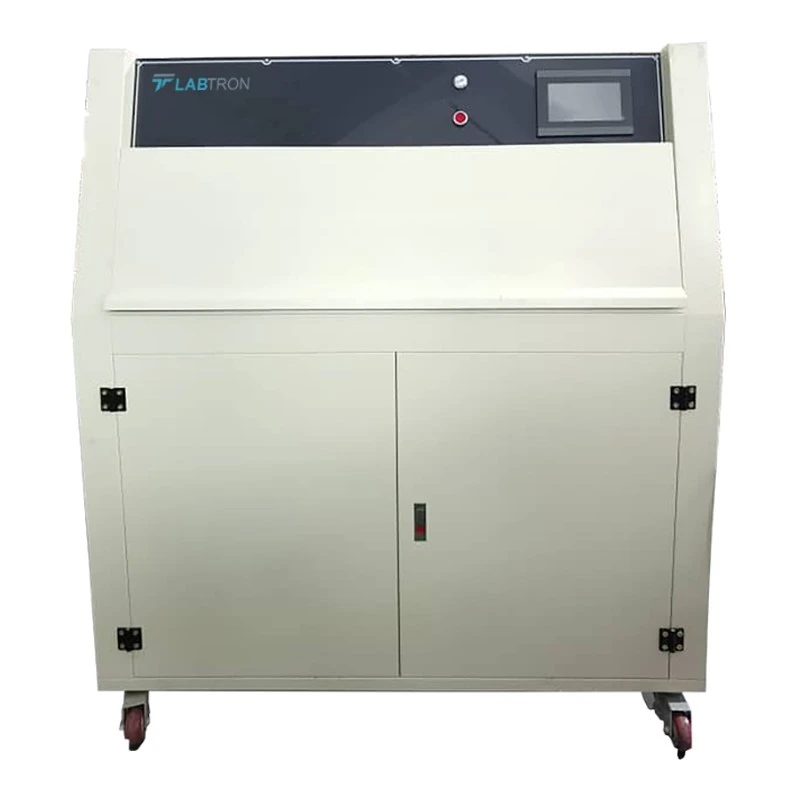

UV Test Chamber EUVC-A10
Specifications
| Country of Origin | UK |
|---|---|
| Power Consumption | 1800W |
| Brand | Generic Brand |
| Power Supply | 120V/60Hz / 16A or 230V/50Hz / 9A |
| Temperature range | 30°C to 70°C |
| Model | LUVC-A10 |
| Weight | 136 Kg |
| Standard | ASTM G153-77 / AATCC / ISO 4892-2 etc. |
| Type of Product | Environmental Test Chamber |
| Humidity range | 90.0% RH to 98% RH |
| Water | Distilled water |
| Water Consumption | 8 Liters/day |
| Dimension (W × D × H) | 1370 × 530 × 1360 mm |
| Rain time | 0 to 1000 min |
| Irradiance range | 0.1 W/m² to 1.0 W/m² |
| Lamp Quantity | 8 UV lamps |
| Lamp Lifetime | Greater than 1600 hours |
| UV Temperature Range | 45°C to 70°C |
| Black Temperature Range | RT +10°C to 80°C |
| Rain Interval | 0 to 1000 min |
| Testing Capacity & Sample Size | 48 pieces (75 × 150 mm) / 50 pieces (75 × 150 mm) |
Key Features
- Optional Radiometer available
- Utilizes a single-cycle air duct system
- Enhanced by an imported axial flow fan
- The tank cover features a double-flip design
- Incorporates an automatic water filling system
- A sample frame is crafted from either stainless steel
- High-quality PU wheels at the bottom
- Includes an internal automatic sprinkler spray system
Product Description
UV Test Chamber LUVC-A10 is equipped with special UV lamps, arranged in two rows with 8 lamps per row, each rated at 40W. Operates within a temperature range of 45°C to 70°C. The chamber body is constructed with high-quality 1.2mm thickness 304SUS stainless steel. Our chamber utilizes a U-type drainage device for efficient water drainage. It employs a bladder tank heating method, enabling rapid heating and uniform temperature distribution.
Applications :
UV test chambers are used to assess how materials withstand sunlight, rain, and dew, predicting their long-term durability. They help industries like automotive, aerospace, and construction ensure their products can withstand outdoor conditions.
Standard Accessories :
- UVA 340 - 8 pieces
Optional Accessories :
- UVB 313 Lamp
- UVC 351 Lamp
- Calibration meter
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a temperature range of 30°C to 70°C.
It is equipped with 8 UV lamps, each rated at 40W.
The humidity range for this chamber is from 90.0% RH to 98% RH.
The dimensions of this model are 1370 mm in width, 530 mm in depth, and 1360 mm in height.
The power consumption is 1800W.
This unit weighs 136 kg.
The irradiance range is from 0.1 W/m² to 1.0 W/m².
It complies with standards such as ASTM G153-77, AATCC, and ISO 4892-2.
Standard accessories include 8 pieces of UVA 340 lamps, with optional accessories available such as UVB 313 and UVC 351 lamps.
It can accommodate 48 pieces of samples sized 75 × 150 mm or 50 pieces of the same size.
