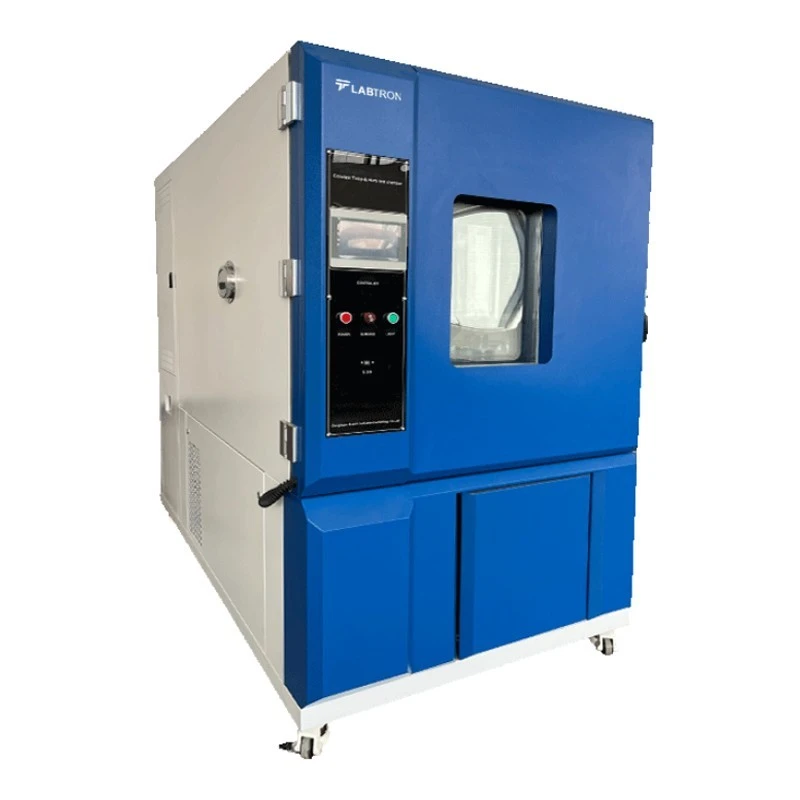

Temperature and Humidity Test Chamber ETHC-C30
Specifications
| Country of Origin | UK |
|---|---|
| Temperature Accuracy | ±0.5°C |
| Humidity accuracy | ±5% RH |
| Display | Standard TATO 7" LCD touchscreen |
| Capacity | 550L |
| Brand | Generic Brand |
| Power Supply | 380V / 50Hz |
| Current | 14A |
| Temperature range | 10°C to 80°C |
| Model | LTHC-C30 |
| Load Capacity | 20 kg |
| Weight | 700kg |
| Door | Single door / single window |
| Outer Material | Cold-rolled steel sheet with electrostatic coating |
| Inner Material | SUS 304 stainless steel 1.2mm |
| Insulation | Ultra-fine glass fiber insulation cotton / rigid polyurethane foam |
| Ambient Temperature (ºC) | 0°C to 35°C |
| Type of Product | Environmental Test Chamber |
| Humidity range | 20% to 98% RH |
| Compressor | Original hermetic compressor |
| Display Resolution | Temperature — 0.1°C / Humidity — 0.1% RH |
| Heating Rate | ≥2°C/min |
| Heater | Ceramic stainless steel electric heater |
| Temperature Uniformity | ±2°C |
| Safety Protection | Dry Burn Alarm | Water Shortage Alarm | Electric Leakage Protection | Phase Sequence Protection |
| Cooling Rate | ≤2°C/min |
| Ambient humidity | Greater than 80% RH |
| Insulation Thickness | 100mm |
| Cooling Method | Air cooling |
| Lighting System | LED |
| Total Power | 7KW |
| Operating Power | 5KW |
| Observation window | With defrosting & de-fogging device |
| Temperature Fluctuation | ±0.5°C |
| Internal dimension (W x D x H) | 810 x 800 x 850mm |
| External dimension (W x D x H) | 1800 x 1300 x 2200 mm |
| Other functions | Self-Diagnosis | Auto Power Off | Compressor Overheat Protection | Overload Protection |
| Humidifier | Stainless steel armour humidifier |
| Insulation Coefficient | 0.22 W/m.k |
| Program Capacity | 269 Patterns / 13450 Segments |
| Running Method | Fix mode & Program mode |
| Lead Hole Size | φ50mm |
| Sample Holder | 2 layers with adjustable height |
| Chamber Protection | Dry Burn Alarm | Water Shortage Alarm |
| Fan Protection | Fan protection |
Key Features
- Buckle-pull structure and single-opening door handle
- Includes four mobile casters (with foot cups)
- Installed LED light for light source
- Furnished with drainage apertures for the removal of condensate
- 2 layered stainless steel sample rack
- Automatic water supply with a water pump
- PID temperature and humidity balance control method
Product Description
Temperature and Humidity Test Chamber LTHC-C30 can precisely control temperature levels within a predefined range, typically from 10℃ to 80℃. It accommodates up to 550L capacity with two sample holding layers. Equipped with humidity control systems, it can create varying humidity levels with a range of 20% to 98% RH. Equipped with a color 7-inch LCD touchscreen temperature and humidity controller. Provided with mechanical single-stage refrigeration for cooling mechanism.
Applications :
The Temperature & Humidity Test Chamber is suitable for quality inspection across a broad spectrum of industries, including electronics, electrical appliances, automotive, plastics, metals, food, chemicals, building materials, medical devices, and aerospace products.
Standard Accessories :
- Operation Manual and Maintenance Manual: 1 Set
- A list of accessories for test equipment: 1 Set
- Sample Rack: 2 Sets
- Shelf Hooks: 8 Pieces
- Test Wet Cloths: 1 Pack
- Test Hole Silicone Plug: 1 piece
Optional Accessories :
- HMI With Controller
- Humidity Sensor
- Temperature Sensor
- Fan Motor
- Wet Cloth
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can control temperature levels from 10°C to 80°C.
The chamber can create humidity levels ranging from 20% to 98% RH.
The temperature accuracy is ±0.5°C.
It requires a power supply of 380V / 50Hz.
The external dimensions are 1800 x 1300 x 2200 mm.
The outer material is cold-rolled steel sheet with electrostatic coating, while the inner material is SUS 304 stainless steel 1.2mm.
It is equipped with an original hermetic compressor for its cooling mechanism.
Safety features include a dry burn alarm, water shortage alarm, electric leakage protection, and phase sequence protection.
The unit weighs 700 kg.
It features a standard TATO 7" LCD touchscreen for monitoring and control.
