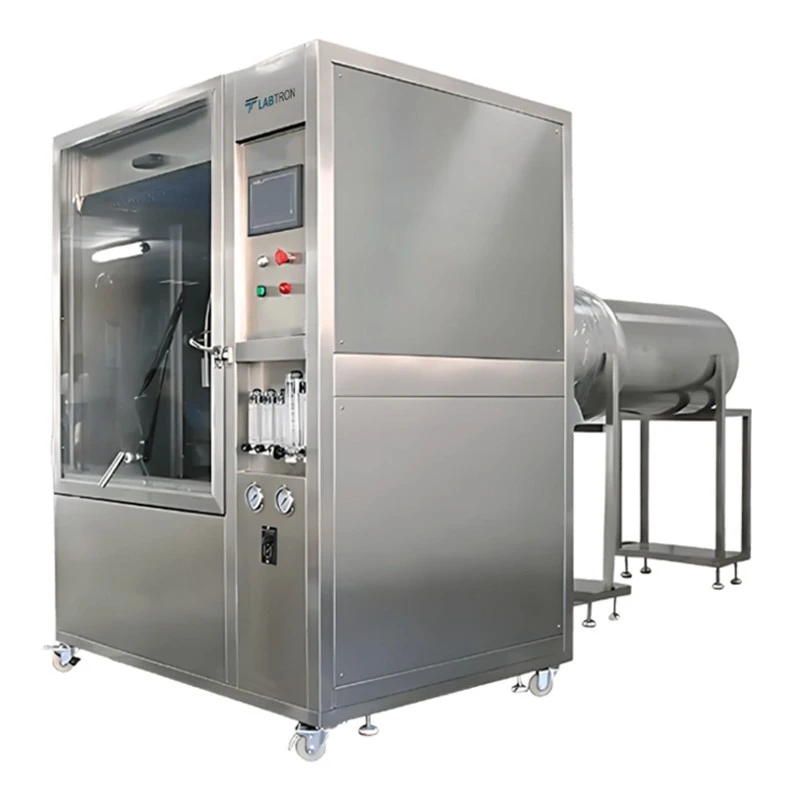

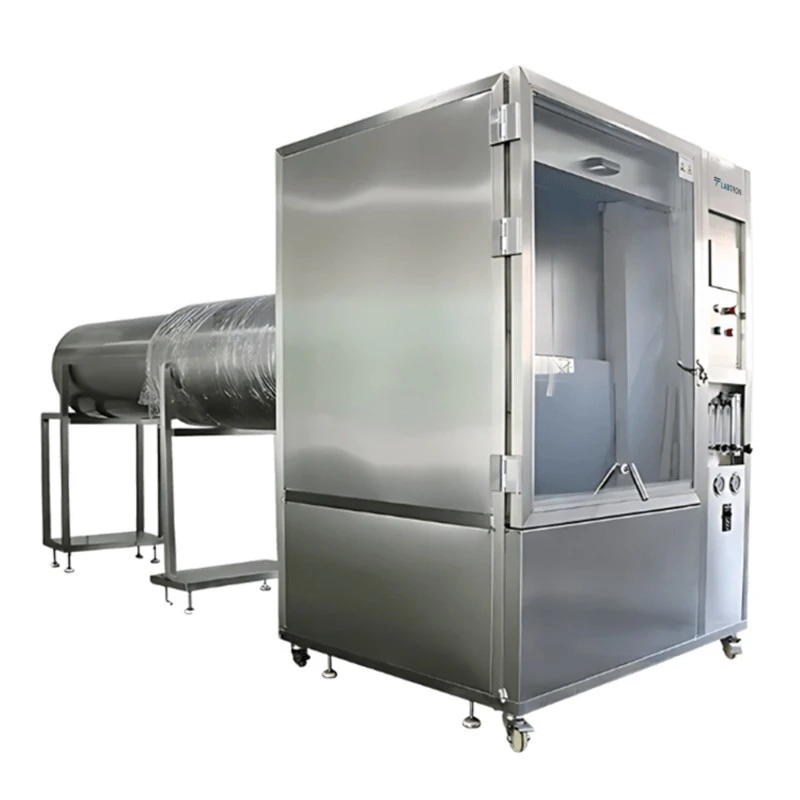

Rain Test Chamber ERTC-A12
Specifications
| Country of Origin | UK |
|---|---|
| Power Consumption | 220 V/3 KW |
| Relative Humidity | ≤85% RH |
| Brand | Generic Brand |
| Model | LRTC-A12 |
| Type of Product | Environmental Test Chamber |
| Test Time | 1S to 9999H59M59S |
| Environmental Temperature | 5°C to 40°C |
| External Dimensions (W × D × H) | 1200 × 1500 × 1950 mm |
| Internal Dimensions (W × D × H) | 1000 × 1000 × 1000 mm |
| Swing Amplitude | Max ±180° |
| Swing Pipe | 400 mm |
| Test Bench Speed | 1 to 3 r/min |
| Size of Spray Aperture | 0.4 mm |
| Space of Spray Aperture | 50 mm |
| Flow of Spray Aperture (L/min) | 0.07 L/min ±5% |
| Water Spray Pressure | 80 to 150 Kpa |
| Swing Angle Range of Spray Pipe | 120° / 320° |
| Nozzle Angle | 120° (IPX3) / 180° (IPX3) |
| Swing Angle | 120° (IPX3) / 180° (IPX3) |
| Swing Speed of Spray Pipe | IPX3 — 15/min | IPX4 — 5/min |
| Turntable Load | 20 kg |
| Turntable Diameter | 500 mm |
| Adjustable Turntable Height | 100 mm |
Key Features
- Precision control system
- Reliable leakage protection
- Advanced circuit protection
- Smart touch screen controller
- Independent control mechanism
Product Description
Rain Test Chamber LRTC-A12 swing pipe of 400 mm ensures efficient water flow and optimal test coverage for reliable performance. The adjustable shelving system provides flexibility, allowing users to customize storage and positioning based on testing requirements. Its even heat distribution guarantees uniform temperature levels throughout the chamber, ensuring precise and consistent results. Our rain test chamber has spark-free components that enhance safety by preventing electrical hazards, making the system ideal for sensitive applications in controlled environments.
Applications :
Rain Test Chamber LRTC-A12 is specialized testing equipment that evaluates water resistance by simulating rainfall, splashing, and heavy downpour conditions. It ensures compliance with IP waterproofing standards for testing electronics and automotive components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The environmental temperature range for this model is from 5°C to 40°C.
The external dimensions are 1200 mm in width, 1500 mm in depth, and 1950 mm in height.
The power consumption is 220 V with a total of 3 KW.
The swing amplitude of the spray pipe is a maximum of ±180°.
The flow rate of the spray aperture is 0.07 L/min ±5%.
The maximum load capacity of the turntable is 20 kg.
The size of the spray aperture is 0.4 mm.
The internal dimensions are 1000 mm in width, 1000 mm in depth, and 1000 mm in height.
The water spray pressure range is between 80 to 150 Kpa.
This model is specialized for testing water resistance by simulating rainfall, splashing, and heavy downpour conditions, ensuring compliance with IP waterproofing standards.
