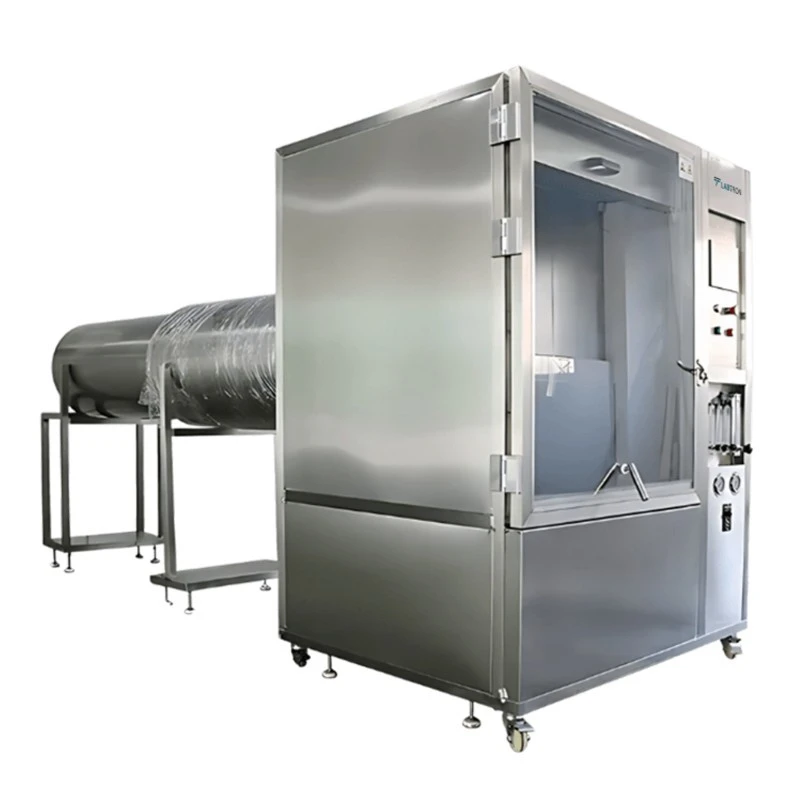

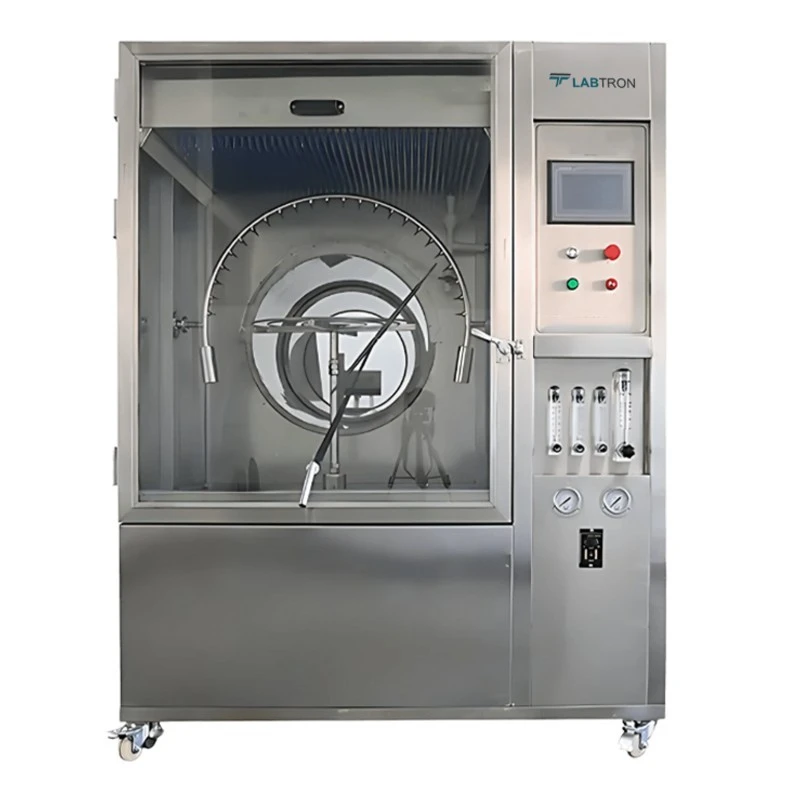

Rain Test Chamber ERTC-A10
Specifications
| Country of Origin | UK |
|---|---|
| Power Consumption | 220 V/3 KW |
| Relative Humidity | ≤85% RH |
| Brand | Generic Brand |
| Model | LRTC-A10 |
| Type of Product | Environmental Test Chamber |
| Test Time | 1S to 9999H59M59S |
| Environmental Temperature | 5°C to 40°C |
| External Dimensions (W × D × H) | 900 × 1080 × 1650 mm |
| Internal Dimensions (W × D × H) | 600 × 600 × 600 mm |
| Swing Amplitude | Max ±180° |
| Swing Pipe | 200 mm |
| Test Bench Speed | 1 to 3 r/min |
| Size of Spray Aperture | 0.4 mm |
| Space of Spray Aperture | 50 mm |
| Flow of Spray Aperture (L/min) | 0.07 L/min ±5% |
| Water Spray Pressure | 80 to 150 Kpa |
| Swing Angle Range of Spray Pipe | 120° / 320° |
| Nozzle Angle | 120° (IPX3) / 180° (IPX3) |
| Swing Angle | 120° (IPX3) / 180° (IPX3) |
| Swing Speed of Spray Pipe | IPX3 — 15/min | IPX4 — 5/min |
| Turntable Load | 20 kg |
| Turntable Diameter | 300 mm |
| Adjustable Turntable Height | 100 mm |
Key Features
- Automated test cycles
- User-friendly interface
- High-pressure water jets
- Energy-efficient operation
- Customizable test settings
Product Description
Rain Test Chamber LRTC-A10 has a swing pipe of 200 mm for efficient water flow, ensuring optimal performance during testing. The adjustable spray angles allow users to customize water distribution for accurate and controlled testing conditions. The corrosion-resistant build enhances durability, ensuring long-term use even in harsh environments. Our rain test chamber's precision rain simulation replicates real-world rainfall scenarios, making it ideal for waterproof testing applications.
Applications :
Rain Test Chamber LRTC-A10 is specialized testing equipment that evaluates water resistance by simulating rainfall, splashing, and heavy downpour conditions. It ensures compliance with IP waterproofing standards for testing electronics and automotive components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The environmental temperature range for this model is 5°C to 40°C.
The external dimensions are 900 mm in width, 1080 mm in depth, and 1650 mm in height.
The power consumption is 220 V with a total of 3 KW.
The flow rate of the spray aperture is 0.07 L/min ±5%.
The size of the spray aperture is 0.4 mm.
The swing amplitude of the spray pipe is a maximum of ±180°.
The maximum load capacity of the turntable is 20 kg.
The water spray pressure range is between 80 to 150 Kpa.
The relative humidity capability is ≤85% RH.
This model is specialized for waterproof testing applications, simulating rainfall, splashing, and heavy downpour conditions to ensure compliance with IP waterproofing standards.
