Drug Stability Test Chamber EDST-A24
Specifications
| Country of Origin | UK |
|---|---|
| Relative Humidity | ≤85% RH |
| Brand | Generic Brand |
| Power Supply | 220 V / 50 Hz / 380 V / 50 Hz |
| Net Weight | 570 Kg |
| Temperature range | 0°C to 100°C |
| Model | LDST-A24 |
| Temperature Sensor | PTR Platinum Resistance PT100 Ω/MV / A-class / accuracy 0.001°C |
| Gross Weight | 630 kg |
| Ambient Temperature (ºC) | 5°C to +35°C |
| Type of Product | Environmental Test Chamber |
| Humidity range | 20% to 98% RH |
| Humidity Sensor | Dry and wet bulb sensor |
| Heating element | Nichrome heater |
| Cooling System | Mechanical compression refrigeration system |
| Heating Rate | 3°C / min |
| Refrigerant | R404A / R23 |
| Air Circulation | Centrifugal wind fan |
| Controller | Programmable color LCD touch screen / Ethernet connection / PC Link |
| Cooling Rate | 1°C / min |
| External Dimension | 1500 × 1550 × 2110 mm |
| Internal Dimension | 1000 × 1000 × 1000 mm |
| Standard Configuration | 1 Cable hole (φ50) / with plug | 2 shelves |
| Heat Load | 1000 W |
| Observation window | Interior lighting / double-layer thermo stability silicone rubber sealing |
| Temperature Fluctuation | ±0.5°C |
| Exterior Material | Steel Plate with protective coating |
| Interior Material | SUS304 stainless steel |
| Maximum Noise | 65 dBA |
| Thermal Insulation | Polyurethane foam and insulation cotton |
| Interior Volume | 1000 L |
| Temperature Deviation in Time | ±2.0°C |
| Humidity Deviation in Time | ±2.5% RH |
| Refrigerating Unit | French TECUMSEH compressor |
| Water Supply System | Automatic water supply / water purification system |
| Humidifier | External isolation / stainless steel surface evaporation humidifier |
| Dehumidification | Evaporator |
| Built-in Water Tank | 270 × 300 × 450 mm |
| View Window Size | 300 × 370 mm |
Key Features
- Designed with PID controller system to control main unit, temperature system and Display
- Double layer insulating glass 8 cm thick, made of tempered glass
- Internal material designed with mirror surface finishing, 304 stainless steel which is rust proof, corrosion resistance
- Heat load can absorb 1000 W in -20℃
- Built-in LED light for the working room light which clearly observe samples
- The filter element is suggested to be replaced once a year
- Water re-circulation system consisting of water purifier which purifies sourced water to water tank, reduces water use and series of pipes
- Designed with PT-100 sensor, real time accurate detection and display of temperature
- Wet gauze and a real-time temperature, converted by temperature difference, show real-time relative humidity
- LCD display, which can display test conditions
- Equipped with automatic humidification, which automatically heated by the humidification tank
- High and low temperature corrosion resistance external material is made up of A3 steel plate with galvanized coating
Product Description

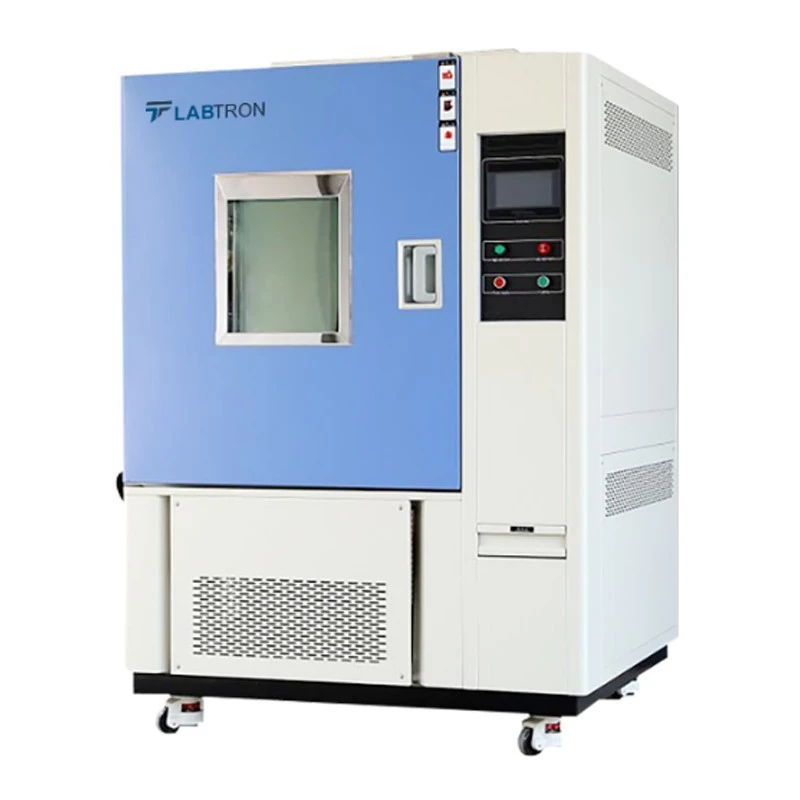

Drug Stability Test Chamber LDST-A24 is designed with a 1000 L internal capacity volume. It offers 20 to 98 % RH humidity range and temperature ranges from 0 ℃ to 100 ℃. Designed to simulate constant climatic conditions for testing a wide variety of pharmaceutical raw drug material or finished drug products for their quality, performance, shelf life, and stability. It features a conductive film located on the interior glass (of double layer 8 cm thick insulation glass) to prevent window frosting, and a built-in LED light for workroom lighting to clearly observe samples. A good temperature humidity chamber is essential for evaluating potential success or failure of a product in the field.
Applications :
Drug Stability Test Chamber is used in the food industry, advanced research, pharmaceutical drug stability testing, chemical industries, and for testing products related to aerospace, electronics, automobiles, and environmental stress screening.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a temperature range of 0°C to 100°C, allowing for a wide variety of testing conditions.
The chamber supports a humidity range from 20% to 98% RH, making it suitable for various stability testing applications.
The external dimensions are 1500 mm in width, 1550 mm in depth, and 2110 mm in height.
It features an automatic humidification system that uses a stainless steel surface evaporation humidifier for effective humidity management.
The maximum noise level is 65 dBA, ensuring relatively quiet operation during testing.
The interior is made of SUS304 stainless steel, while the exterior consists of a steel plate with a protective coating.
It requires a power supply of 220 V / 50 Hz or 380 V / 50 Hz, accommodating different electrical setups.
The heating rate is 3°C per minute, while the cooling rate is 1°C per minute, allowing for efficient temperature adjustments.
The built-in LED light is designed to illuminate the working area, enabling clear observation of samples during testing.
The water supply system includes an automatic water supply and purification system that reduces water usage and maintains optimal conditions.
