Dispensing Peristaltic Pump EDPP-D10
Specifications
| Country of Origin | UK |
|---|---|
| Power Consumption | Less than 60 W |
| Relative Humidity | Less than 80 % |
| Brand | Generic Brand |
| Power Supply | AC 220 V ±10 % / 50 Hz / 60 Hz |
| Model | LDPP-D10 |
| Weight | 6.5 KG |
| Ambient Temperature (ºC) | 0 ~ 40 °C |
| Type of Product | Peristaltic Pump |
| Speed Range | 0.1 ~ 150 rpm |
| Flow range | 0.00011 ~ 1700 mL/min |
| IP grade | IP 31 |
| Flow Accuracy | 0.5 % |
| No Of Channel | 24 |
| Dimensions (L × W × H) | 285 × 250 × 195 mm |
| Speed Resolution | 0.1 rpm |
Key Features
- Operational modes : Volume Dispense, Time Dispense, Copy Dispense and Flow Mode
- LCD display for monitoring parameters
- Anti-drip function ensuring dispense accuracy
- Automatic storage of 5 group parameters in 3 working modes
- Speed resolution : 0.1 rpm
- Adjustable rotating speed
- Intelligent temperature control minimizing working noise
- Reversible operation allowing pumping in both directions
- Multi channels with interchangeable pump heads for varied applications
- Easy liquid auto dispension by time or volume
- Internal double layer isolation
- Dust and moisture proof circuit board
- Optional remote infrared control
- Robust and protected with ABS plastic housing
- Low noise operation
Product Description

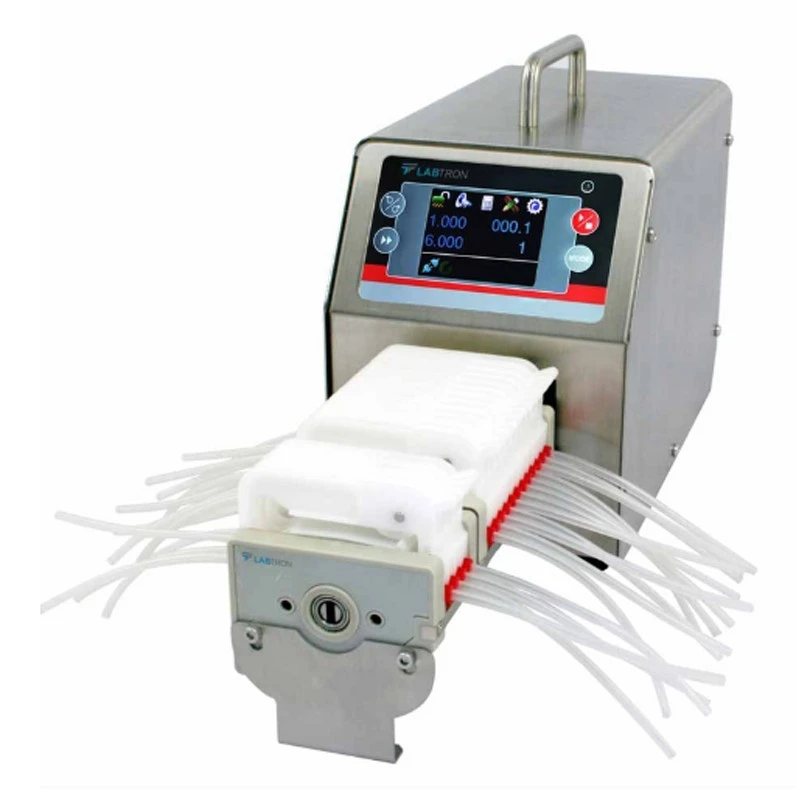

Dispensing Pump LDPP-D10 is a twenty-four channeled pump equipped with a touch screen controller that allows for real-time parameter monitoring and speed adjustment. It includes advanced features such as flow rate calibration, anti-drip function, and four operational modes to enhance productivity and enable accurate fluid separation into equal volumes. The easy dispense mode allows one-touch volume dispensing using the DISPENSE key. Intelligent cooling fan control minimizes operational noise, and the built-in high-torque brushless motor ensures maintenance-free use.
Pump Head and Tubing Selection:
- LDPP-D10 A: 0.00016 – 26 mL/min, 8 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-D10 B: 0.00011 – 20 mL/min, 8 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-D10 C: 0.00016 – 26 mL/min, 12 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-D10 D: 0.00011 – 20 mL/min, 12 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-D10 E: 0.00016 – 26 mL/min, 16 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-D10 F: 0.00011 – 20 mL/min, 16 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-D10 G: 0.00016 – 26 mL/min, 24 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-D10 H: 0.00011 – 20 mL/min, 24 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-D10 I: 0.0002 – 82 mL/min, 8 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-D10 J: 0.006 – 420 mL/min, 1 channel, Tubing Wall: 0.8 ~ 1 mm
- LDPP-D10 K: 0.16 – 420 mL/min, 1 channel, Tubing Wall: 0.8 ~ 1 mm
- LDPP-D10 L: 0.006 – 420 mL/min, 2 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-D10 M: 0.16 – 420 mL/min, 2 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-D10 N: 0.006 – 570 mL/min, 1 channel, Tubing Wall: 0.8 ~ 1 mm
- LDPP-D10 O: 0.017 – 720 mL/min, 1 channel, Tubing Wall: 0.8 ~ 1 mm
- LDPP-D10 P: 0.006 – 570 mL/min, 2 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-D10 Q: 0.017 – 720 mL/min, 2 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-D10 R: 0.05 – 400 mL/min, 1 channel, Tubing Wall: 0.8 ~ 1 mm
- LDPP-D10 S: 0.05 – 400 mL/min, 2 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-D10 T: 0.05 – 260 mL/min, 4 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-D10 U: 0.25 – 1200 mL/min, 1 channel, Tubing Wall: 0.8 ~ 1 mm
- LDPP-D10 V: 0.3 – 1700 mL/min, 1 channel, Tubing Wall: 0.8 ~ 1 mm
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The flow rate range of this model is from 0.00011 mL/min to 1700 mL/min.
It operates within a speed range of 0.1 to 150 rpm, with a speed resolution of 0.1 rpm.
This model features 24 channels for dispensing.
The dimensions are 285 × 250 × 195 mm, and it weighs 6.5 kg.
It requires an AC power supply of 220 V ±10 % at either 50 Hz or 60 Hz.
The operating ambient temperature range is from 0 to 40 °C.
The flow accuracy is rated at 0.5%.
Yes, it includes an anti-drip function, multiple operational modes, and a touch screen controller for real-time monitoring.
The power consumption is less than 60 W.
Yes, it has an IP grade of IP 31, indicating protection against dust and moisture.
It is designed for laboratory and industrial dispensing applications, allowing for accurate fluid separation into equal volumes.
The housing is made from ABS plastic, providing robustness and protection.
