Dispensing Peristaltic Pump EDPP-C10
Specifications
| Country of Origin | UK |
|---|---|
| Power Consumption | Less than 100 W |
| Relative Humidity | Less than 80 % |
| Brand | Generic Brand |
| Power Supply | AC 220 V ±10 % / 50 Hz / 60 Hz |
| Model | LDPP-C10 |
| Weight | 6.2 Kg |
| Ambient Temperature (ºC) | 0 ~ 40 °C |
| Type of Product | Peristaltic Pump |
| Speed Range | 0.1 ~ 350 rpm |
| Flow range | 0.006 ~ 4000 mL/min |
| IP grade | IP 31 |
| Flow Accuracy | 0.5 % |
| No Of Channel | 4 |
| Dimensions (L × W × H) | 286 × 180 × 230 mm |
| Speed Resolution | 0.1 rpm |
Key Features
- Operational modes : Volume Dispense, Time Dispense, Copy Dispense and Flow Mode
- LCD display for monitoring parameters
- Anti-drip function ensuring dispense accuracy
- Speed resolution : 0.1 rpm
- Adjustable rotating speed
- Intelligent temperature control minimizing working noise
- Reversible operation allowing pumping in both directions
- Multi channels with interchangeable pump heads for varied applications
- Easy liquid auto dispension by time or volume
- Internal double layer isolation
- Dust and moisture proof circuit board
- Optional remote infrared control
- Robust and protected with ABS plastic housing
- Low noise operation
Product Description

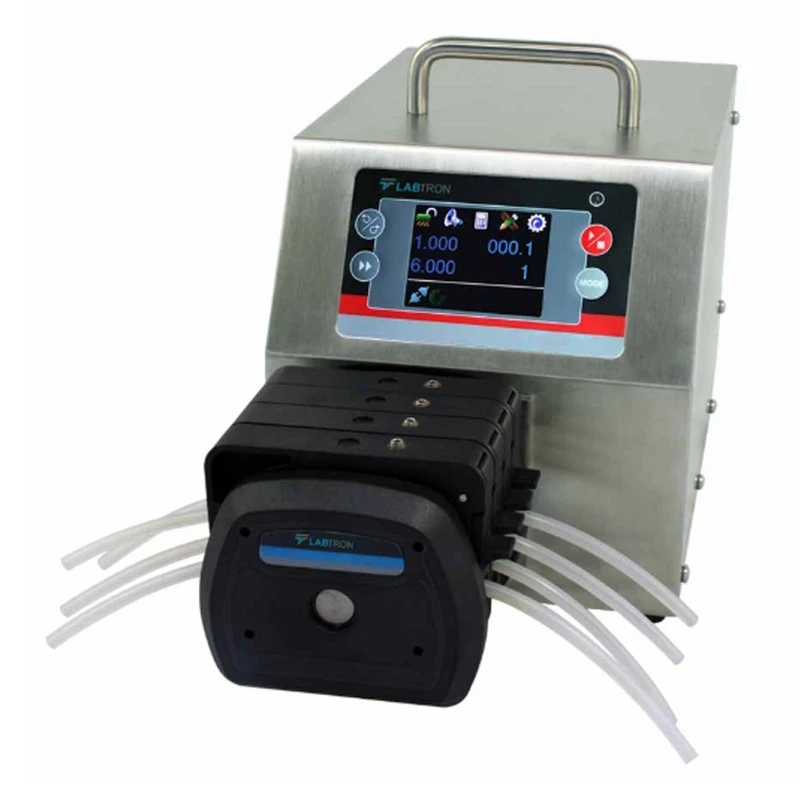

Dispensing Peristaltic Pump LDPP-C10 is a four-channeled pump equipped with a touch screen controller that enables real-time parameter monitoring and speed adjustment. It comes with advanced features like flow rate calibration, anti-drip function, and four operational modes for simplified operation. The easy dispense mode allows single-touch volume dispensing using the DISPENSE key. Intelligent cooling fan control minimizes noise levels, while the built-in high-torque brushless motor ensures maintenance-free performance.
Pump Head and Tubing Selection:
- LDPP-C10 A: 0.006 – 990 mL/min per channel, 1 channel, Tubing Wall: 0.8 ~ 1 mm
- LDPP-C10 B: 0.16 – 990 mL/min per channel, 1 channel, Tubing Wall: 0.8 ~ 1 mm
- LDPP-C10 C: 0.006 – 990 mL/min per channel, 2 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-C10 D: 0.16 – 990 mL/min per channel, 2 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-C10 E: 0.006 – 990 mL/min per channel, 4 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-C10 F: 0.16 – 990 mL/min per channel, 4 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-C10 G: 0.006 – 1300 mL/min per channel, 1 channel, Tubing Wall: 0.8 ~ 1 mm
- LDPP-C10 H: 0.16 – 1600 mL/min per channel, 1 channel, Tubing Wall: 0.8 ~ 1 mm
- LDPP-C10 I: 0.006 – 1300 mL/min per channel, 2 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-C10 J: 0.16 – 1600 mL/min per channel, 2 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-C10 K: 0.006 – 1300 mL/min per channel, 4 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-C10 L: 0.16 – 1600 mL/min per channel, 4 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-C10 M: 0.05 – 930 mL/min per channel, 1 channel, Tubing Wall: 0.8 ~ 1 mm
- LDPP-C10 N: 0.05 – 930 mL/min per channel, 2 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-C10 O: 0.05 – 610 mL/min per channel, 4 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-C10 P: 2.5 – 3500 mL/min per channel, 1 channel, Tubing Wall: 0.8 ~ 1 mm
- LDPP-C10 Q: 2.5 – 3500 mL/min per channel, 2 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-C10 R: 3 – 4000 mL/min per channel, 1 channel, Tubing Wall: 0.8 ~ 1 mm
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The flow rate range of this model is from 0.006 mL/min to 4000 mL/min, depending on the channel configuration selected.
This model features four channels, allowing for multiple dispensing applications simultaneously.
It requires an AC power supply of 220 V ±10 % at 50 Hz or 60 Hz.
The maximum speed of this unit is 350 rpm, with a speed resolution of 0.1 rpm.
The dimensions of this model are 286 mm in length, 180 mm in width, and 230 mm in height.
This unit weighs 6.2 kg.
The operating ambient temperature range for this model is from 0 °C to 40 °C.
The flow accuracy of this model is 0.5%.
Yes, the circuit board is designed to be dust and moisture proof, ensuring reliable operation.
The housing of this model is made from ABS plastic, providing a robust outer structure.
The country of origin for this model is the UK.
