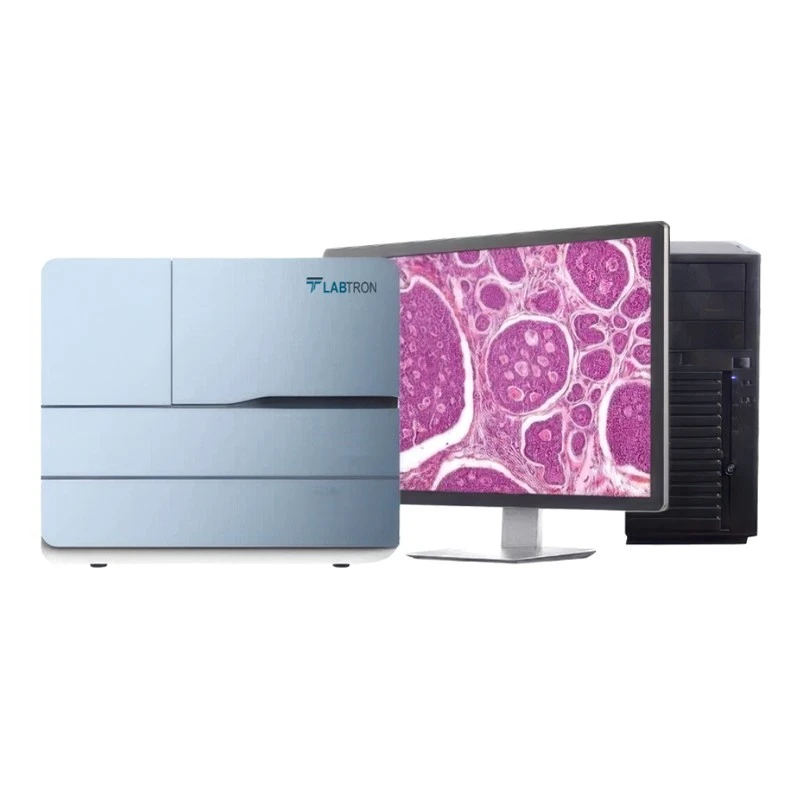

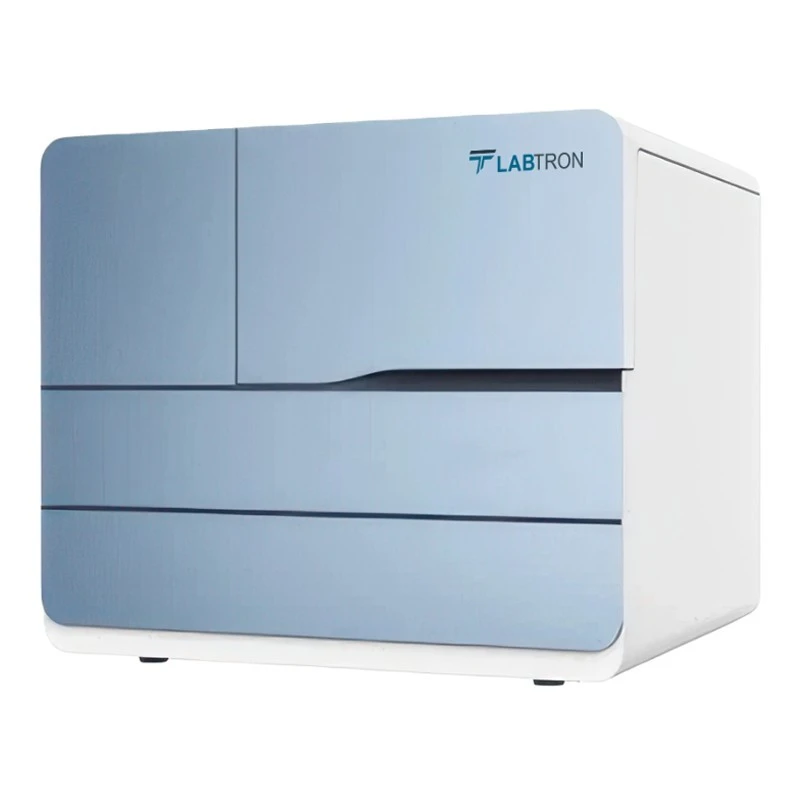

Digital Pathology Slide Scanner EDPS-A15
Specifications
| Country of Origin | UK |
|---|---|
| Resolution | ≤ 0.25 μm/pixel (20x) / ≤ 0.125 μm/pixel (40x) |
| Brand | Generic Brand |
| Focus | Automatic Z-axis focusing / using a piezoelectric ceramic motor / focusing accuracy of 10 nm |
| Model | LDPS-A15 |
| Weight | 60 kg |
| Type of Product | Pathology Slide Scanner |
| Scanning Speed | Less than 25 s (20x — 15 × 15 mm) / Less than 90 s (40x — 15 × 15 mm) |
| Magnification | 20x / 40x |
| Objective | 20x APO NA 0.8 / 40x APO NA 0.95 |
| Movement Control | Magnetic linear control |
| Dimension (L × W × H) | 635 × 595 × 571 mm |
| Focus Mode | Automatic / Manual |
| Scanning Capacity | 60 |
| Acceptable Slides | 1 × 3 inch / 2 × 3 inch |
| Light Source Scanning | LED long-life light source |
| Sample Loading Method | Automatic loading / with electric control |
| Sample Identification | Automatic identification / manually adjustable area |
| Multi-layer Scanning | Yes |
| Brightfield Scanning Time | ≤ 35 s (20x — 15 × 15 mm) |
| Image Format | SDPC / TIFF / SVS |
| Positional Accuracy | 20 nm |
| Label Identification | Linear code / QR code |
Key Features
- Fast Scanning
- Smart Identification
- High Resolution
- Dual Magnifications
- Magnetic linear contro
Product Description
Digital Pathology Slide Scanner LDPS-A15 can scan up to 60 slides, ensuring high-throughput efficiency. It accommodates both 1×3-inch and 2×3-inch slides, offering versatility for various sample sizes. The scanner utilises advanced apochromatic objectives for superior clarity and high numerical aperture imaging. Its 20 nm positional accuracy and 10 nm Z-axis focusing, achieved via a piezoelectric motor, ensure precision. Our Digital Pathology Slide Scanner uses cutting-edge technology and precise optics to deliver reliable results.
Applications:
Our Digital Pathology Slide Scanner LDPS-A15 ensures high-resolution imaging, multi-layer scanning, and efficient workflow in laboratories and healthcare settings. It is ideal for pathology, biomedical research, and clinical diagnostics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can scan up to 60 slides, ensuring high-throughput efficiency in laboratory settings.
The resolution is ≤ 0.25 μm/pixel at 20x magnification and ≤ 0.125 μm/pixel at 40x magnification.
It features automatic Z-axis focusing using a piezoelectric ceramic motor, achieving a focusing accuracy of 10 nm.
The scanning speed is less than 25 seconds for 20x magnification and less than 90 seconds for 40x magnification for a 15 × 15 mm area.
It supports multi-layer scanning and produces images in SDPC, TIFF, and SVS formats.
The weight of this model is 60 kg.
The dimensions are 635 mm in length, 595 mm in width, and 571 mm in height.
It uses an LED long-life light source for scanning.
Sample loading is automatic and controlled electrically, enhancing the ease of use in a laboratory environment.
It supports automatic identification and allows for manual adjustment of the scanning area using linear or QR codes.
It is suitable for pathology, biomedical research, and clinical diagnostics, ensuring efficient workflow in laboratories and healthcare settings.
