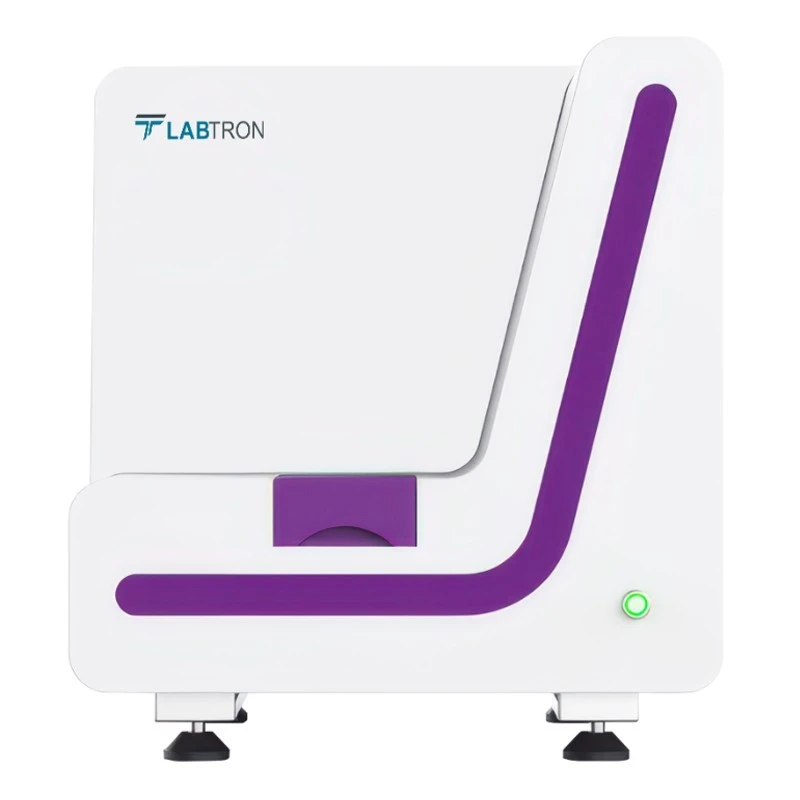

Digital Pathology Slide Scanner EDPS-A11
Specifications
| Country of Origin | UK |
|---|---|
| Resolution | ≤ 0.25 μm/pixel (20x) |
| Brand | Generic Brand |
| Focus | Automatic Z-axis focusing / using a piezoelectric ceramic motor / focusing accuracy of 10 nm |
| Model | LDPS-A11 |
| Weight | 38 Kg |
| Type of Product | Pathology Slide Scanner |
| Scanning Speed | ≤ 25 s (20x — 15 × 15 mm) |
| Magnification | 20x / 40x |
| Objective | 20x NA 0.8 |
| Movement Control | Magnetic linear control |
| Dimension (L × W × H) | 480 × 490 × 545 mm |
| Scanning Capacity | 12 |
| Light Source Scanning | LED long-life light source |
| Sample Loading Method | Automatic loading with electric control |
| Sample Identification | Automatic identification / manually adjustable area |
| Multi-layer Scanning | Yes |
| Brightfield Scanning Time | ≤ 36 s (20x objective lens / 15 × 15 mm area) |
| Image Format | Source Format — sdpc / dcm | Output — tiff / jpg / png |
| Slide Size | 26 × 76 mm (1 × 3 inch) / 52 × 76 mm (2 × 3 inch) |
Key Features
- Multi-layer scanning
- Automated controls
- Multiple image formats
- High-speed Scanner
- Power Efficiency
Product Description
Digital Pathology Slide Scanner LDPS-A11 comes with 20x APO objectives to cater for a wide range of imaging needs. It has an automatic Z-axis focusing with a piezo motor ensuring 10 nm accuracy for sharp, detailed imaging results. The device offers automated slide handling, sample identification, and adjustable scanning areas. Its LED long-life light source delivers consistent and reliable illumination throughout the scanning process. Our slide scanner can accommodate up to 12 slides ideal for pathology and research.
Applications:
Our Digital Pathology Slide Scanner LDPS-A11 is ideal for pathology, research, clinical diagnostics, education, pharmaceuticals, forensic science, agricultural research, and material science, offering high-resolution imaging.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resolution of this model is ≤ 0.25 μm/pixel at 20x magnification.
It can accommodate up to 12 slides for scanning.
The scanning speed is ≤ 25 seconds for a 15 × 15 mm area at 20x magnification.
It uses an LED long-life light source for consistent illumination during the scanning process.
The dimensions are 480 mm in length, 490 mm in width, and 545 mm in height.
It features automatic Z-axis focusing using a piezoelectric ceramic motor with a focusing accuracy of 10 nm.
It supports source formats such as sdpc and dcm, and output formats including tiff, jpg, and png.
Sample loading is automatic with electric control, allowing for efficient operation.
It is suitable for applications in pathology, research, clinical diagnostics, education, pharmaceuticals, forensic science, agricultural research, and material science.
The weight of this unit is 38 kg.
It utilizes magnetic linear control for movement.
