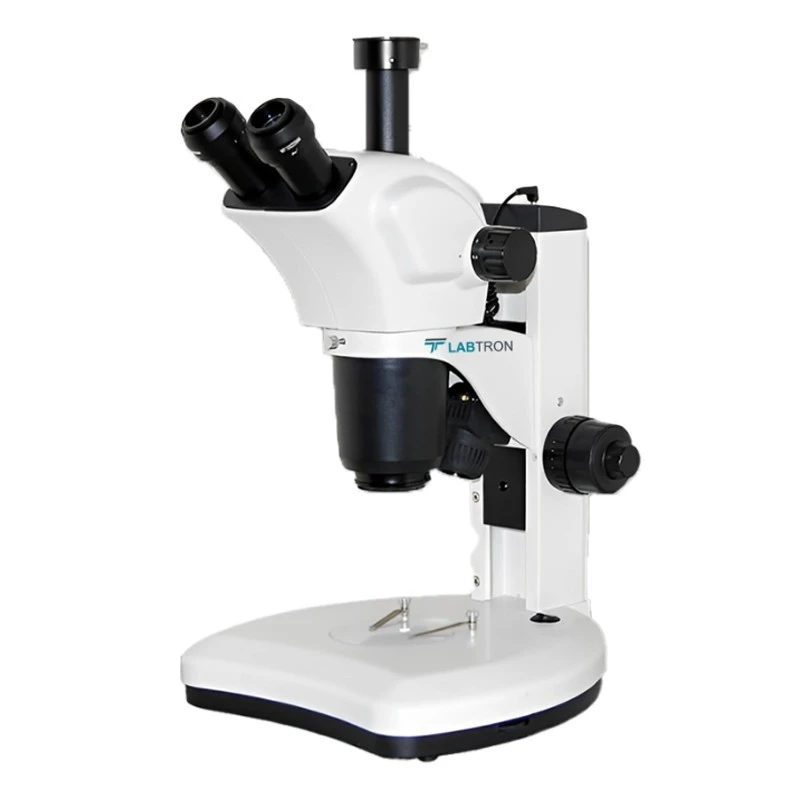

Stereo Microscope ESM-D12
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Power | 110V to 240V |
| Model | LSM-D12 |
| Weight | 9 kg |
| Type of Product | Microscope |
| Lighting | High brightness White LED / transmission / reflection / or reflection lighting methods / independent electrical control |
| Objectives | 0.7x to 6.3x |
| Focusing | Coarse and fine adjustment of coaxial focusing |
| Viewing Head | Trinocular head |
| Eyepieces | WF10X/22mm / WF20X/12mm / WF25X/9mm |
| Zoom Ratio | 0.0479166666666667 |
| Total Magnification | 7X to 315X |
| Dimensions (L × W × H) | 335 × 280 × 462 mm |
| Packaging Dimensions | 430 × 420 × 580 mm |
| Upper Light Source | 3W high brightness LED |
| Lower Light Source | 5W high brightness LED |
| Zoom Magnification | 7x to 63x |
| Visual Observation | 45° oblique / and 360° rotatable / adjustable left and right visual acuity |
| Dioptric Adjustment | ± 5mm |
| Zoom Working Mode | Continuous |
| Effective Working Distance | 110 mm |
| Additional Objective Lens | 2X |
| Pupil Distance Adjustment Range | 48 to 75 mm |
| Field of View with the Plan Objective | Ø 22mm |
| Field of View Range | Ø 33.8 to Ø 3.49 |
| Lifting Mirror Body Adjustment Mechanism | Cylindrical roller guidance / smooth and lightWeight transmission / adjustable coarse and fine movements |
| Vertical Effective Travel | 220 mm |
| Dimension of Base | 310mm × 280mm (With Specimen Clip) |
Key Features
- Long working distance
- Variable interpupillary distance
- Wide field of view
- High-resolution imaging
- Adjustable brightness lighting
- Compatible with camera systems
Product Description
Stereo Microscope LSM-D12 features a trinocular head with a continuous zoom magnification range of 7X to 63X for flexible and detailed viewing. It features a 45° inclined angle, enhancing both clarity and comfort during specimen observation. The microscope includes an adjustment mechanism with cylindrical roller guidance for smooth lifting mirror movement. It is equipped with high-brightness white LED lighting and adjustable illumination modes for optimal viewing in various applications.
Applications:
Stereo Microscope is used for detailed examination and manipulation, providing a three-dimensional view of specimens. It is widely used in fields like biology, electronics, and materials science.
Standard Accessories:
- Eyepiece WF10X/22mm
- LED Illumination
- Dust Cover
Optional Accessories:
- Eyepiece WF15X/15mm
- Eyepiece WF20X/12mm
- Eyepiece WF25X/9mm
- Adjustable Eyepiece WF20X/12mm
- Auxiliary Objective Lens: 0.5X
- Auxiliary Objective Lens: 2X
- LED EPI-Fluorescence Illumination
- C-Mount Adapter for Camera 0.4X
- C-Mount Adapter for Camera 0.5X
- C-Mount Adapter for Camera 1X
- 3.1MP CMOS Camera
- 5.1MP CMOS Camera
- 10MP CMOS Camera
- Canon Camera Connector
- Nikon Camera Connector
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The total magnification range is from 7X to 315X, allowing for detailed observation of specimens.
The effective working distance is 110 mm, providing ample space for specimen manipulation and observation.
The dimensions of this unit are 335 mm in length, 280 mm in width, and 462 mm in height.
It is equipped with high-brightness white LED lighting, with options for transmission and reflection lighting methods.
The zoom magnification range is from 7X to 63X, offering flexibility for various viewing needs.
The weight of this model is 9 kg, making it manageable for laboratory use.
The pupil distance adjustment range is from 48 mm to 75 mm, accommodating different user preferences.
Standard eyepieces included are WF10X/22mm, with optional eyepieces available in WF15X/15mm, WF20X/12mm, and WF25X/9mm.
This microscope is suitable for detailed examination and manipulation in fields such as biology, electronics, and materials science.
The power requirement is 110V to 240V, making it compatible with various electrical systems.
The upper light source is a 3W high brightness LED, while the lower light source is a 5W high brightness LED.
