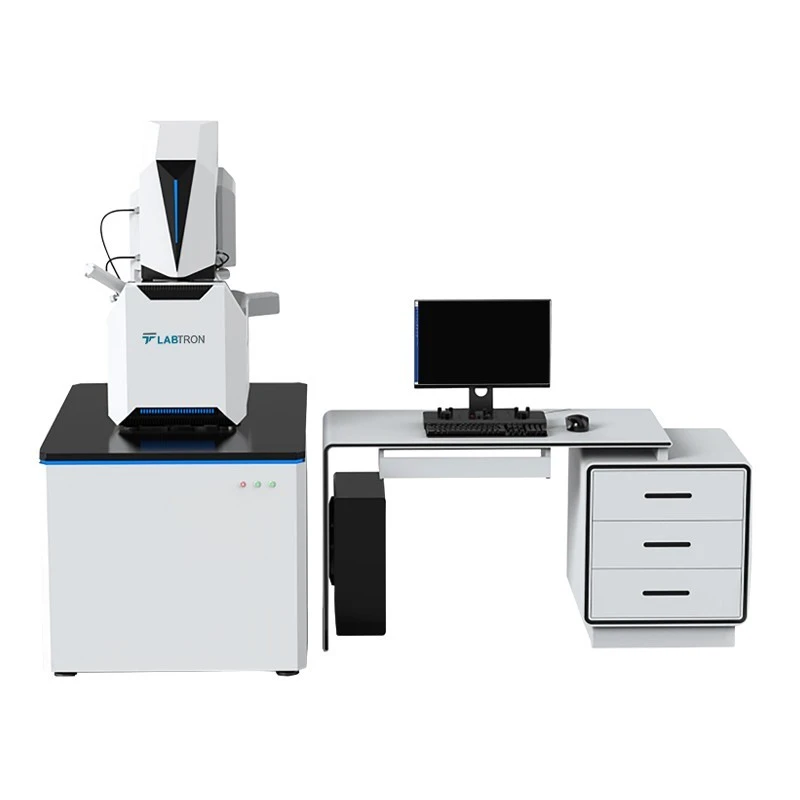

Scanning Electron Microscope ESEM-A10
Specifications
| Country of Origin | UK |
|---|---|
| Resolution | 1.0 nm at 15 kV (SE) / 1.5 nm at 1 kV (SE) / 0.8 nm at 30 kV (STEM) |
| Display | Multi-Channel Display |
| Brand | Generic Brand |
| Power Supply | AC 220 V (±10%) / 50 Hz / 2 kVA |
| Voltage (V) | 20 V to 30 kV |
| Humidity | Less than 50% |
| Detector | Secondary Electron Detector (ETD) / High Angle Electron Detector in lens |
| Model | LSEM-A10 |
| SOFTWARE | SEM Operation Software |
| Temperature | 20 to 25°C |
| Type of Product | Microscope |
| Magnification | 1× to 2 /500 /000× |
| Camera | Vertical Optical Navigation CCD / Horizontal Monitoring CCD |
| Working Stage | 5 Axes Auto Stage / X — 120 mm / Y — 115 mm / Z — 150 mm / T — -10° to +90° / R — 360° |
| Electron Gun | Schottky Field Emission Electron Gun / In-cylinder Deceleration / Electromagnetic Composite Objective / Water-cooled Thermostatic Objective |
| Vacuum System - Type | Fully Auto Control Oil Free Vacuum |
| Sample Room Pressure | ≤ 5×10⁻⁴ Pa |
| Electron Gun Pressure | Less than 9×10⁻⁸ Pa |
| Mechanical Pump Flow Rate | Greater than 6 m³/h |
| Turbo Molecular Pump Flow Rate | Greater than 240 L/s |
| Ion Pump Flow Rate | Greater than 25 L/s |
| Navigation | Gesture navigation |
| Image Enhancement | Auto Brightness Contrast / Auto Focus / Auto Astigmatism |
| Image Format Support | TIFF / JPG / BMP / PNG |
| Computer Specs | 16 GB RAM / 512 GB SSD / 24" Monitor / Windows 10 |
| Installation Room - Size | L Greater than 3000 mm / W Greater than 4000 mm / H Greater than 2300 mm |
Key Features
- High-pressure Super Tunnel technology ensures resolution at low voltage
- No crossover in the electronic optic path improves resolution
- Water cooling constant temperature objective lens ensures stability
- HD photos of sample station helps in quick sample location
- Quick adjustment of astigmatism for improved imaging
- One-click functions enables fast imaging
- Adjusts brightness and contrast for optimal image clarity
- Allows for widefield observation to obtain overall morphology
- Rich scalability of Scanning Electron Microscope
Product Description
Scanning Electron Microscope LSEM-A10 provides high brightness for achieving excellent quality images. It offers magnification of 1 to 2,500,000x and has an accelerating voltage of 20 V to 30 kV. The main goal of this microscope is to yield high-resolution imaging and effective navigation. This device has a wide range of applications in various scientific and industrial fields.
Applications:
Scanning Electron Microscope has a wide range of applications across different fields such as chemical, biomedical, environmental protection, nanotechnology, etc.
Optional Accessories:
- BSE (Backscattering Electron) Detector
- EDS (Energy Dispersive Spectroscopy)
- EBSD (Electron Backscatter Diffraction)
- EDS + EBSD System
- STEM (Scanning Transmission Electron Microscopy)
- EBIC (Electron Beam-Induced Current)
- CL (Cathodoluminescence)
- Knob Control Panel & Trackball
- Sample Exchange System
- Beam Gate & Electron Optics
- Low Vacuum Detector (LV Module, Works with BSE)
- Double Anode (Tetrode)
- Tungsten Filament (6 pcs in 1 box)
- Large Size Image Stitching Software
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum magnification of this model is 2,500,000x.
The operating voltage range for the ESEM-A10 is from 20 V to 30 kV.
It uses a Schottky Field Emission Electron Gun with in-cylinder deceleration and an electromagnetic composite objective.
The installation room must be larger than 3000 mm in length, 4000 mm in width, and 2300 mm in height.
The operating humidity should be less than 50%.
It comes with SEM Operation Software for its operation.
The power supply required is AC 220 V (±10%) at 50 Hz with a capacity of 2 kVA.
The sample room pressure should be less than or equal to 5×10⁻⁴ Pa.
Optional accessories include BSE Detector, EDS, EBSD, and various imaging systems like STEM and CL.
The operating temperature range is between 20 to 25°C.
