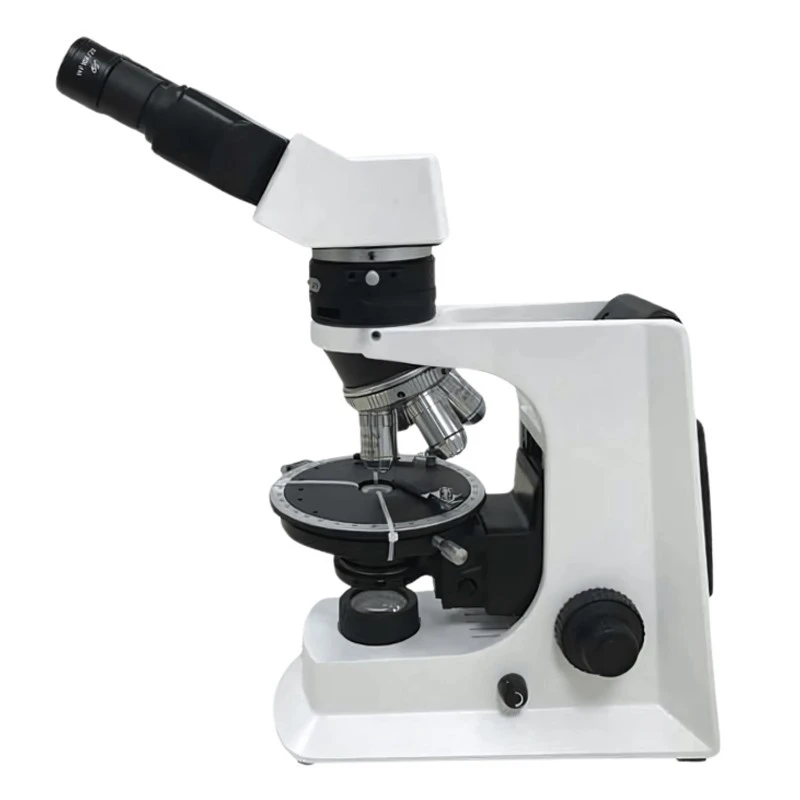

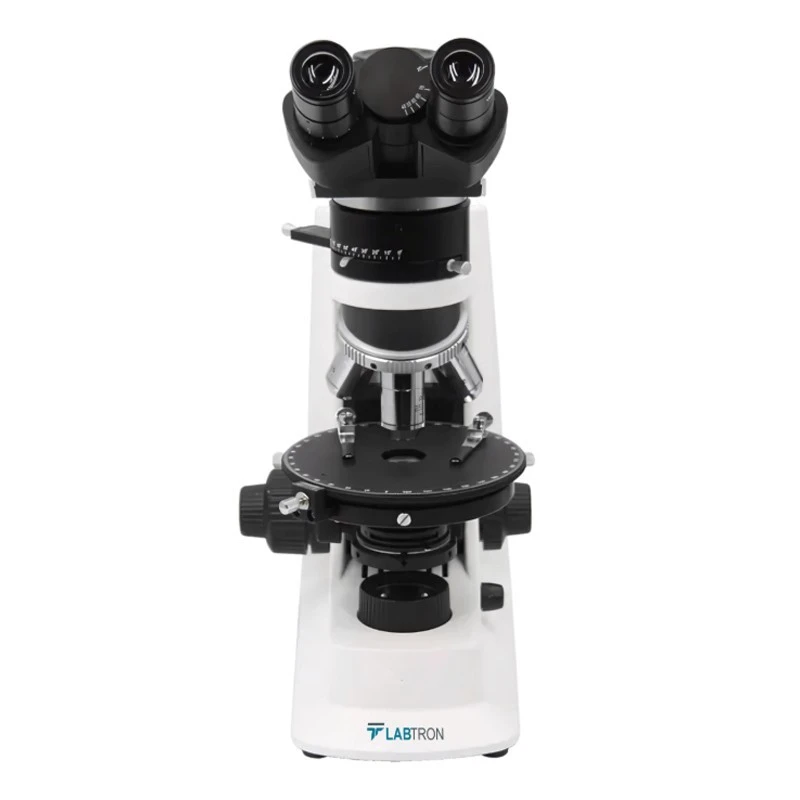

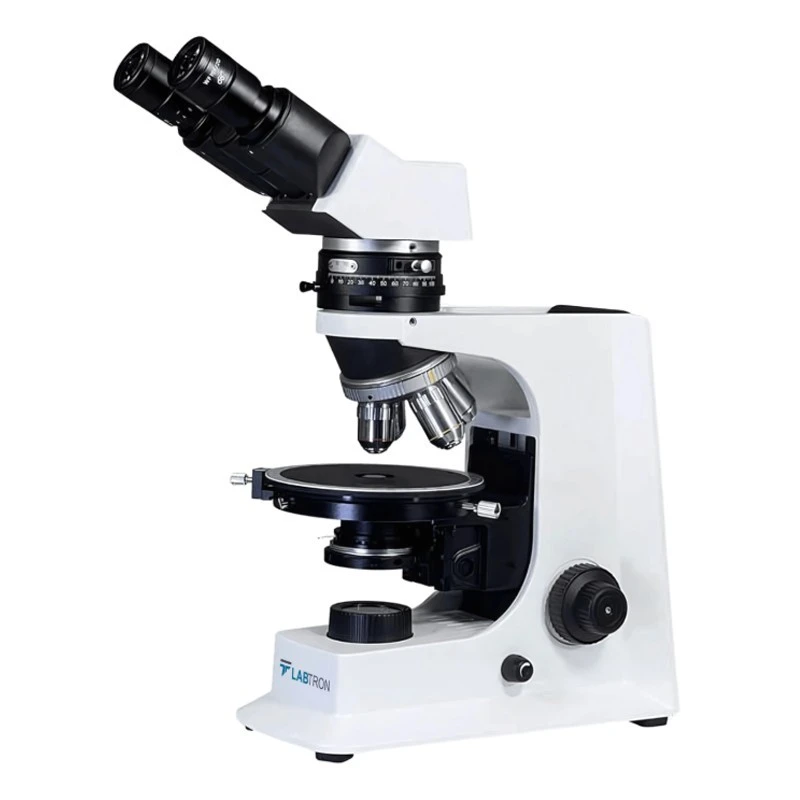

Polarizing Microscope EPM-A20
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Net Weight | 7.5 kg |
| Dimensions | 570 × 275 × 450 mm |
| Model | LPM-A20 |
| Optical System | Color Corrected Infinite Optical System |
| Gross Weight | 8.6 kg |
| Type of Product | Microscope |
| Filter | Blue (Built-in) / Optional — Amber / Green / Neutral |
| Condenser | Abbe N.A. 1.25 Strain-free condenser |
| Illumination | 6V/30W Halogen Lamp |
| Magnification | 40x to 400x |
| Objectives | 4x / 10x / 20x (S) / 40x (S) |
| Focusing | Coaxial Coarse & Fine Focusing knobs / Travel Range — 26mm / Scale — 2µm |
| Eyepiece | WF 10×/18mm (Reticule 0.1mm) |
| Viewing Head | Seidentopf Binocular Head / Inclined 30° / Rotatable 360° / Interpupillary Distance — 48-75mm |
| Nosepiece | Quintuple click stop revolving mechanism with multiple ball bearing |
| Stage | 360° Rotatable Round Stage / Center Adjustable / Division 1° / Vernier division 6′ |

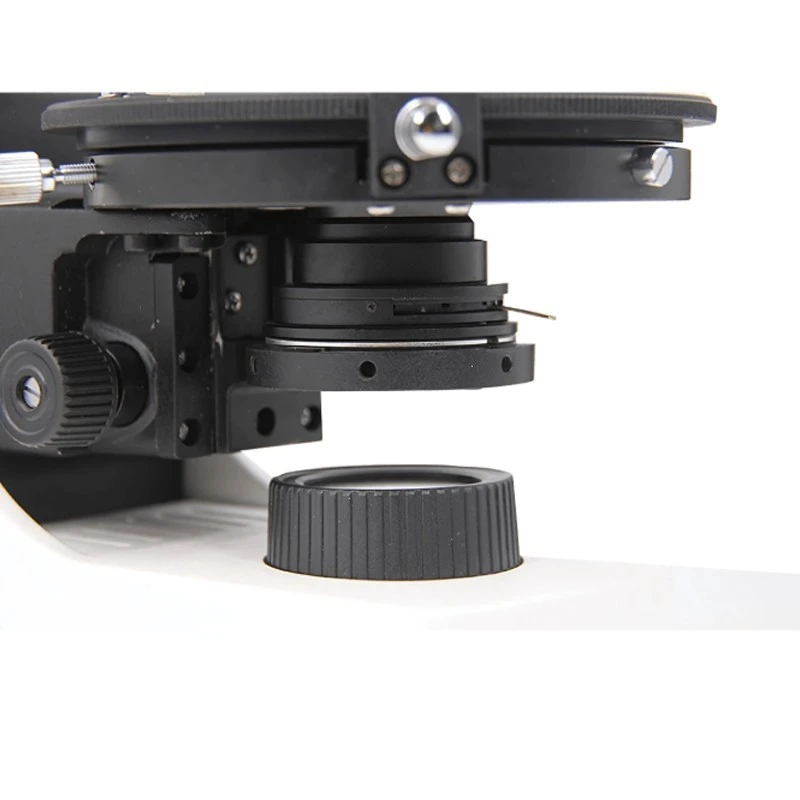

| Polarizing Unit | Under the condenser / With Scale Rotatable 360° / Can Be Locked / Can be moved out of the optical path |
| Bertrand Lens | Can be moved out of the optical path |
| Optical Compensator | 1/4λ Slip (I-IV Class) Quartz Wedge |
| Analyzing Unit | 0-90° / can be moved out of the optical path for single polarizing observation |
Key Features
- Coaxial focusing with precise 2µm increments
- 360° rotatable stage for versatile viewing
- Built-in filters for superior contrast
- Anti-reflective coatings for clearer images
- Integrated polarizing unit for effective light control
- Robust metal housing for durability
- Vibration-dampening design for stability
Product Description
Polarizing Microscope LPM-A20 comes with a Seidentopf binocular head, featuring 48–75mm interpupillary adjustment for customized comfort. Its quintuple revolving nosepiece enables seamless switching between strain-free objectives, ensuring enhanced accuracy. A high-precision Abbe condenser (N.A. 1.25) provides uniform illumination and optimal contrast control. The 5V/5W LED lamp delivers consistent brightness for detailed microscopic analysis. Ideal for geological studies, polymer characterization, and optical crystallography applications.
Applications:
Our Polarizing Microscope LPM-A20 is ideal for geology, mineralogy, and metallurgy applications, offering precise optical analysis of rock and mineral structures. It is also widely used in university teaching laboratories for research-based education.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a color corrected infinite optical system, which enhances the clarity and accuracy of the images produced.
The dimensions of this unit are 570 × 275 × 450 mm, and it has a net weight of 7.5 kg and a gross weight of 8.6 kg.
It is equipped with a 6V/30W halogen lamp, ensuring consistent brightness for detailed microscopic analysis.

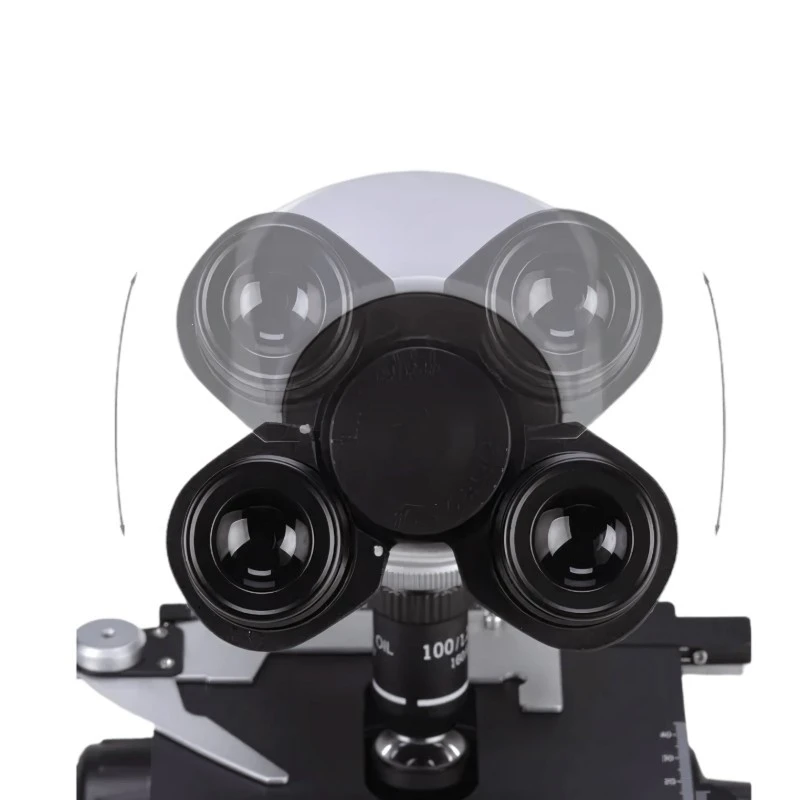

The Seidentopf binocular head is inclined at 30° and features interpupillary adjustment from 48 to 75mm for customized comfort during use.
It is ideal for geological studies, mineralogy, and metallurgy applications, providing precise optical analysis of rock and mineral structures.
It features a 360° rotatable round stage that is center adjustable, with a division of 1° and a vernier division of 6′.
It is equipped with an Abbe N.A. 1.25 strain-free condenser, which provides uniform illumination and optimal contrast control.
This model has a quintuple click stop revolving mechanism with multiple ball bearings for smooth operation when switching objectives.
Yes, it includes a polarizing unit located under the condenser, which can be locked and moved out of the optical path as needed.
