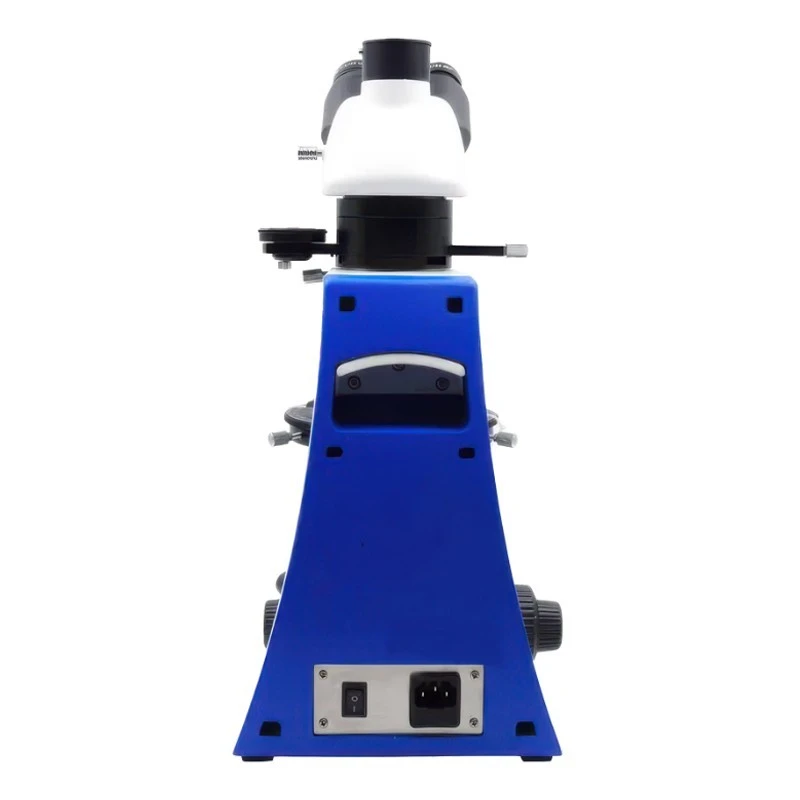

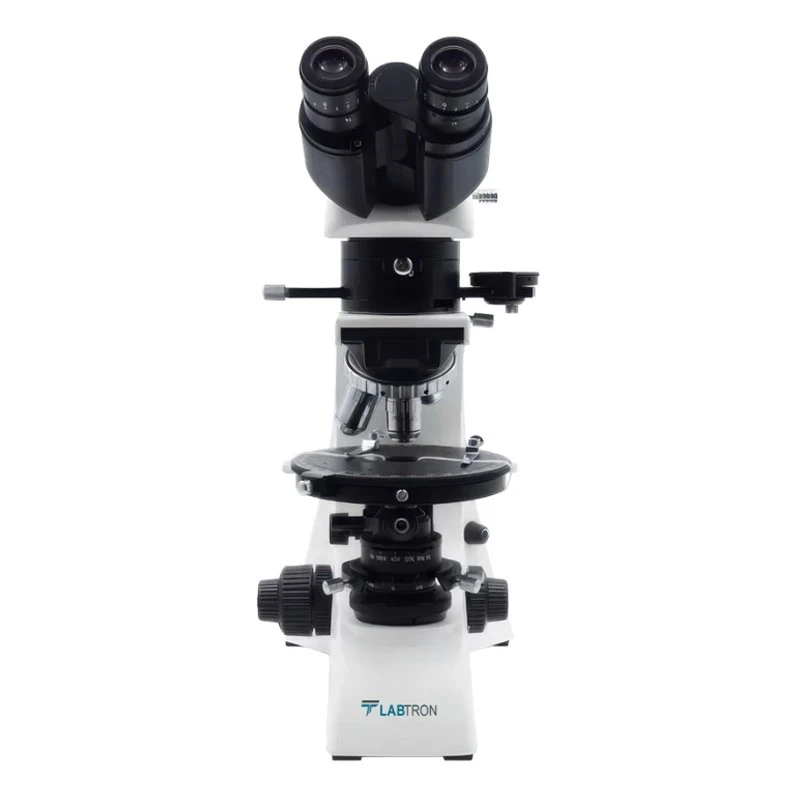

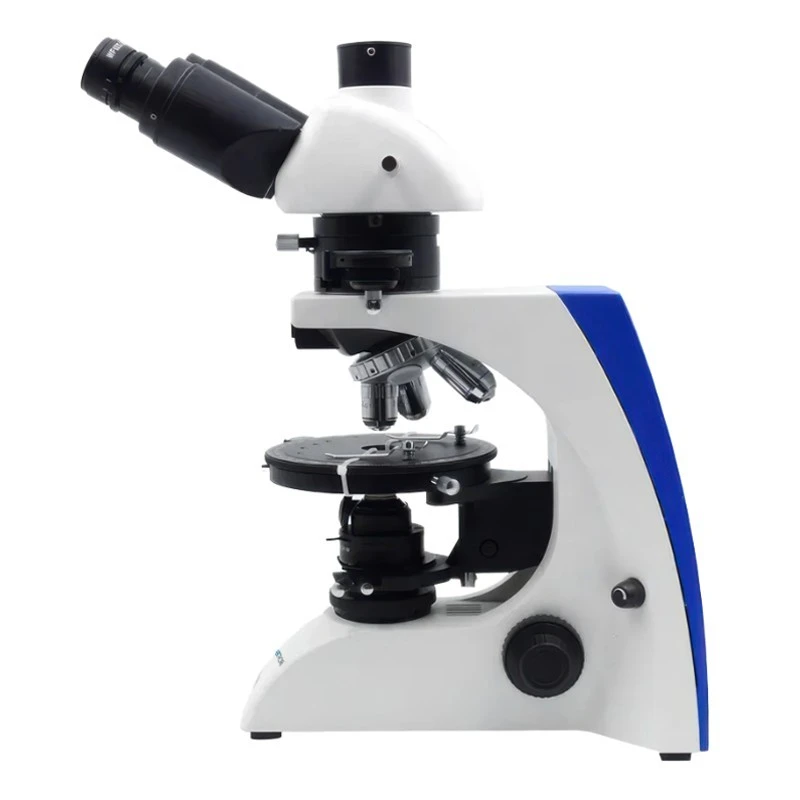

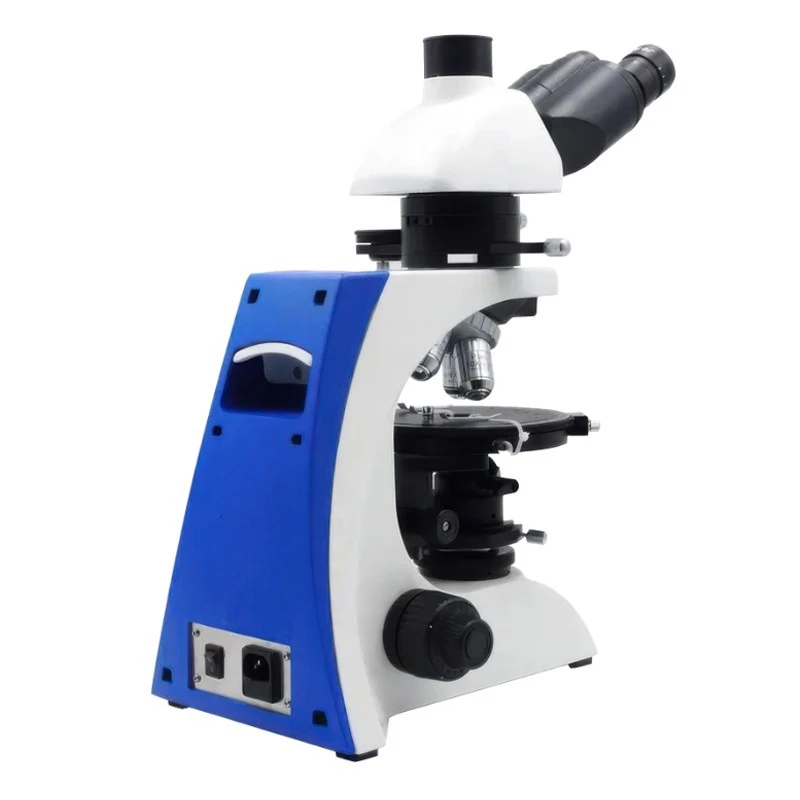

Polarizing Microscope EPM-A13
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Net Weight | 10.0 kg |
| Model | LPM-A13 |
| Filters | Blue (Φ34 mm) / Green (Φ34 mm) |
| Gross Weight | 12.5 kg |
| Type of Product | Microscope |
| Condenser | Swing-out / N.A. 0.9 to 0.13 / built-in polarizer / lockable |
| Illumination | 5W LED Koehler illumination / low voltage / 100 to 240V input / 5V1A output / power bank supported |
| Focusing | Coaxial coarse/fine focus / travel range 22 mm / fine division 0.002 mm |
| Eyepiece | SWF10x/22 mm / diopter adjustable / diameter 30 mm |
| Viewing Head | Seidentopf Trinocular Head / 30° inclined / 360° rotatable / interpupillary distance 48 to 76 mm |
| Nosepiece | Quintuple / center adjustable |
| Stage | Round stage / 360° rotatable / diameter 174 mm |
| Packaging Dimension | 520 × 470 × 285 mm |
| C-mount | 0.5x adapter with adjustable focus |
| Polarizing Unit | Analyzer and polarizer modules integrated into condenser |
| Non-stress Infinity Plan Objectives | PLAN 4x/0.10 / W.D. equal to 12.1 mm / PLAN 10x/0.25 / W.D. equal to 4.64 mm / PLAN 20x/0.40 / W.D. equal to 2.41 mm / PLAN 40x/0.66 / W.D. equal to 0.65 mm |
| Analyzer | Rotatable 360° / lockable / Bertrand lens / compensator slide / quartz wedge slot |
Key Features
- Built-in polarizer in condenser
- Joint move design for alignment
- Bertrand Lens with Compensator
- Diopter adjustable super wide eyepiece
- Rotatable trinocular head with light split
- Compensator slide with quartz wedge
Product Description
Polarizing Microscope LPM-A13 comes with a 360° rotatable Seidentopf trinocular head, offering an interpupillary distance of 48 to 76 mm. It is equipped with non-stress infinity plan objectives ranging from 4x to 40x for precise imaging in polarizing studies. The swing-out condenser, with an N.A. range of 0.9 to 0.13, provides excellent light control. Its 5W LED Koehler illumination system ensures bright, uniform lighting for clear observations. This microscope is perfect for geological research, crystal structure analysis, and advanced educational applications.
Applications:
Our Polarizing Microscope LPM-A13 is ideal for analyzing birefringent structures in geological, biological, and material samples. It is widely used for examining minerals, crystals, and fibers in geology and forensic sciences.
Standard Accessories:
- 5.1MPA Digital Camera (5.1MP, 1/2.5" CMOS, USB3.0, C-Mount)
Optional Accessories:
- Canon DSLR C-Frame
- Built-in 1.7x Photo Eyepiece
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features non-stress infinity plan objectives with magnifications of 4x, 10x, 20x, and 40x for precise imaging in polarizing studies.
It is equipped with a 5W LED Koehler illumination system, providing bright and uniform lighting for clear observations.
The Seidentopf trinocular head allows for an interpupillary distance adjustment between 48 mm and 76 mm.
The round stage has a diameter of 174 mm and is capable of 360° rotation.
It features a swing-out condenser with a numerical aperture (N.A.) range of 0.9 to 0.13 and a built-in polarizer.
The standard accessories include a 5.1MP digital camera with USB 3.0 connectivity and a C-Mount.
An optional accessory is a Canon DSLR C-Frame built-in 1.7x photo eyepiece.
The net weight of this model is 10.0 kg, while the gross weight is 12.5 kg.
The illumination system operates on a low voltage input of 100 to 240V with a 5V1A output, and it is power bank supported.
This microscope is manufactured in the UK.
