Polarizing Microscope EPM-A11

Name: Polarizing Microscope EPM-A11
Brand: Generic Brand
SKU: ADGHO
Price: 69.5 USD
Availability: InStock



SKU ADGHO Category Microscopes Brand Generic Brand Condition New

Specifications

Country of Origin	UK
Brand	Generic Brand
Dimension	750 × 360 × 450 mm
Net Weight	15 kg
Model	LPM-A11
Gross Weight	18 Kg
Type of Product	Microscope
Condenser	Swing out type N.A. 0.9/0.13 polarizing unit (with scale / rotatable 360° / can be locked)
Illumination	6V/20 W / Halogen lamp (input voltage 100 to 240 V)
Focusing	Coarse stroke 25 mm / fine stroke per rotation — 0.2 mm / fine division 2 μm
Eyepiece	WF10X/20 mm / WF10X/20 mm (reticle 0.1 mm)
Objective	Non-stress infinite plan objective — 4x / 10x / 20x / 40x(s) \| Non-stress infinite LWD plan objective — 50x(s)
Viewing Head	Polarizing siedentopf trinocular head 30° inclined / eyepiece rotation 360° / interpupillary adjustable distance 48 to 76 mm
Nosepiece	Quintuple / center adjustable
Stage	Revolving round stage with 360° rotation / center adjustable division 1° / vernier division 6′
Light Distribution	100 — 1 (100% for eyepiece)
Polarizing Unit	Analyzer rotatable with 360° / module type can be locked / Bertrand lens built-in center adjustable
Slip	λ / First class red or 1/4 λ
Quartz Wedge	(I-IV Class)
Reflecting Polarizing Unit	Field diaphragm and aperture diaphragm / polarizer / 12 V/50 W halogen lamp (input voltage 100 to 240 V)

Key Features

Quintuple nosepiece with adjustable center
Polarizing siedentopf type trinocular head
Inbuilt bertrand lens with adjustable center
Non-stress infinite plan and LWD plan objective
Polarizing filters to make use of polarized light
Swing out condenser

Product Description

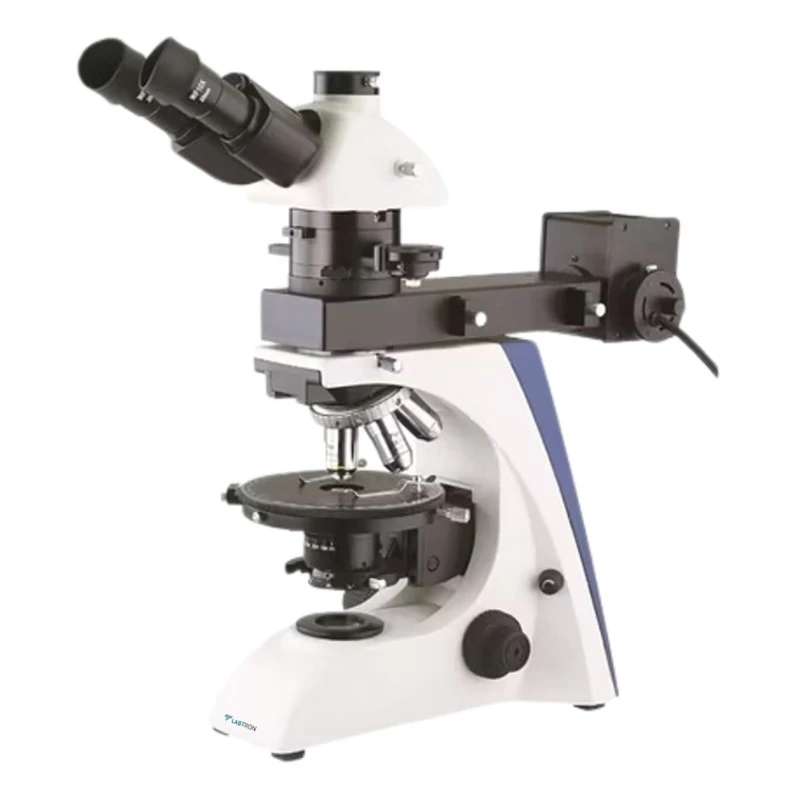

Polarizing Microscope LPM-A11 offers high-definition, contrast-enhancing image quality in polarized light. It features a 30º inclined Siedentopf-type trinocular head with adjustable interpupillary distance. The microscope includes a built-in Bertrand lens on rotatable discs with centering controls. Polarizing filters are used to obtain polarized light for investigating the optical properties of various specimens.

Applications:

Used in the field of geology for the study of rocks and minerals, and also finds applications in botany, forensic science, medicine, chemistry, and metallurgy.

Optional Accessories:

C-Mount 0.57X, Focus Adjustable
C-Mount 1.0X, Focus Adjustable
Polarizing Attached Mechanical Stage
Filter: Amber, Green, Neutral
Halogen Lamp 6V/30W for Transmitted Illumination

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a magnification range of 4x, 10x, 20x, 40x, and 50x with its non-stress infinite plan objectives.

It utilizes a 6V/20W halogen lamp for transmitted illumination, with an input voltage range of 100 to 240 V.

The dimensions of this unit are 750 × 360 × 450 mm, and it has a net weight of 15 kg and a gross weight of 18 kg.

It features a polarizing Siedentopf trinocular head inclined at 30°, with adjustable interpupillary distance ranging from 48 to 76 mm.

It has a revolving round stage that allows for 360° rotation and features a center adjustable division of 1° with a vernier division of 6′.

The polarizing unit is rotatable with 360° capability and includes a built-in Bertrand lens that is center adjustable.

The built-in Bertrand lens is used for centering controls and enhancing the observation of specimens under polarized light.

It features a swing-out type condenser with a numerical aperture of 0.9/0.13, which is rotatable and can be locked in place.

This microscope is manufactured in the UK.

It is used for examining the optical properties of various specimens, particularly in geology, botany, forensic science, medicine, chemistry, and metallurgy.
