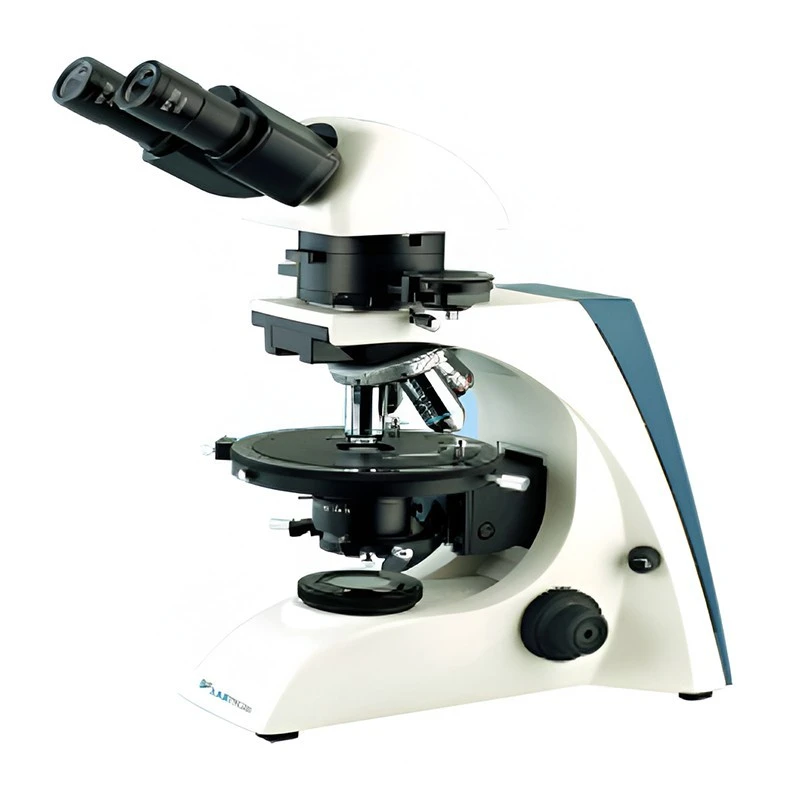

Polarizing Microscope EPM-A10
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Dimension | 570 × 290 × 400 mm |
| Net Weight | 12 Kg |
| Model | LPM-A10 |
| Gross Weight | 14 Kg |
| Type of Product | Microscope |
| Condenser | Swing type N.A. 1.25 with iris diaphragm and filter |
| Collector | High brightness light collector |
| Illumination | 6 V/20 W Halogen lamp / brightness adjustable |
| Focusing | Coaxial coarse & fine adjustment / focusing range 30 mm / focusing interval 0.002 mm |
| Eyepiece | WF10X/20 mm / WF10X/20 mm (reticle 0.1 mm) |
| Objective | Non-stress infinite plan objective — 4x / 10x / 20x / 40x(s) |
| Viewing Head | Siedentopf type binocular head / 30° inclined / eyepiece rotation 360° / interpupillary adjustable distance 50 to 75 mm |
| Nosepiece | Quintuple click stop revolving mechanism with multiple ball bearing |
| Stage | Rotable 360° / center adjustable / division 1° / vernier division 6′ |
Key Features
- Swing type N.A. 1.25 with iris diaphragm and filter
- Non-stress infinite plan objectives
- Polarizing attached mechanical stage
- User-friendly operations
Product Description
Polarizing Microscope LPM-A10 offers high-definition image quality in polarized light using contrast-enhancing techniques. This microscope comes with a quintuple click-stop revolving mechanism with multiple ball bearings. It features a Siedentopf-type 30º inclined binocular head. It can be equipped with filters such as blue and ground glass for more even and diffused light.
Applications:
Used to study the effects of polarized light on a specimen in the fields of science, forensic analysis, geology, medicine, chemistry, biology, and metallurgy.
Standard Accessories:
- 6V/20W Spare Halogen Lamp
- BGX1-20 (0.5A) Fuse
- Blue Ground Glass Filter
- Dust Cover
- Immersion Oil
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It uses a 6 V/20 W halogen lamp for illumination, which is also brightness adjustable.
The dimensions of this model are 570 × 290 × 400 mm.
The net weight of this unit is 12 kg.
It comes with non-stress infinite plan objectives of 4x, 10x, 20x, and 40x magnifications.
This model has a Siedentopf type binocular head that is 30° inclined, with a 360° eyepiece rotation and an interpupillary distance adjustable from 50 to 75 mm.
Yes, it features a rotable 360° mechanical stage that is center adjustable with divisions of 1° and vernier division of 6′.
It is equipped with a swing type N.A. 1.25 condenser that has an iris diaphragm and filter.
The Polarizing Microscope EPM-A10 is manufactured in the UK.
It is used in various fields including forensic analysis, geology, medicine, chemistry, biology, and metallurgy to study the effects of polarized light on specimens.
It features a quintuple click-stop revolving mechanism with multiple ball bearings for smooth operation.
