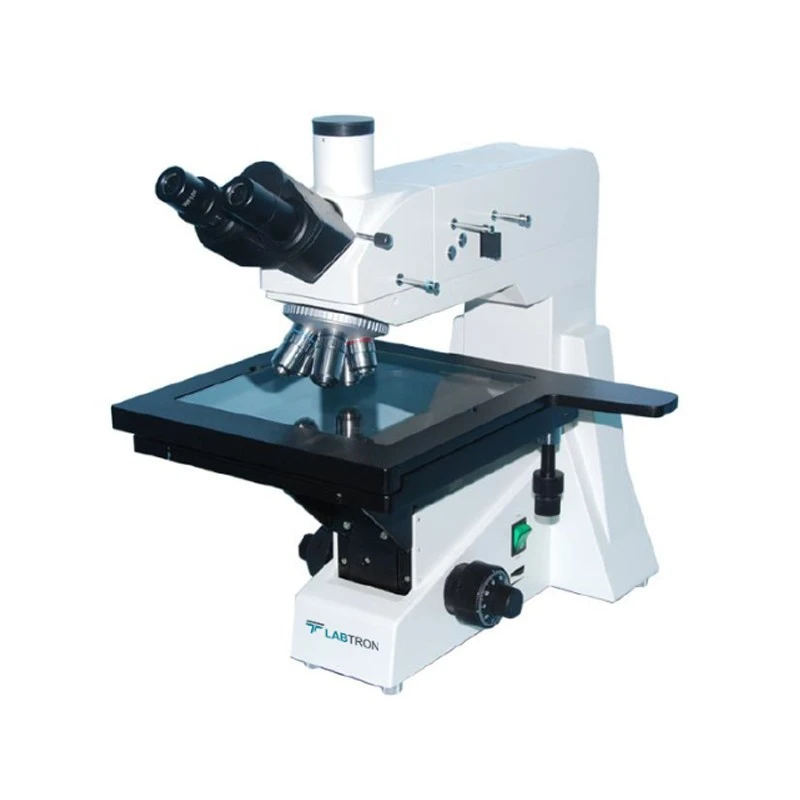

Labtron Metallurgical Microscope LMM-C11 image-1

Free Delivery in India | Lowest Global Shipping Charges

Metallurgical Microscope EMM-C11

Name: Metallurgical Microscope EMM-C11
Brand: Generic Brand
SKU: ADGHM
Price: 69.5 USD
Availability: InStock



SKU ADGHM Category Microscopes Brand Generic Brand Condition New

Specifications

Country of Origin	UK
Brand	Generic Brand
Dimension	590 × 500 × 430 mm
Model	LMM-C11
Optical System	UIS optical system
Weight	21 Kg
Type of Product	Microscope
Eyepiece	Wide field WF 10X /18 mm
Objective	Infinite Plan Achromatic Objectives with long working distance (no cover glass) — PL 5X/0.12 / PL L 10X/0.25 / PL L 20X/0.40 / PL L 40X/0.60 / PL L 80X/0.80
Viewing Head	Trinocular / Inclination of 30° / (Analyzer with field diaphragm to switch)
Nosepiece	Quintuple (Frontward ball bearing inner locating)
Stage	Three layer mechanical / Size — 250 mm × 230 mm / moving range — 154 mm × 154 mm
Focus System	Stage adjustable / Coaxial coarse/fine focus system / with tensional adjustable and up stop / minimum division of fine focusing — 0.7 μm
Vertical Illumination Unit	6V 20 W halogen lamp / brightness control / Vertical illumination with field diaphragm / aperture diaphragm and polarizer / (Y /B /G) filter and frosted filter

Key Features

Adopts plan achromatic objective with long working distance
Wide-field eyepieces
Quintuple nosepiece
Large move range triple layered mechanical stage
Green, blue, yellow filter
Reflected vertical illumination

Product Description

Metallurgical Microscope LMM-C11 is specifically designed for research purposes. It features superior quality plan achromatic objectives with long working distance, triple-layer mechanical stage, trinocular head, blue, yellow, and green filters, and a quintuple nosepiece, making it highly efficient and reliable. It has wide applications in research work in metallography, mineralogy, electronics, and related fields.

Applications:

Metallurgical Microscope is used to inspect semiconductor chips, integrated circuits, and the structures of metals and alloys.

Optional Accessories:

Dividing 10X (µ18mm), 0.1mm/Div
Plan Achromatic Objective with Long Working Distance (no cover glass) PL L 50X/0.70
Plan Achromatic Objective with Long Working Distance (no cover glass) PL L 100X/0.85 (Spring)
CCD Adapter 0.5X
CCD Adapter 1X
CCD Adapter 0.5X with Dividing 0.1mm/Div
5MP HD1 1080P HDMI Microscope Camera
TRetina6 6MP Camera, USB3.0

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The dimensions of this model are 590 × 500 × 430 mm.

It weighs 21 Kg.

This unit features a UIS optical system.

It comes with Infinite Plan Achromatic Objectives with long working distance, including PL 5X/0.12, PL L 10X/0.25, PL L 20X/0.40, PL L 40X/0.60, and PL L 80X/0.80.

The moving range of the three-layer mechanical stage is 154 mm × 154 mm.

It is equipped with wide field WF 10X /18 mm eyepieces.

It features a trinocular viewing head with an inclination of 30°.

This model is used for inspecting semiconductor chips, integrated circuits, and the structures of metals and alloys.

It is equipped with a quintuple nosepiece with frontward ball bearing inner locating.

The country of origin for this model is the UK.
