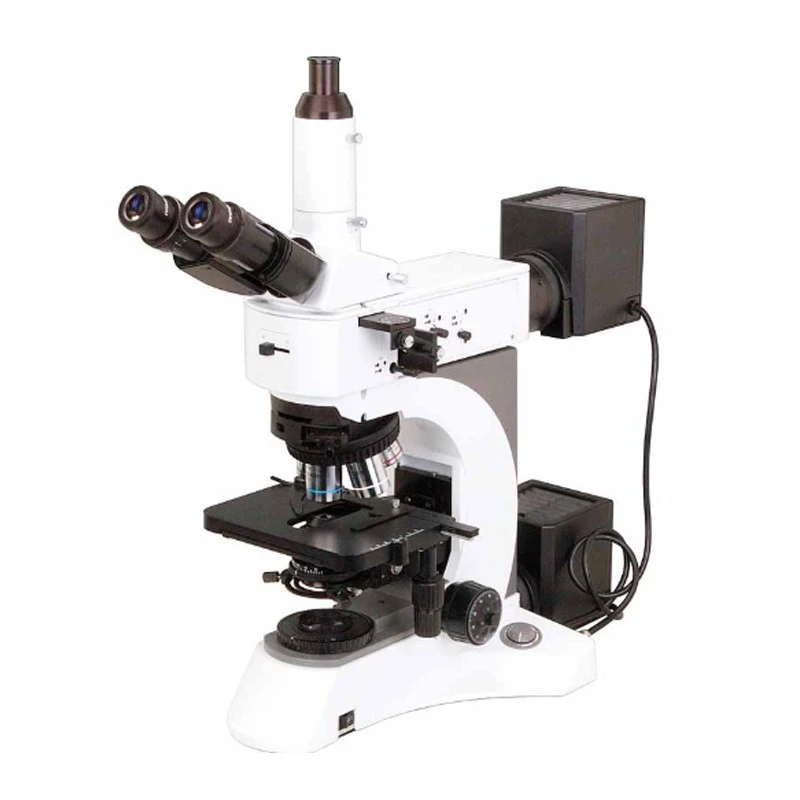

Upright Metallurgical Microscope EMM-B11
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Dimension | 450 x 400 x 850 mm |
| Model | LMM-B11 |
| Optical System | Infinity Optical System (with Bright Field / Dark Field / DIC / Polarizing units) |
| Weight | 22 Kg |
| Type of Product | Microscope |
| Focusing | Coaxial Coarse & Fine Adjustment / Fine Focusing Precision Less than 1μm / With Safety Stop / With Tension Adjustment |
| Eyepiece | Extra Wide Field Eyepiece EW10X/22mm / Eyepiece Tube Dia. 30mm |
| Objective | Infinity Plan Achromatic Objectives — 5×/0.12 (BF/DF) / WD equal to 12 mm / 10×/0.25 (BF/DF) / WD equal to 10 mm / 20×/0.4 (BF/DF) / WD equal to 8.3 mm / 50×/0.75 (BF/DF) / WD equal to 0.32 mm / 100×/0.8 (BF/DF) / WD equal to 0.2 mm |
| Viewing Head | Seidentopf Trinocular Head Inclined at 30° / Interpupillary distance 48 to 75 mm |
| Nosepiece | Backward quintuple nosepiece |
| Working Stage | Double Layer Mechanical Stage — Moving Range 74×50 mm / Includes Specimen Preparation Plate / Slide Glass |
| Transmitted Illumination | Swing-Out Condenser N.A. 0.9/0.25 / 24V 100W Halogen Light with Aspherical Condenser / Blue Filter |
| Reflected Illumination | 24V / 100W Halogen Light / Brightness Adjustable / Kohler Illumination with Aspherical Condenser / Polarizer & Analyzer / Blue / Green / Yellow Filter / Ground Glass filters |
Key Features
- Siedentopf trinocular 30° inclined head
- Infinite optical system
- Transmittance and Reflectance Kohler illumination system
- 5 to 100× Infinite plan achromatic objectives
- Easy to Use, user –friendly operations
Product Description
Upright Metallurgical Microscope LMM-B11 with Siedentopf trinocular head design, infinite optical system, and reflected & transmitted Kohler illumination system meets the performance demands of metal, plastic, electrical circuits, and the engineering industry. Its superior coaxial coarse and fine focusing tension adjustment knobs help in the better examination of samples.
Applications:
Used in the fields of metal and mineral industries for the inspection of thin metal plates, plastic films, electric circuits, and opaque metals and minerals.
Optional Accessories:
- LWD Bright/Dark Field Infinity Plan Objective: 40X/0.6/∞/0 (BF/DF), WD 2.90 mm
- DIC: 20X, 100X
- Polarization Set: Polarizer, Analyzer, Integrated Device
- Neutral Filter ND6: Dia. 45 mm
- Neutral Filter ND25: Dia. 45 mm
- Photo Attachment: Specially Designed for Other Brand SLR Cameras
- C-Mount: 1.0X
- C-Mount: 0.5X
- Specimen Presser
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features an infinity optical system that supports bright field, dark field, DIC, and polarizing units.
The dimensions are 450 x 400 x 850 mm, and it weighs 22 kg.
It comes with infinity plan achromatic objectives: 5×, 10×, 20×, 50×, and 100×, each with specific working distances.
It utilizes a reflected and transmitted Kohler illumination system with 24V 100W halogen lights and adjustable brightness.
The interpupillary distance can be adjusted from 48 mm to 75 mm.
Optional accessories include a LWD Bright/Dark Field Infinity Plan Objective, a DIC set, a polarization set, and a photo attachment for SLR cameras.
The moving range of the double layer mechanical stage is 74 x 50 mm.
It includes an extra wide field eyepiece EW10X with a diameter of 22 mm.
It is used in metal and mineral industries for inspecting thin metal plates, plastic films, electric circuits, and opaque metals and minerals.
It features a backward quintuple nosepiece for easy objective switching.
The country of origin for this model is the UK.
