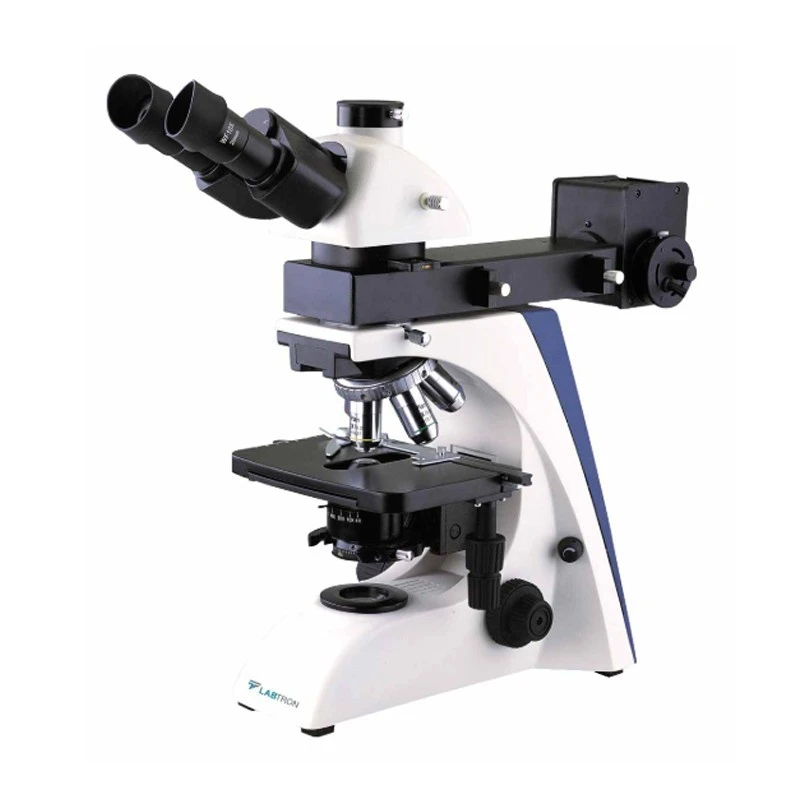

Metallurgical Microscope EMM-B10
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Dimension | 770×370×460 mm |
| Net Weight | 17.5 kg |
| Model | LMM-B10 |
| Gross Weight | 18.5 kg |
| Type of Product | Microscope |
| Filter | Blue |
| Condenser | Abbe N.A. 1.25 (iris diaphragm) |
| Illumination | 12V/50W Halogen lamp (Reflection illumination) / 6V/20W Halogen lamp (Transmission illumination) |
| Focusing | Coarse and fine focusing adjustment — Coarse stroke — 25 mm / Fine stroke per rotation — 0.2 mm / Fine division — 2 µm / Tightness adjustment / upper distance limiter |
| Eyepiece | WF10X/22 mm (reticle 0.1 mm) |
| Objective | Metallurgical LWD infinity plan objectives — LPL5×/0.10 WD equal to 24.23 mm / LPL10×/0.25 WD equal to 18.48 mm / LPL20×/0.40 WD equal to 8.35 mm / LPL50×/0.70 WD equal to 1.95 mm |
| Viewing Head | Siedentopf type trinocular head / inclined at 30° / Rotable 360° / interpupillary distance — 48-76 mm |
| Nosepiece | Quintuple nosepiece |
| Stage | Stage size — 182×140 mm / Travel range — 77×52 mm / Two slide holders |
Key Features
- Siedentopf type trinocular head
- Metallurgical LWD infinity plan objectives
- Quintuple nosepiece
- Eyepiece WF10X/22 mm/ WF10X/22 mm (reticle 0.1 mm)
- Blue filter
- 12V/6V halogen lamp as source of illumination
Product Description
Metallurgical Microscope LMM-B10 is designed to meet the performance demands of the metal and alloy engineering industry. This metallurgical microscope has a Siedentopf type trinocular head inclined at 30°. It features superior coaxial coarse and fine focusing knobs for sample examination. The microscope can also be used as a measuring instrument for evaluating thin metal films, electroplating coatings, and other opaque films.
Applications:
Metallurgical microscopes have applications in the fields of alloy and metal engineering industries, as well as the mineral industry. They are used for the inspection of thin metal plates, electric circuits, opaque metals, and minerals.
Optional Accessories:
- Metallurgical LWD Infinity Plan Objective: 40x, 80x, 100x
- C-Mount: 1X, 0.57X (Focus Adjustable)
- Filter: Green, Amber, Grey
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a Siedentopf type trinocular head inclined at 30°, allowing for comfortable viewing and rotation up to 360°.
The microscope has dimensions of 770×370×460 mm and a net weight of 17.5 kg.
It utilizes a 12V/50W halogen lamp for reflection illumination and a 6V/20W halogen lamp for transmission illumination.
It comes with a WF10X/22 mm eyepiece that includes a reticle with a scale of 0.1 mm.
It includes metallurgical LWD infinity plan objectives with magnifications of 5x, 10x, 20x, and 50x, each with specific working distances.
It is designed for use in the metal and alloy engineering industry, particularly for inspecting thin metal plates and opaque materials.
It features an Abbe condenser with a numerical aperture of 1.25 and an iris diaphragm for improved contrast and clarity.
The gross weight of this model is 18.5 kg.
It is manufactured in the UK.
