Metallurgical Microscope EMM-A10
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Power Supply | 100V to 240V / AC50/60Hz |
| Dimension | 570×280×370 mm |
| Model | LMM-A10 |
| Optical System | Infinite optical system / tube length 180mm / parfocal 45mm |
| Weight | 13 kg |
| Type of Product | Microscope |
| Eyepiece | PL10×/22mm wide field plan eyepiece |
| Viewing Head | Siedentopf trinocular / 30° inclination / 54mm to 75mm interpupillary distance |
| Stage | Double layer mechanical stage / size 175mm×145mm |
| Objective Lenses | 5× / 10× / 20× / 50× / 100× / BF / WD ranging from 2.10mm to 10.80mm |
| Maximum Sample Height | 28mm (transmitted & reflected frame) |
| Reflected Illumination | 5W LED / warm color / Koehler illuminator |
Key Features
- Koehler dual illumination system
- Enhanced contrast with polarizing filter
- Double-layer stage for smooth movement
- Backward quintuple nosepiece rotation
- Coaxial focusing for fine adjustments
- Double-layer mechanical stage
Product Description

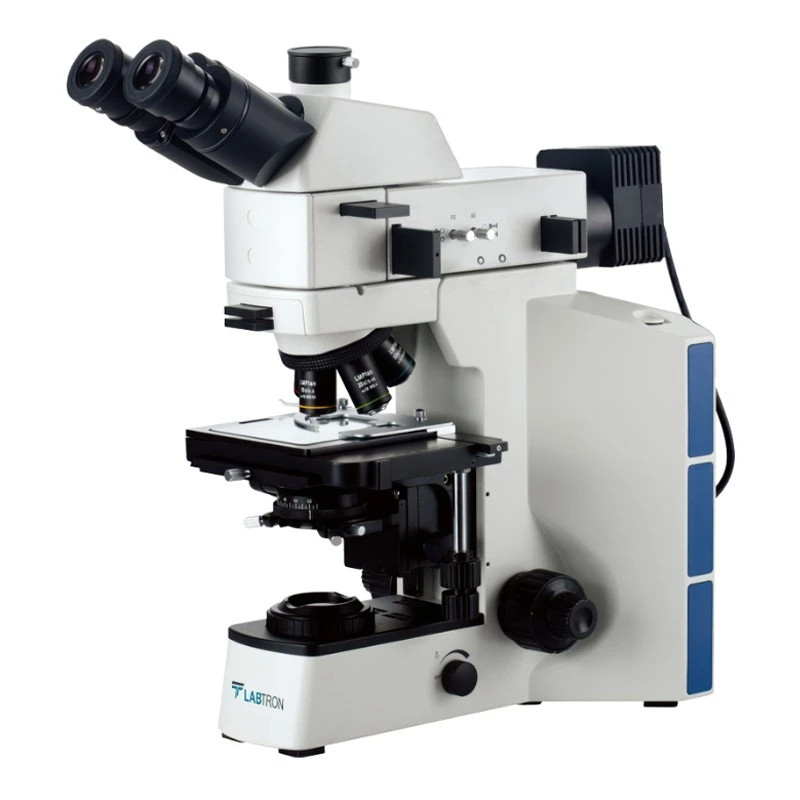

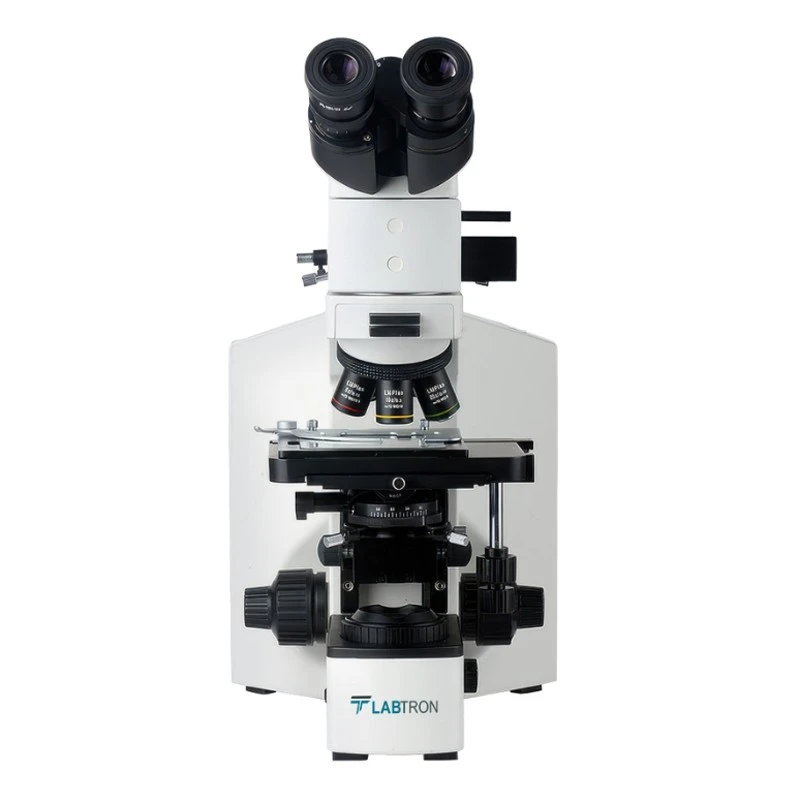

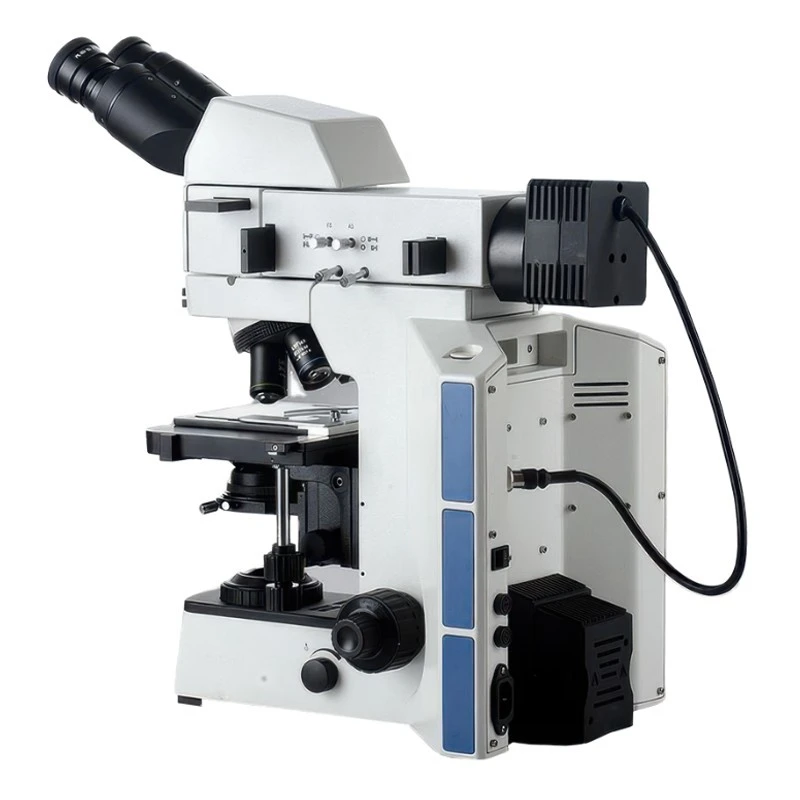

Metallurgical Microscope LMM-A10 is equipped with an infinite optical system, providing 180mm tube length and 45mm parfocal distance. It has a Siedentopf trinocular viewing head, inclined at 30° with an interpupillary distance of 54mm to 75mm. The stage supports samples up to 28mm high, with a coaxial focus system and up-limit device. The swing-out condenser system enhances transmitted light for better observation. This microscope is ideal for studying metals, alloys, ceramics, and non-metallic materials in research and industry.
Applications:
Our Metallurgical Microscope LMM-A10 is ideal for metallurgical research, material analysis, and quality control. It ensures high-resolution imaging for metal structures, coatings, and surface defects in industrial and forensic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features an infinite optical system with a tube length of 180mm and a parfocal distance of 45mm.
This model is suitable for studying metals, alloys, ceramics, and non-metallic materials in research and industry.
The microscope can support samples up to 28mm in height.
The dimensions are 570×280×370 mm.
It uses a 5W LED warm color Koehler illuminator for reflected illumination.
The weight of this model is 13 kg.
It requires a power supply of 100V to 240V AC at 50/60Hz.
It is equipped with a Siedentopf trinocular viewing head inclined at 30° with an interpupillary distance of 54mm to 75mm.
The optical configuration includes objective lenses of 5×, 10×, 20×, 50×, and 100×, with working distances ranging from 2.10mm to 10.80mm.
It has a double-layer mechanical stage with dimensions of 175mm×145mm for smooth movement.
It is equipped with a Koehler dual illumination system and a polarizing filter to enhance contrast during observations.
It is ideal for metallurgical research, material analysis, and quality control, particularly for examining metal structures and surface defects.
