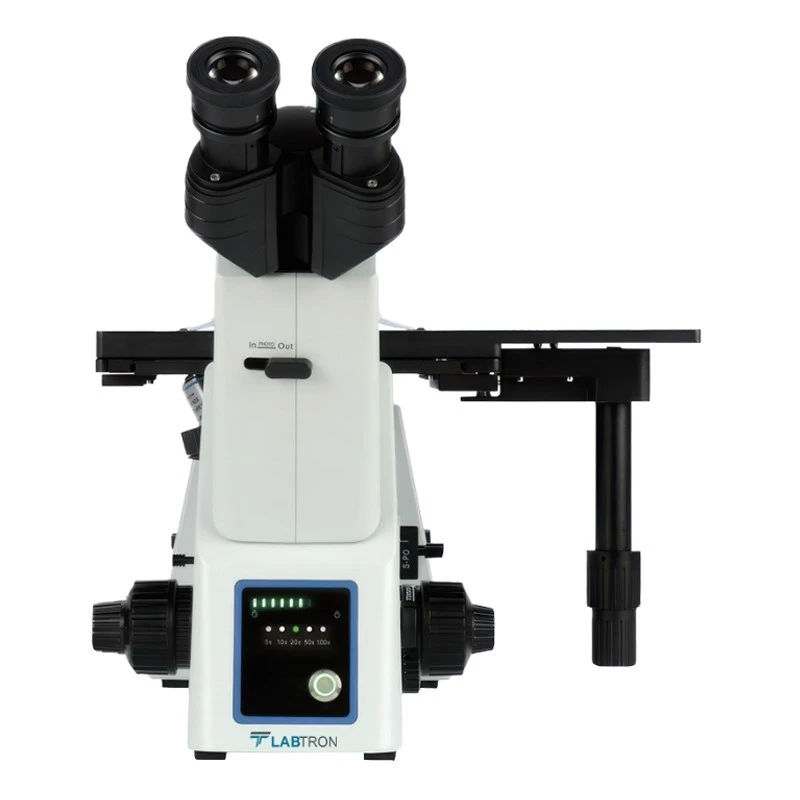

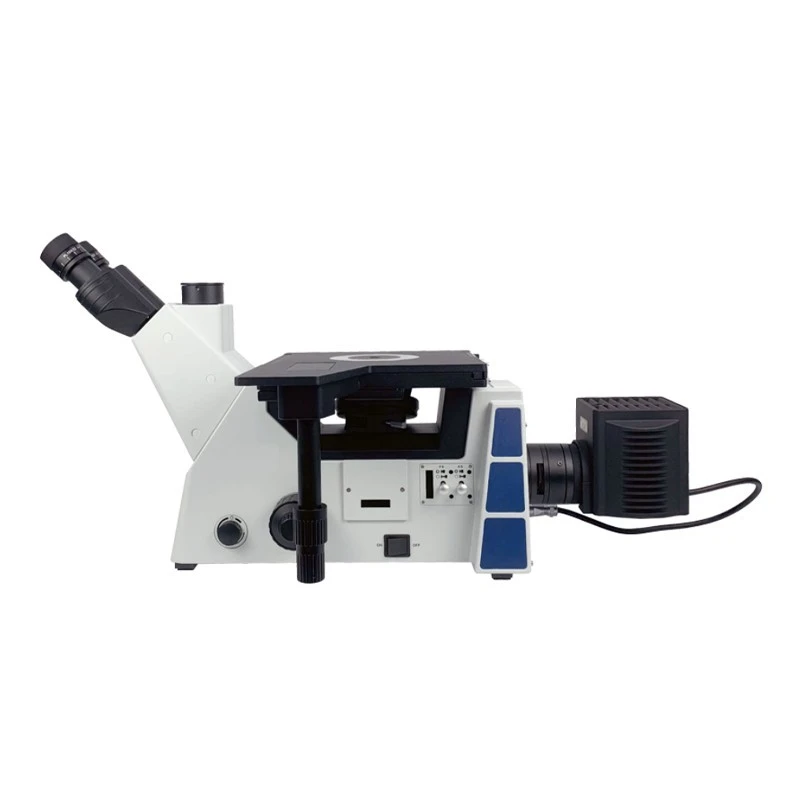

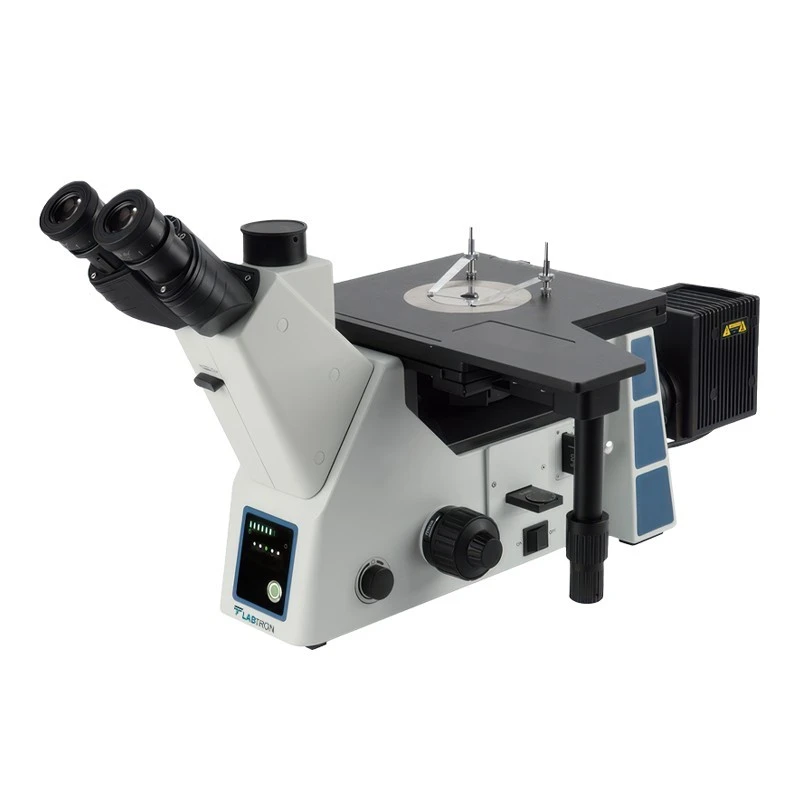

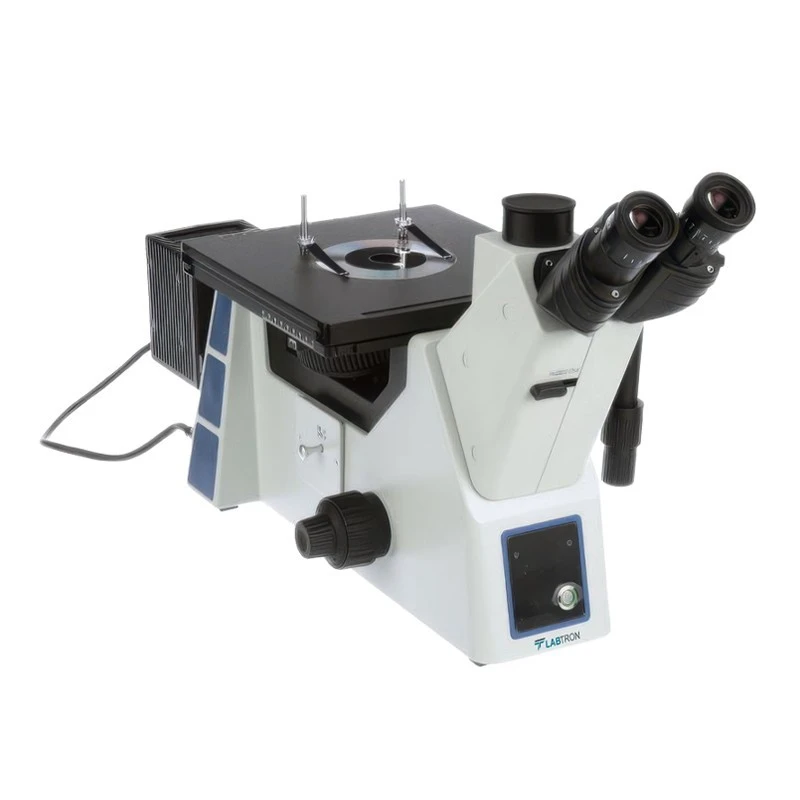

Inverted Metallurgical Microscope EIMM-C10
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Power Supply | 100V-240V |
| Net Weight | 17 kg |
| Dimensions | 660 × 590 × 325 mm |
| Model | LIMM-C10 |
| Optical System | Infinite Color Corrected Optical System |
| Filters | LBD color filter |
| Type of Product | Microscope |
| Illumination | Halogen light box / 12V/100W |
| Eyepiece | PL10X/22mm / adjustable diopter |
| Viewing Head | 45° gemel trinocular tube / 360° rotatable |
| Nosepiece | Inward quintuple / with DIC slot |
| Focusing System | Coaxial focusing / 9mm coarse / 0.002mm fine |
| Power adapter | 100V-240V input / 15V/13.4A output |
| Stage | 240mm × 250mm / 50mm × 50mm moving range |
| Objective Lenses | 5X/NA equal to 0.15 / 10X/NA equal to 0.3 / 20X/NA equal to 0.45 / 50X/NA equal to 0.55 |
| C-mount Adapter | Focus adjustable |
| Polarizer & Analyzer | 360° rotatable analyzer / with polarizer |
Key Features
- Front magnification display for clarity
- Intelligent ECO energy-saving system
- Wide field eyepiece with high eye-point
- Infinite long working distance objective
- Inward quintuple bright field nosepiece.
- Low-position coaxial focusing mechanis
- Halogen light box illumination
Product Description
Inverted Metallurgical Microscope LIMM-C10 provides 5x to 50x magnification with long working distance objectives. It includes wide field plan eyepieces (PL10x/22mm) with adjustable diopter. The trinocular viewing head is 360° rotatable, and the stage offers a 50mm × 50mm moving range. The microscope also features a backward nosepiece with a built-in magnification sensor and coaxial focusing. It is perfect for material analysis, quality control, and metallurgical inspections in laboratory environments.
Applications:
Our Inverted Metallurgical Microscope LIMM-C10 is ideal for material science labs, metallurgical investigations, and industrial applications, perfect for examining metal structures and microstructures.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a magnification range from 5x to 50x using long working distance objectives.
This unit features halogen light box illumination with a 12V/100W power rating.
The microscope has dimensions of 660 × 590 × 325 mm and weighs 17 kg.
It utilizes an infinite color corrected optical system for enhanced clarity.
Yes, the trinocular viewing head is 360° rotatable and positioned at a 45° angle.
It includes objective lenses of 5X, 10X, 20X, and 50X with corresponding numerical apertures.
The microscope comes with PL10X/22mm eyepieces that have an adjustable diopter.
This model is ideal for material analysis, quality control, and metallurgical inspections in laboratory environments.
It operates with a power supply of 100V-240V.
