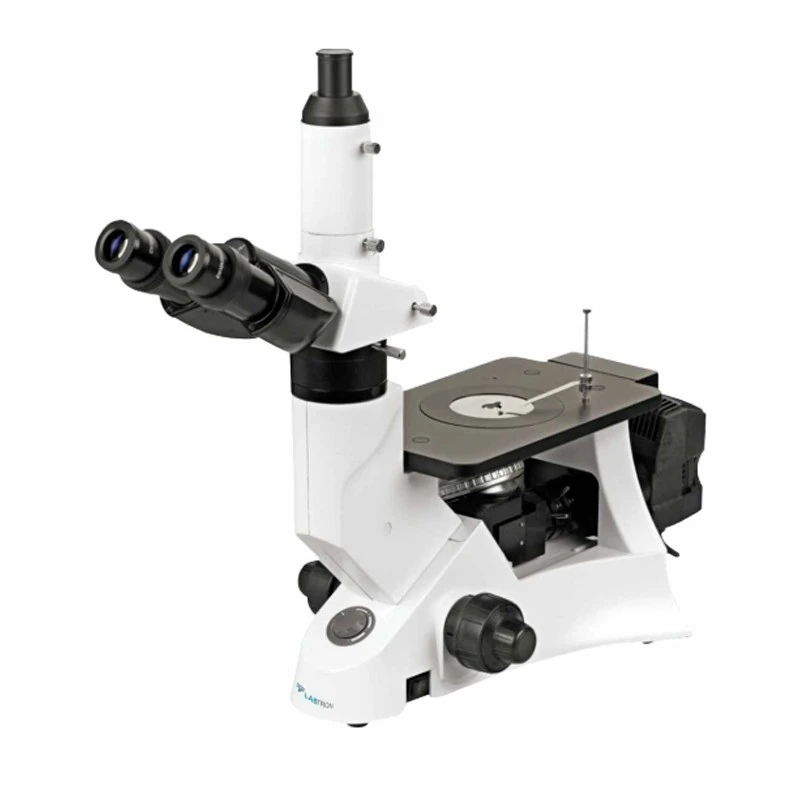

Inverted Metallurgical Microscope EIMM-B10
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Dimension | 460×400×670 mm |
| Net Weight | 13 Kg |
| Model | LIMM-B10 |
| Gross Weight | 15 Kg |
| Type of Product | Microscope |
| Filter | Blue / green / yellow / ground glass |
| Illumination | Halogen lamp 6V/30W |
| Focusing | Coaxial coarse & fine focusing adjustment with Vertical objective movement. Coarse stroke 37.7 mm per rotation / Fine stroke 0.2 mm per rotation |
| Eyepiece | High point / extra wide field eyepiece EW10X/20 mm |
| Objective | Infinite plan achromatic objectives — 4×0.1/∞ — WD17.3 mm / 10×0.25/∞ — WD10 mm / 20×0.4/∞ — WD5.8 mm / 40×0.65/∞ — WD0.52 mm |
| Viewing Head | Trinocular head / inclined at 30º / Interpupillary distance 48-75 mm |
| Nosepiece | Quintuple nosepiece |
| Stage | Plain stage with slide clips |
| Polarizing Outfit | Polarizer & analyzer |
Key Features
- Trinocular head, inclined at 30°
- High point, extra wide field eyepiece EW10X/20 mm
- Vertical objective movement for focusing
- Halogen lamp 6V/30W as illumination source
- Infinity plan achromatic objectives
- Quintuple nosepiece
Product Description
Inverted Metallurgical Microscope LIMM-B10 has a 30° inclined trinocular head. It features superior coaxial coarse and fine focusing adjustment with vertical objective movement. This microscope comes with a plain stage and slide clips. It is designed to observe, identify, and analyze the structures of metals and alloys. It is primarily used to view and study opaque objects.
Applications:
Our Inverted Metallurgical Microscope LIMM-B10 is widely used in the field of alloy and metal engineering industries, as well as the mineral industry. This metallurgical microscope can also be used for the inspection of semiconductor chips and integrated circuits.
Optional Accessories:
- Objective: 5×0.12/∞/- WD15.4 mm
- Objective: 40×0.6/∞/0 WD2.9 mm
- Objective: 50×0.75/∞/0 WD0.32 mm
- Objective: 80×0.9/∞/0 WD0.2 mm
- Objective: 100×0.8/∞/0 WD2.00 mm
- Video Adapter C-mount
- Photo Attachment
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It uses a halogen lamp rated at 6V/30W as the illumination source.
The dimensions are 460×400×670 mm, and it has a net weight of 13 kg and a gross weight of 15 kg.
It features a high point, extra wide field eyepiece rated at EW10X/20 mm.
It includes infinite plan achromatic objectives with magnifications of 4×, 10×, 20×, and 40×, each with specific working distances.
The microscope features a trinocular head inclined at 30º with an interpupillary distance adjustment of 48-75 mm.
It has a plain stage equipped with slide clips for securing samples during observation.
It is equipped with a quintuple nosepiece that allows for quick changes between objectives.
It is primarily used in alloy and metal engineering industries, as well as for inspecting semiconductor chips and integrated circuits.
Optional accessories include various objectives (5×, 40×, 50×, 80×, and 100×) and a video adapter C-mount photo attachment.
The Inverted Metallurgical Microscope EIMM-B10 is manufactured in the UK.
