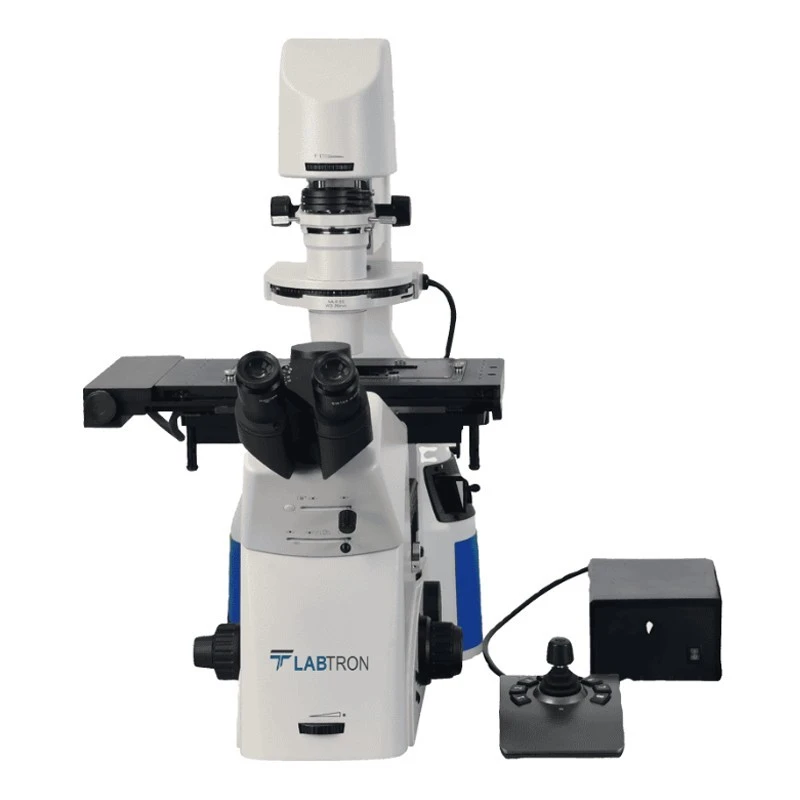

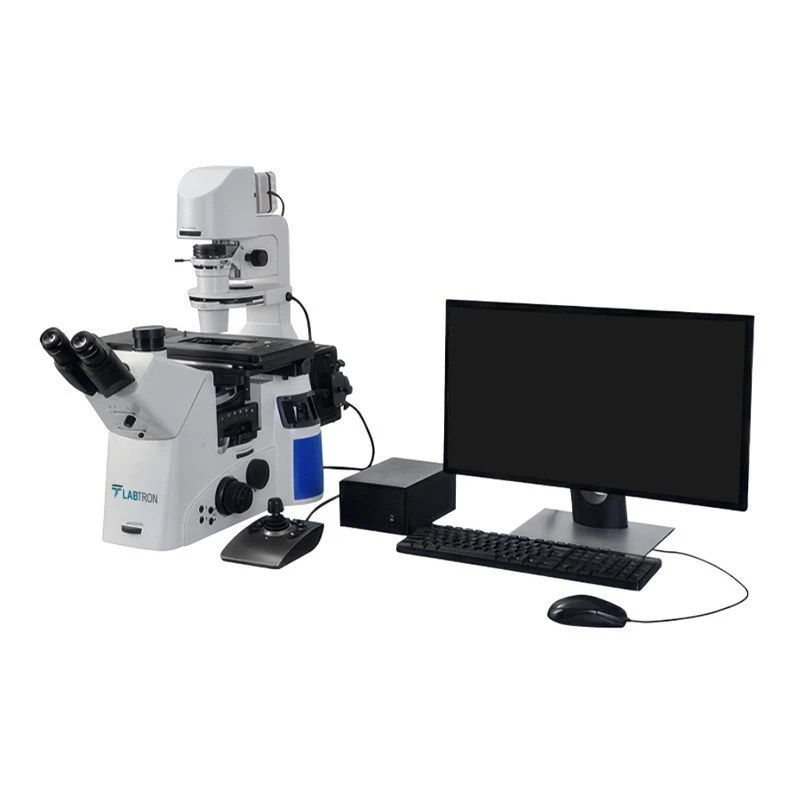

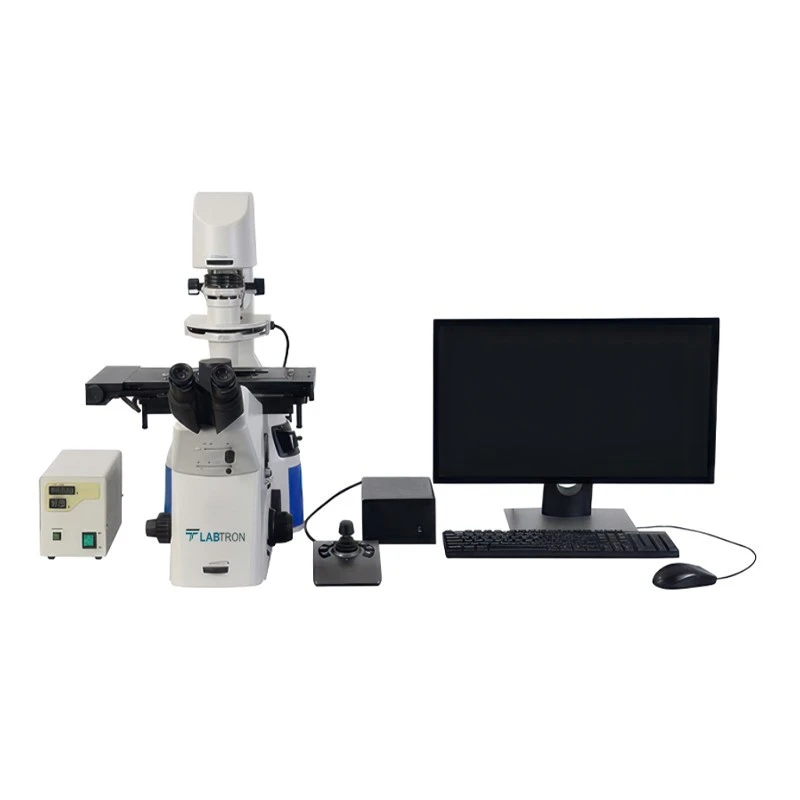

Inverted Fluorescence Microscope EIFM-B10
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Model | LIFM-B10 |
| Optical System | NIS60 Infinite optical system |
| Type of Product | Microscope |
| Condenser | Motorized long working distance condenser / NA 0.55 / WD 26mm / with 6-position plate |
| Focusing | Motorized auto-focus / independent left/right hand wheels / three-speed adjustment / focusing range 9mm / repeat positioning accuracy — 0.1μm / motorized escape and recovery |
| Eyepiece | SW10X/25mm / Ø30mm |
| Viewing Head | Trinocular head with Bertrand lens / inclined at 45° / Interpupillary 47-78mm / 3-position beam split ratio — 50/50 / 100/0 / 0/100 |

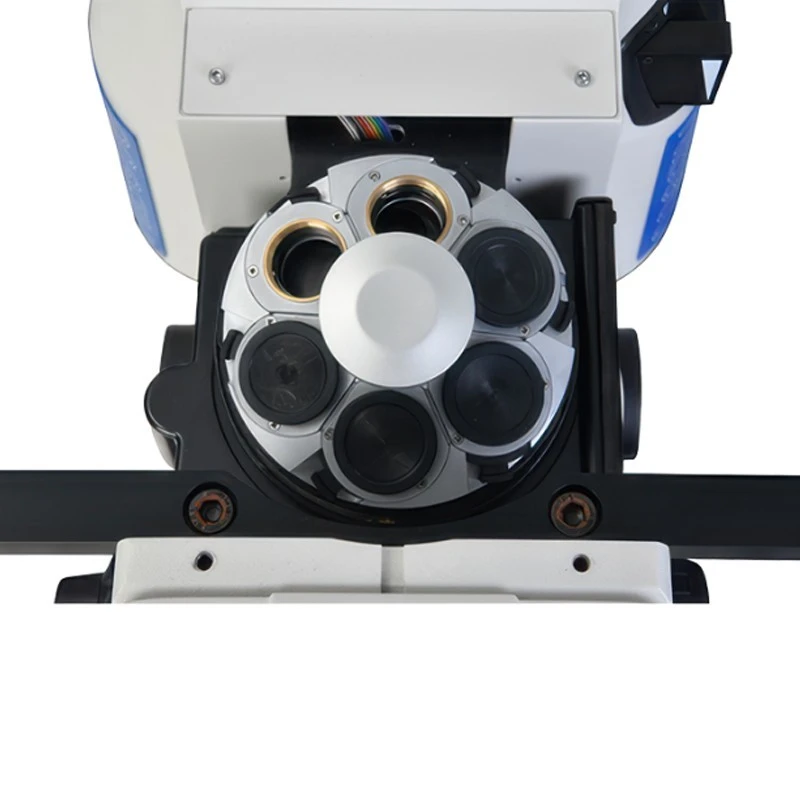

| Nosepiece | Motorized 6-hole nosepiece with DIC slot (for transmitted and reflected) |
| Fluorescent attachment | Epi-fluorescence with 5W LED lamp / B/G/UV filters (100V-240V) / field diaphragm / center adjustable |

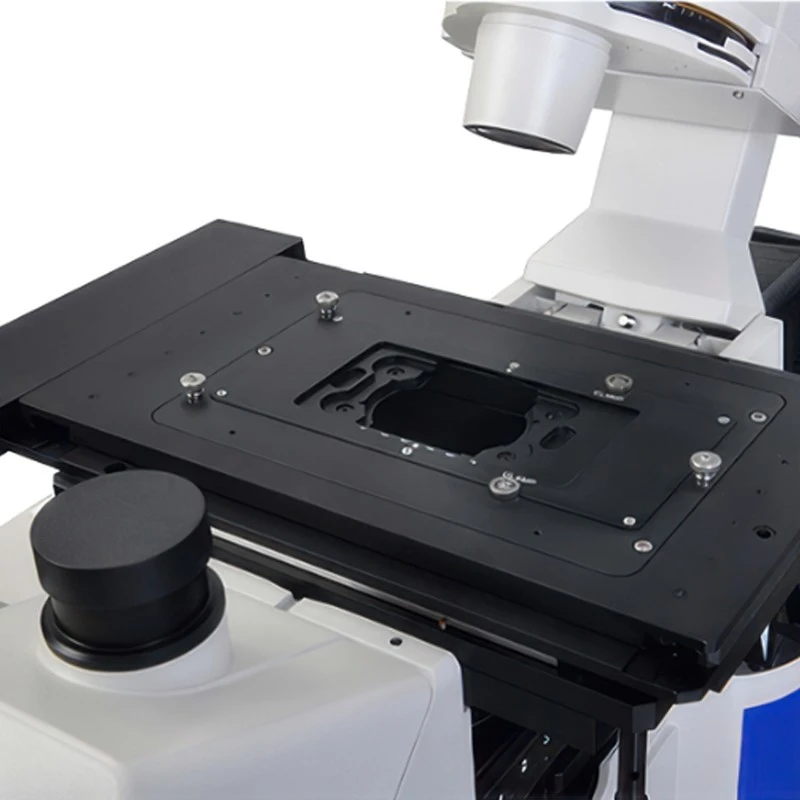

| Stage | Motorized three-layer mechanical stage / size — 340×230mm / movement range — 130(X)×100(Y)mm / flexible knob / attachable small stages |
| Transmitted Illumination | 5W LED illumination (service life — minimum 50 /000 hours) |
| C-mount Adapter | 1x C-mount Adapter |
| Internal Magnification | 1x / 1.5x |
| Side Video Port | Switchable by turning plate / 3 modes — Left side port/eyepiece equal to 50/50 / Right side port/eyepiece equal to 20/80 / Left & right side port/eyepiece equal to 0/100 |
| Motorized Filter Block | Multi-model / 6 positions / removable from the main frame for easy cube replacement |
Key Features
- Motorized condenser adjustment
- Trinocular head with Bertrand lens
- Long working distance condenser
- Epi-fluorescence LED illumination
- Motorized three-layer stage
- Multiple magnification settings
- Independent focus control
- Switchable side video port
- Removable filter cube design
Product Description
Inverted Fluorescence Microscope LIFM-B10 includes a motorized autofocusing mechanism with 0.1μm repeat positioning accuracy for clear imaging. It provides a magnification range of 100× to 400×, ensuring detailed fluorescence observation. The NIS60 infinite optical system enhances clarity and resolution for accurate analysis. A motorized 6-hole nosepiece with a DIC slot allows transmitted and reflected DIC imaging. Designed for fluorescence imaging, phase contrast studies, and live cell analysis in research laboratories.
Applications:
Our Inverted Fluorescence Microscope LIFM-B10 is ideal for observing cells and microorganisms, supporting continuous monitoring and capturing images for cytology, immunology, and genetic research.
Objective:Infinite Plan semi-APO phase contrast objective — 10x NA equal to 0.3 / WD equal to 8.1mm / Cover glass equal to 1.2mm / 20x NA equal to 0.45 / WD equal to 7.5 to 8.8mm / Cover glass equal to 0 to 2mm / 40x NA equal to 0.60 / WD equal to 3 to 4mm / Cover glass equal to 0 to 2mm
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a magnification range of 100× to 400×, allowing for detailed fluorescence observation.
It features the NIS60 infinite optical system, which enhances clarity and resolution for accurate analysis.
It includes a motorized auto-focus with independent left/right hand wheels and a focusing range of 9mm, achieving repeat positioning accuracy of 0.1μm.
The motorized three-layer mechanical stage measures 340×230mm and has a movement range of 130mm in the X direction and 100mm in the Y direction.
It comes with a motorized long working distance condenser with a numerical aperture of 0.55 and a working distance of 26mm.
The viewing head is a trinocular design with a Bertrand lens, inclined at 45°, and features an interpupillary distance adjustment of 47-78mm.
It features a motorized 6-hole nosepiece with a DIC slot for both transmitted and reflected imaging.
This microscope is ideal for observing cells and microorganisms, supporting continuous monitoring and image capturing for cytology, immunology, and genetic research.
It includes a SW10X eyepiece with a diameter of 25mm and a fitting size of Ø30mm.
The country of origin for this model is the UK.
