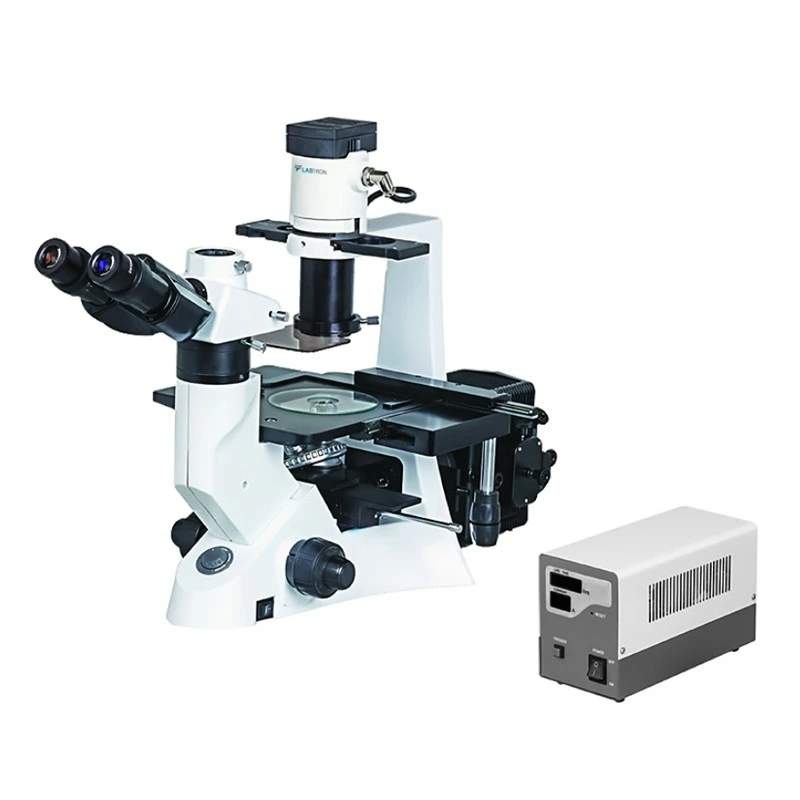

Inverted Fluorescence Microscope EIFM-A11
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Power Supply | 220 V/110 V / 50/60 Hz interchangeable / Digital display |
| Model | LIFM-A11 |
| Optical System | Infinite Optical System |
| Lamp | 100 W HBO Ultra Hi-voltage Spherical Mercury Lamp |
| Type of Product | Microscope |
| Filter | Blue / Green and Ground Glass (Φ45 mm) |
| Condenser | ELWD Condenser NA 0.3 / LWD 72mm |
| Focusing | Coaxial Coarse and Fine Adjustment | Vertical Objective Movement | Coarse Stroke 37.7 mm per rotation | Fine Stroke 0.2 mm per rotation |
| Eyepiece | High-point / Extra Wide Field Eyepiece EW10x/22 |
| Objective | LWD Infinite Plan Objective 4X/0.1 / WD 18mm | LWD Infinite Plan Objective 40X/0.6 / WD 2.6mm | Infinite Plan Phase Objective PH 10X/0.25 / WD 10mm | Infinite Plan Phase Objective PH 20X/0.4 / WD 5.1mm |
| Viewing Head | Trinocular Head Inclined at 30° / Interpupillary distance — 48 to 75 mm |
| Nosepiece | Quintuple nosepiece |
| Immersion Oil | Fluorescent Free Oil |
| Stage | Plain stage 160x250 mm | Glass Insert | Auxiliary Stages 70x180 mm |
| Light Distribution | Halogen Lamp 6V / 30W |
| EPI Fluorescent Attachment Kits | Blue & Green reflected light source |
| Protection Barrier | Barrier to Resist the Ultraviolet Light |
| Blue Excitation | Excitation — BP460 to 490 | Dichroic mirror — DM500 | Barrier filter — BA520 |
| Green Excitation | Excitation — BP480 to 550 | Dichroic mirror — DM570 | Barrier filter — BA590 |
| Carton One Packaging Dimension | 460 x 400 x 680 mm |
| Carton One Weight | 15 kg |
| Carton Two Packaging Dimension | 445 x 370 x 250 mm |
| Carton Two Weight | 6 kg |
Key Features
- Standard magnification range of 40X to 400X
- Infinite optical system and EPI-fluorescent illumination system
- Excellent fluorescent image with high resolution fluorescent objectives
- Equipped with LWD Infinite Plan Objectives, and Infinite Plan Phase
- Objectives
- Up-right photo port for photographic/video capability
- Advanced lamp housing to prevent light leakage
- Halogen lamp as illumination source with Blue/ Green and Ground Glass filter C-mount video adapter
- Ultra Hi-voltage Spherical Mercury Lamp with protection barrier
- High-efficient, durable and stable inverted microscope
Product Description
Inverted Fluorescence Microscope LIFM-A11 is an advanced Infinite Plan EPI-fluorescent microscope, offering a standard magnification range of 40X to 400X. Incorporated with LWD Infinite Plan Objectives and EPI-fluorescent blue and green reflected light sources, this microscope delivers excellent fluorescent images with high resolution. It is equipped with a halogen lamp as the illumination source, along with Blue/Green and Ground Glass filters, and an ultra Hi-voltage Spherical Mercury Lamp with a protection barrier.
Applications:
Inverted Fluorescence Microscope is used for fluorescence imaging of cell lines, tissue culture materials, and biological samples. It visually enhances 3-D features at small scales and is widely used across biology, medicine, immunology, oncology, genetics, histopathology, and materials science.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard magnification range is from 40X to 400X.
It utilizes an Infinite Optical System.
It includes a halogen lamp and an ultra Hi-voltage Spherical Mercury Lamp as illumination sources.
The plain stage measures 160 x 250 mm and includes a glass insert.
The power supply is interchangeable at 220 V/110 V and operates at 50/60 Hz with a digital display.
It includes LWD Infinite Plan Objectives and Infinite Plan Phase Objectives with various specifications such as 4X/0.1 and 40X/0.6.
It is used for fluorescence imaging of cell lines, tissue culture materials, and biological samples, and is applicable in fields like biology, medicine, immunology, and oncology.
The interpupillary distance can be adjusted from 48 to 75 mm.
It is equipped with a high-point, extra wide field eyepiece EW10x/22.
