Digital Inverted Microscope EIDM-A10
Specifications
| Country of Origin | UK |
|---|---|
| Output | Bluetooth 4.2 / USB 3.0 / HDMI / WiFi / and WAN |
| Brand | Generic Brand |
| Dimension | 515 x 480 x 315 mm |
| Power | DC 12V/2A |
| Net Weight | 7 Kg |
| Model | LIDM-A10 |
| Optical System | OTICS Infinity optical system |
| Gross Weight | 9 kg |
| Type of Product | Microscope |
| Filter | Green (Φ21 mm) |
| Condenser | Long working distance condenser / N.A. 0.32 / working distance 48 mm |
| Display Screen | 11.6" 1920 x 1080 IPS screen |
| Illumination | 5W LED / Input voltage 100 to 240 |
| Camera Resolution | 3072 x 2048 |
| Objectives | 4x/N.A. 0.11 / WD equal to 12.1mm / 10x/N.A. 0.25 / WD equal to 10.3mm / 20x/N.A. 0.45 / WD equal to 5.8mm / 40x/N.A. 0.65 / WD equal to 5.1mm |
| Eyepiece | Wide field eyepiece 10x/22 mm / Adjustable Diopter |
| Viewing Head | 45° Trinocular seidentopf head / interpupillary distance — 48 to 76 mm / Splitting ratio — 100 — 0 or 80 — 20 / Eyepiece tube diameter — 30 mm |
| Nose-piece | Quadruple nosepiece |
| Operation System | Windows 10 / 64 bit |
| Stage | Size — 180x155 mm / Moving range — 75x40 mm / Scale — 0.1 mm / round slide size Φ110 mm |
| C-mount | 0.65 x (built-in) |
| Phase Annuls | 10x/20x/40x |
| Display Pixel | 1.335µm x 1.335µm |
| Camera Sensor | SONY IMX178 color CMOS |
| Camera Scanning Mode | Rolling |
| Camera Sensor Size | 1/1.8" (diagonal 8.923mm) |
| Camera Frame Rate | 59 FPS at 3072 x 2048 / 59 FPS at 1536 x 1024 |
| Camera White balance | ROI/Temp-Tint |
| Camera Store | Image and Video |
| Camera Cooling Mode | Natural Cooling |
Key Features
- High-resolution angle adjustable screen
- Illumination can powered with power bank, laptop and vehicle
- Wireless connectivity
- Flexible integration with other devices
- Precise imaging by rolling shutter
Product Description

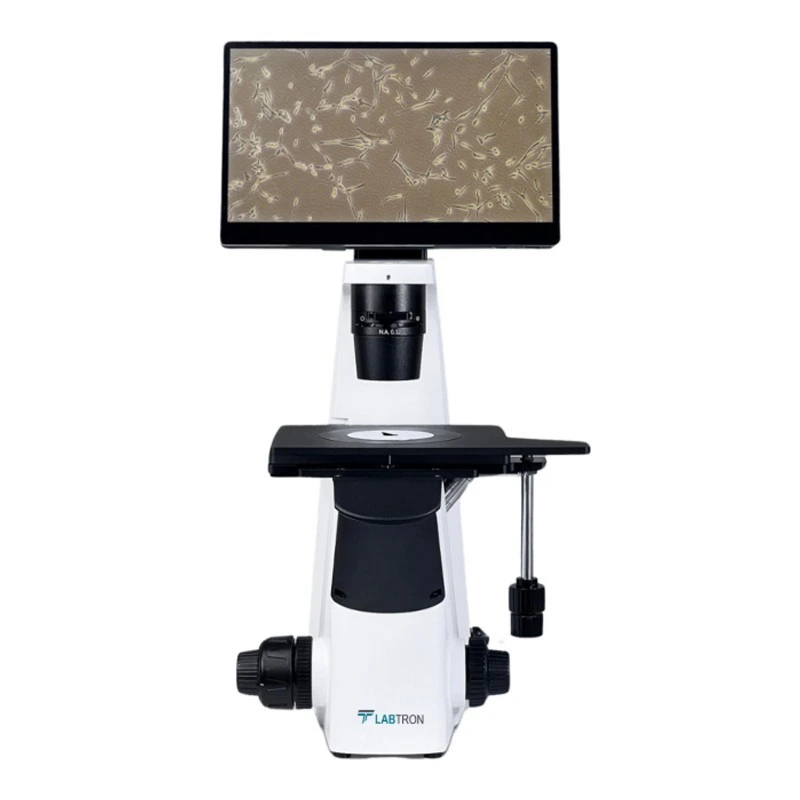

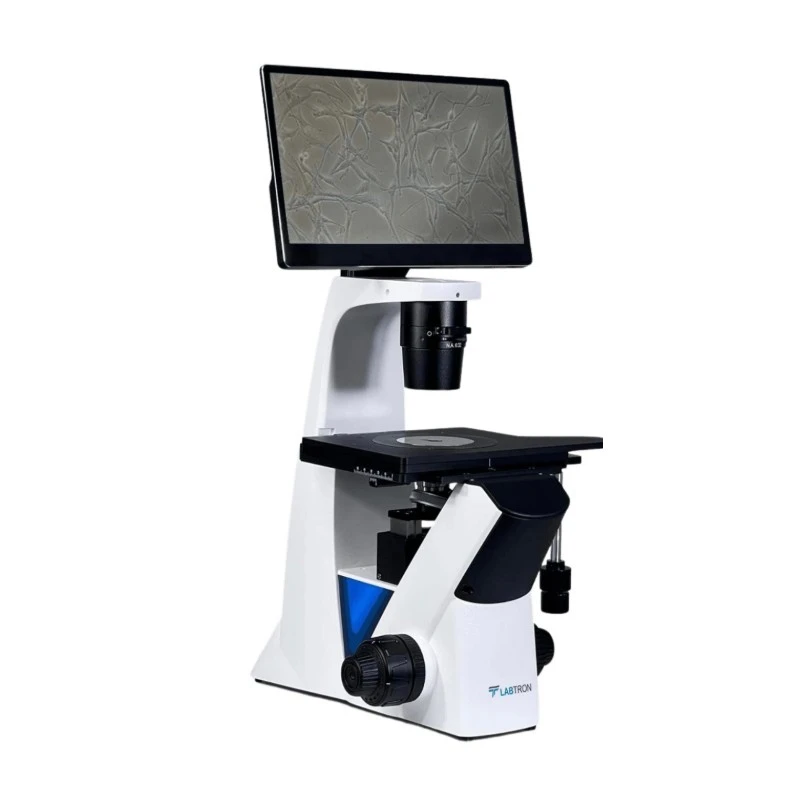

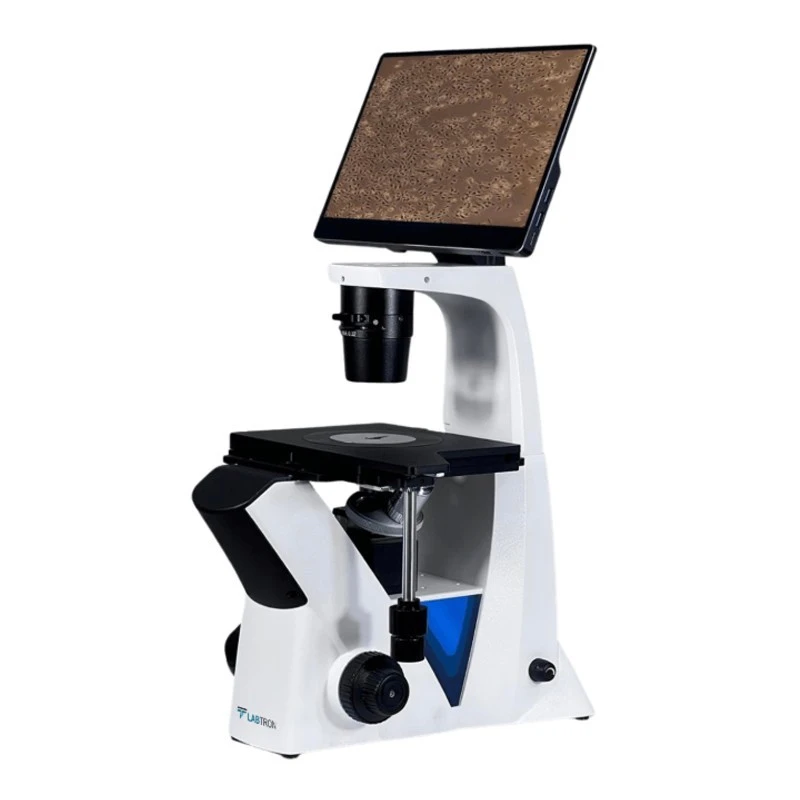

Digital Inverted Microscope LIDM-A10 is an advanced optical microscope designed to deliver 40x to 400x magnification. It integrates a tablet camera for high-quality image analysis, enabling real-time capture and video recording. The microscope has a Windows 10 system and offers extensive connectivity options for seamless operation. Its 11.6-inch HD IPS display panel provides wide viewing angles. Our Digital Microscope is ideal for live cell imaging and recording, tissue culture studies, and more.
Applications:
Our Digital Inverted Microscope LIDM-A10 is designed for the user-friendly observation of specimens through a digital screen without visual fatigue. It can be placed inside a cell culture cabinet, convenient for cell culture inside the cover and effectively reducing cell contamination.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It utilizes an OTICS Infinity optical system, which is designed for enhanced imaging capabilities.
The microscope has dimensions of 515 x 480 x 315 mm and a net weight of 7 kg.
The camera resolution is 3072 x 2048, enabling high-quality image capture and video recording.
It requires a DC power supply of 12V/2A, with an input voltage range of 100 to 240V.
It features an 11.6-inch HD IPS display panel with a resolution of 1920 x 1080, providing wide viewing angles.
The stage size is 180 x 155 mm, with a moving range of 75 x 40 mm and a scale of 0.1 mm.
It includes objective lenses of 4x, 10x, 20x, and 40x, each with specific numerical apertures and working distances.
It uses a 5W LED illumination system, which is suitable for various applications.
The microscope operates on Windows 10, 64-bit, allowing for extensive software compatibility.
Its design allows for user-friendly observation through a digital screen, making it suitable for live cell imaging and tissue culture studies.
