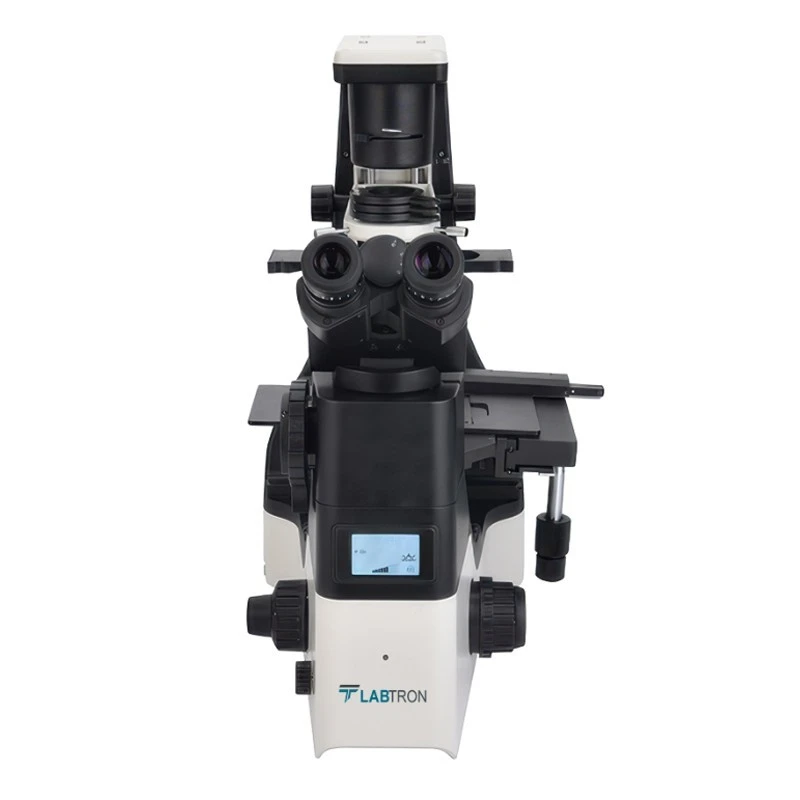

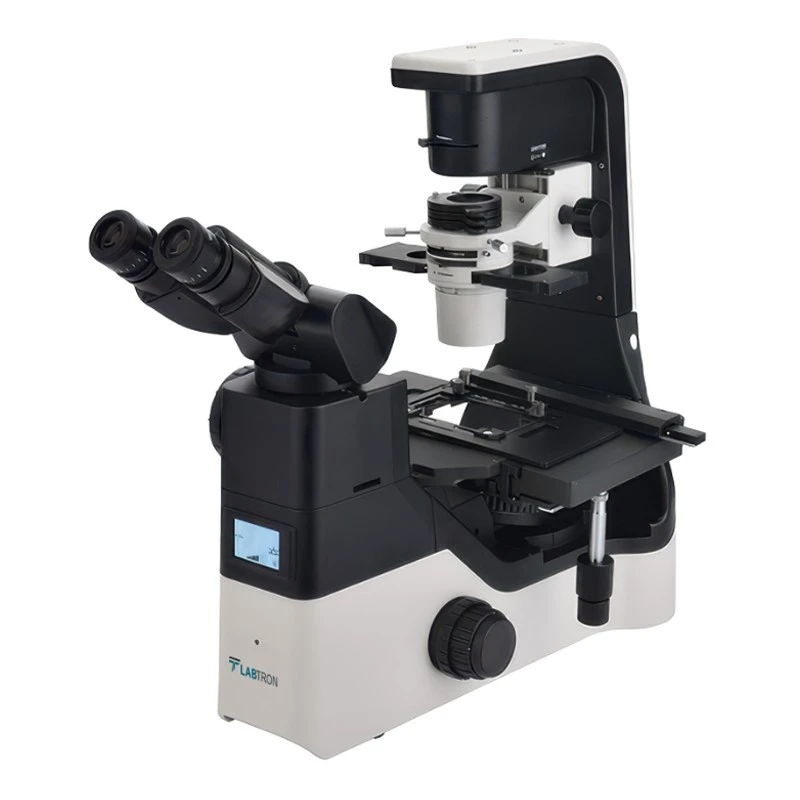

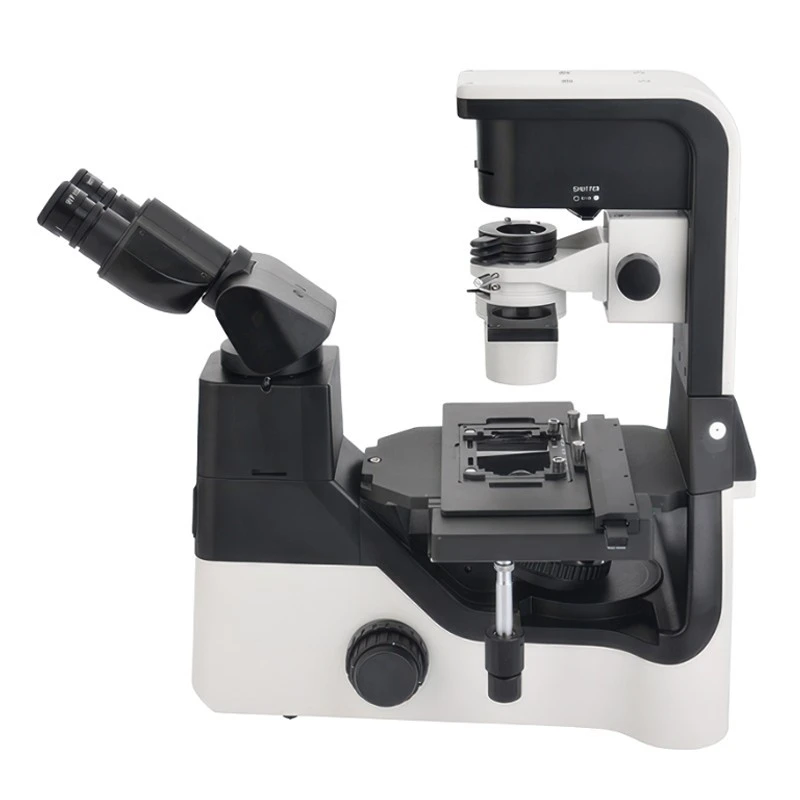

Inverted Biological Microscope EIBM-H10
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Power Supply | AC 100-240V / 50/60Hz |
| Net Weight | 18 Kg |
| Model | LIBM-H10 |
| Optical System | NIS 60 Infinite Optical System / Tube length 200mm |
| Gross Weight | 20 Kg |
| Type of Product | Microscope |

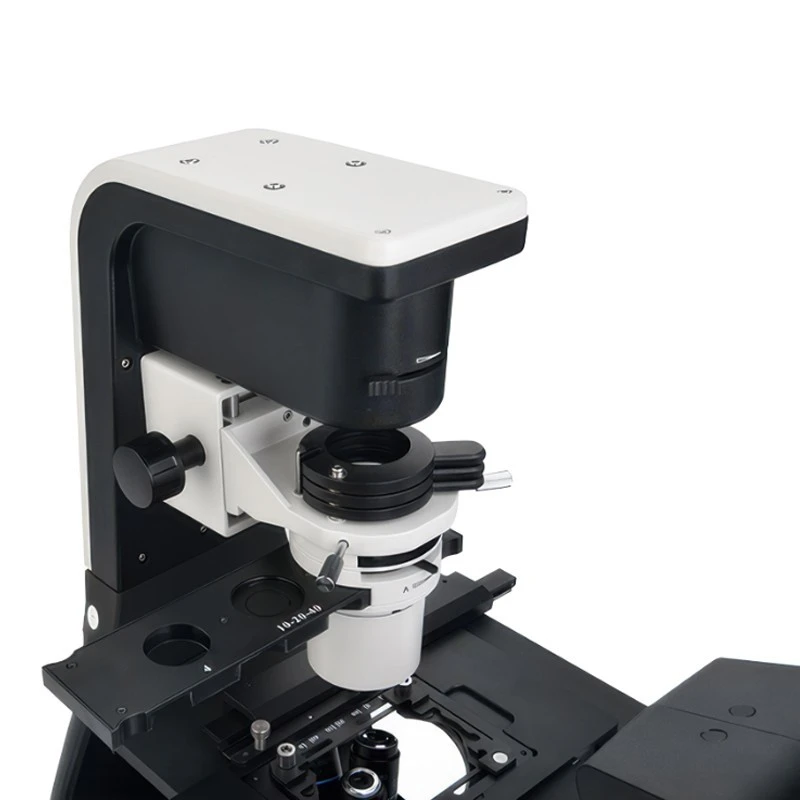

| Condenser | Long Working Distance Condenser / N.A. 0.3 / WD 75mm |
| Magnification | 4x / 10x / 20x / 40x |
| Focusing | Coaxial Coarse and Fine Adjustment / Tension Adjustment / Fine Division 0.001mm |
| Eyepiece | SW10x/22mm |
| Objective | NIS60 Infinite LWD Plan Achromatic 4x/0.1 / WD equal to 30mm | NIS60 Infinite LWD Plan Phase Contrast 10x/0.25 / WD equal to 10.2mm | PH20x/0.40 / WD equal to 12mm | PH40x/0.60 / WD equal to 2.2mm |
| Viewing Head | Seidentopf Tilting Binocular Head / 5° to 35° adjustable / Interpupillary Distance 48-75mm |
| Nosepiece | Coded Quintuple Nosepiece |
| Fuse | T250V500mA |
| Packaging Dimension | 690 x 390 x 640mm |
| Phase Annulus | 10x-20x-40x Phase Annulus Plate (center adjustable) |
| Telescope | Centering Telescope — used to adjust the center of phase annulus |
| Transmitted Illumination | 3W S-LED / Brightness Adjustable |
| C-mount Adapter | 1× C-mount Adapter (focus adjustable) |
Key Features
- Easy-to-operate control mechanisms
- Automatic brightness adjustments
- Compact, stable body design
- Centering telescope for phase adjustment
- Anti-UV coating for protection
- LCD screen for mode display
- Phase contrast observation method
- Long working distance condenser
Product Description
Inverted Biological Microscope LIBM-H10 includes a Seidentopf Tilting Binocular Head with an adjustable 5° to 35° tilt range. It provides a 48-75mm interpupillary distance for enhanced user comfort. The microscope is designed with four objectives, including the LWD Plan Achromatic 4x, offering a 30mm working distance. A coded quintuple nosepiece allows seamless and efficient objective changes. This microscope is suitable for biological research, live cell imaging, and fluorescence microscopy applications.
Applications:
Our Inverted Biological Microscope LIBM-H10 supports live cell imaging, biological analysis, and research. It is ideal for observing living cells, microorganisms, tissues, and cellular structures.

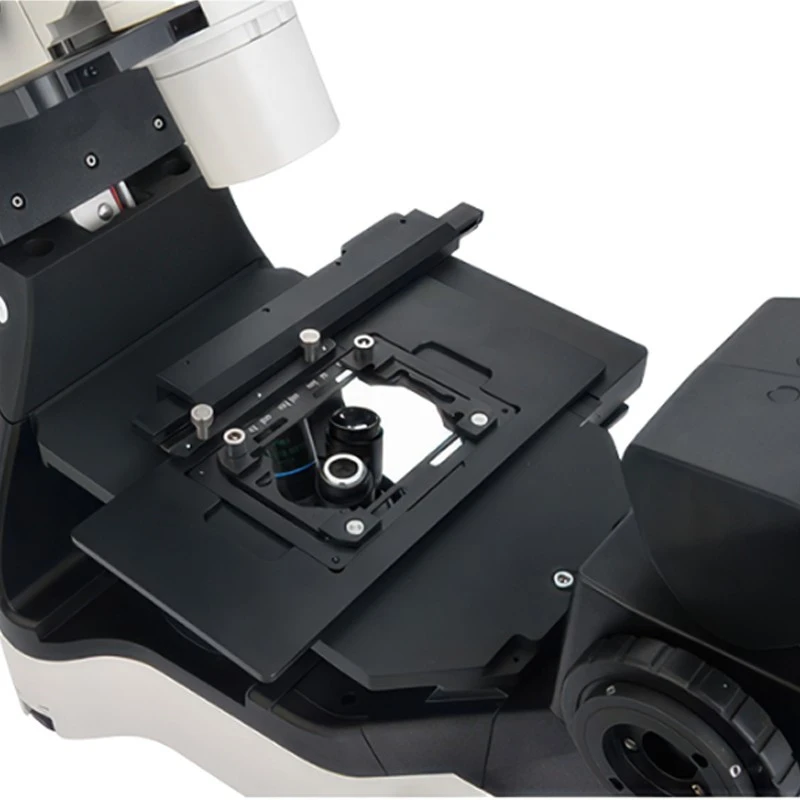

Stage:170x250mm with glass insert plate (Φ110mm) | Attachable mechanical stage / X-Y control / Moving range — 128mm×80mm / accepts 5 types of petri-dish holders / well plates / and stage clips | Universal holder for Terasaki plate / glass slides / and Φ35-65mm petri dishes
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The packaging dimensions are 690 x 390 x 640 mm, ensuring it is compact for shipping and storage.
It utilizes the NIS 60 Infinite Optical System with a tube length of 200 mm, providing high-quality imaging capabilities.
The net weight of the microscope is 18 kg, while the gross weight is 20 kg.
It features a 3W S-LED transmitted illumination system that is brightness adjustable for optimal viewing conditions.
The interpupillary distance can be adjusted from 48 mm to 75 mm, accommodating various user preferences.
The LWD Plan Achromatic 4x objective has a working distance of 30 mm, facilitating observation of thicker specimens.
This microscope is suitable for biological research, live cell imaging, and fluorescence microscopy applications.
It requires an AC power supply of 100-240V and operates at 50/60Hz.
It includes a phase annulus plate for 10x, 20x, and 40x objectives, which is center adjustable, and a centering telescope for phase adjustment.
