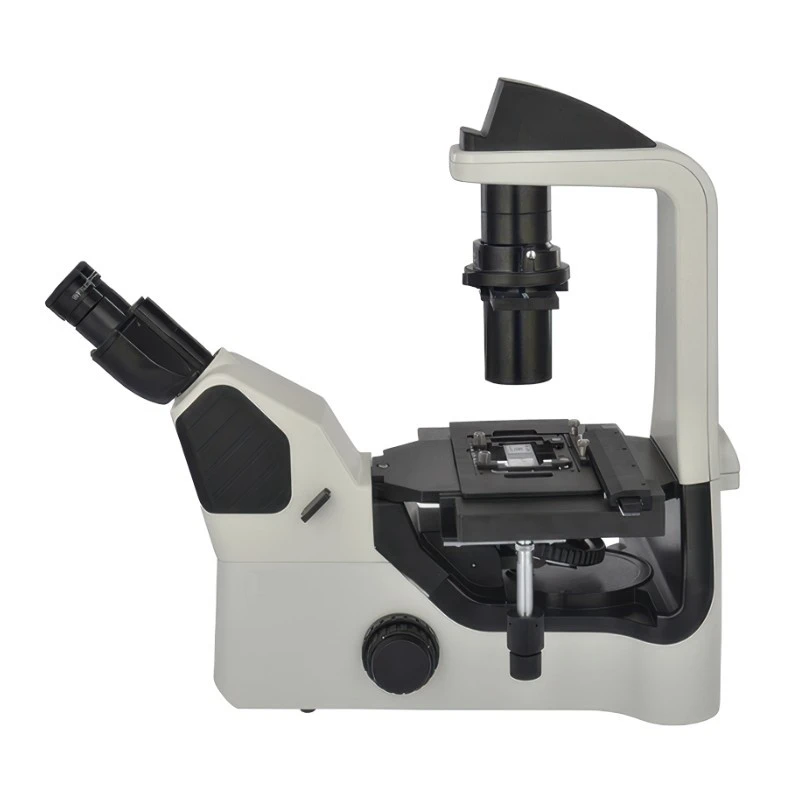

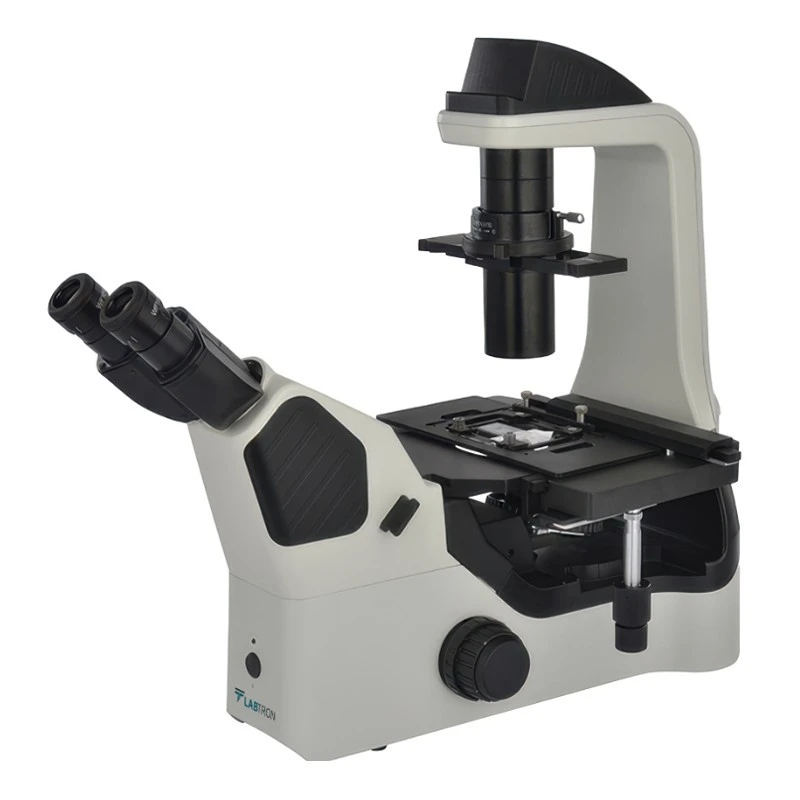

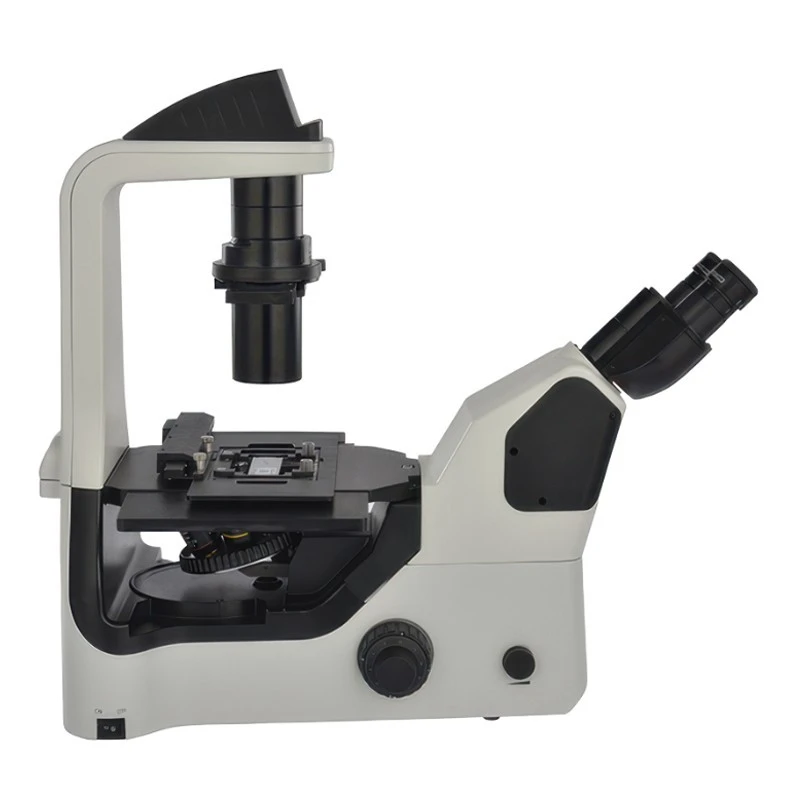

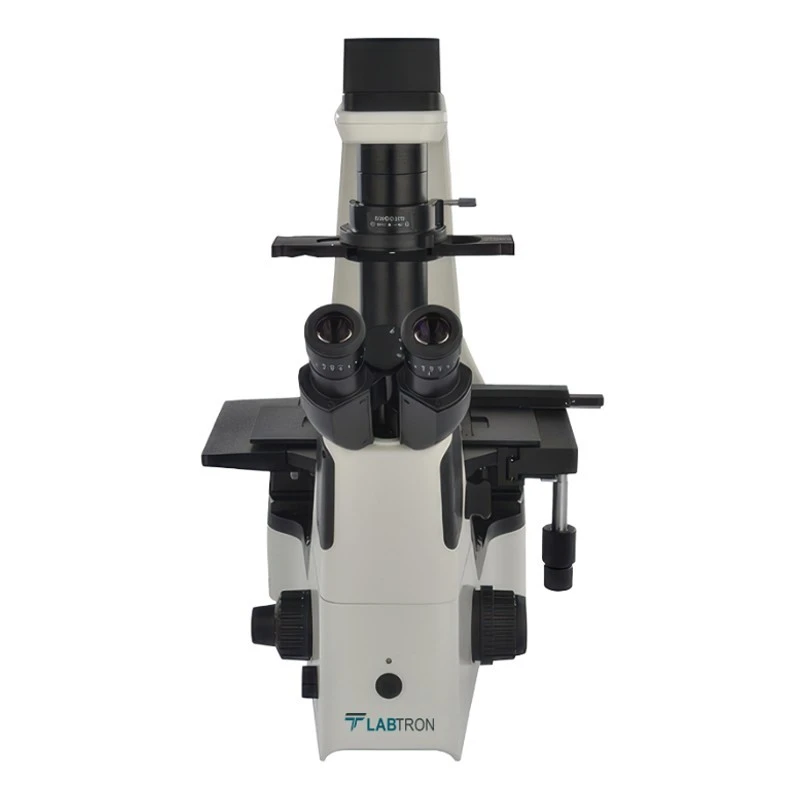

Inverted Biological Microscope EIBM-G10
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Power Supply | AC 100-240V / 50/60Hz |
| Net Weight | 18 Kg |
| Model | LIBM-G10 |
| Optical System | NIS 60 Infinite Optical System / Tube length 200mm |
| Gross Weight | 20 Kg |
| Type of Product | Microscope |
| Condenser | Long Working Distance Condenser / N.A. 0.3 / WD 75mm |
| Magnification | 4x / 10x / 20x / 40x |
| Focusing | Coaxial Coarse and Fine Adjustment / Tension Adjustment / Fine Division 0.001mm |
| Eyepiece | SW10×/22 mm |
| Objective | NIS60 Infinite LWD Plan Achromatic 4x/0.1 / WD equal to 30mm / NIS60 Infinite LWD Plan Phase Contrast 10x/0.25 / WD equal to 10.2mm / PH20x/0.40 / WD equal to 12mm / PH40x/0.60 / WD equal to 2.2mm |
| Viewing Head | Seidentopf Binocular Head / Inclined at 45° / Interpupillary Distance 48-75mm |
| Nosepiece | Quintuple nosepiece |
| Fuse | T250V500mA |
| Stage | 170×250 mm with glass insert plate (Ø110mm) |
| Packaging Dimension | 690 × 390 × 640 mm |
| Phase Annuls | 10x-20x-40x Phase Annulus Plate (center adjustable) |
| Telescope | Centering Telescope — used to adjust the center of phase annulus |

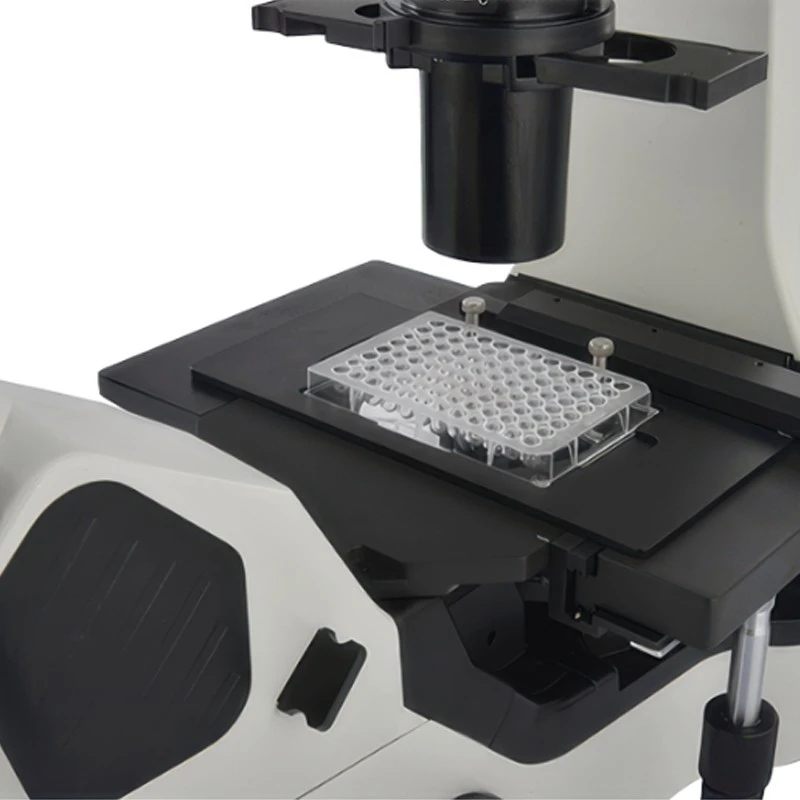

| Stage Attachments | Attachable mechanical stage / X-Y control Moving range — 128mm×80mm / accepts 5 types of petri-dish holders / well plates / and stage clips. Universal holder for Terasaki plate / glass slides / and Ø35-65mm petri dishes |
| Transmitted Illumination | 3W S-LED / Brightness Adjustable |
| C-mount Adapter | 1x C-mount Adapter (focus adjustable) |
Key Features
- Enhances visibility with phase contrast
- High-eye point wide-field eyepieces
- Offers convenient coarse and fine adjustment
- Compatible holder for slides and petri dishes
- Features adjustable 3W S-LED illumination
- Equipped with four phase contrast objectives
- Detachable condenser for flexibility
Product Description
Inverted Biological Microscope LIBM-G10 comes with an NIS 60 Infinite Optical System, with a 200mm tube length. Its Seidentopf binocular head is inclined at 45°, offering an interpupillary range of 48mm to 75mm. The mechanical stage has precise X-Y coaxial control with a moving range of 128mm×80mm, enabling accurate sample positioning. A long working distance condenser ensures efficient illumination for samples. Perfect for cell biology research and tissue culture analysis in advanced laboratory settings.
Applications:
Our Inverted Biological Microscope LIBM-G10 is widely used for observing live cell cultures, tissue samples, and lab specimens. Its adjustable light system and long working distance make it ideal for tissue and cell-based research and routine laboratory investigations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features the NIS 60 Infinite Optical System with a tube length of 200mm.
It is equipped with a 3W S-LED illumination system that is adjustable for brightness.
The mechanical stage measures 170mm x 250mm and includes a glass insert plate with a diameter of 110mm.
The net weight of this unit is 18 kg, while the gross weight is 20 kg.
The interpupillary distance for the Seidentopf binocular head ranges from 48mm to 75mm.
It is widely used for observing live cell cultures, tissue samples, and laboratory specimens.
The long working distance condenser has a numerical aperture (N.A.) of 0.3 and a working distance of 75mm.
This model includes four phase contrast objectives for enhanced viewing capabilities.
It requires an AC power supply of 100-240V at 50/60Hz.
Yes, it includes a 1x C-mount adapter that is focus adjustable and a centering telescope for phase annulus adjustment.
