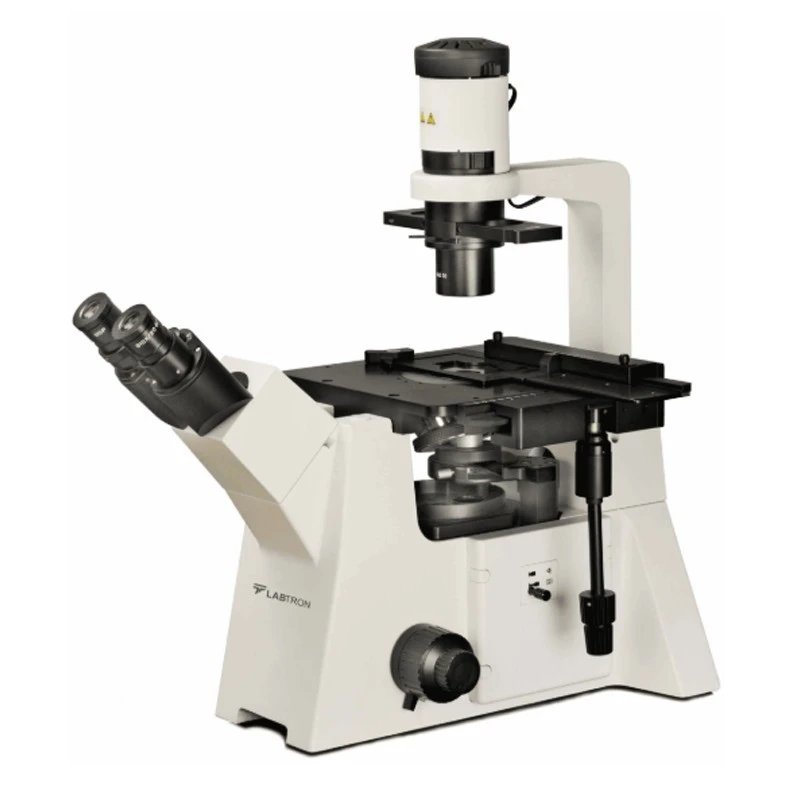

Inverted Biological Microscope EIBM-B10
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Dimension | 650 x 430 x 610 mm |
| Model | LIBM-B10 |
| Optical System | Infinite plan optical system / F equal to 200 mm |
| Gross Weight | 22 Kg |
| Type of Product | Microscope |
| Filter | Blue / green / yellow with 34 mm diameter |
| Condenser | 72 mm extreme long working distance condenser (ELWD) / N.A. 0.3 with iris diaphragm |
| Illumination | 6V/30W Osram halogen lamp / External power / wide voltage (100V to 240V) / Fuse tube 250V 3.15 A |
| Objectives | Plan Achromatic 10X/0.25 WD equal to 9.67 mm / 20X/0.40 WD equal to 7.97 mm / 40X/0.60 WD equal to 3.76 mm / Plan achromatic positive phase contrast 20X/0.40 WD equal to 7.97 mm |
| Eyepiece | WF10X/20 / high eye-point up to 21 mm |
| Viewing Head | Siedentopf type binocular / inclined at 45° / interpupillary distance 52 to 75 mm / diopter adjustment |
| Nosepiece | Quintuple / inward facing |
| Reticule Eyepiece | CROSSWF10X/20 / high eye-point up to 21 mm |
| C-mount | 0.5X |
| Stage Dimensions | Fixed stage — 240x260 mm / low-position co-axial flexible adjusting handle / Moving range — 135x85 mm / Slide plate 118 mm / replaceable Slide plate 76x26 mm / 60 mm replaceable |
| Centering Telescope Eyepiece | 30 mm |
| Allen screw driver | 2.5 mm diameter |
Key Features
- Infinite plan optical system
- Siedentopf type trinocular head
- Plan achromatic & plan achromatic positive phase contrast objectives
- 72 mm Extreme long working distance condenser
- Blue, Green & ground glass filters with 34 mm diameter
Product Description
Inverted Biological Microscope LIBM-B10 with Siedentopf type trinocular head works in combination with a digital camera and PC attachment without affecting its binocular observations. Equipped with phase-contrast slides for easy switching between 10X, 20X, 40X phase contrast and bright field observation. The inverted stage of this microscope comes with a low-positioned coaxial flexible adjusting handle for ease of operation.
Applications:
Used for applications in animal and plant tissue culture laboratories, fish laboratories, plant laboratories, and poultry laboratories.
Optional Accessories:
- Mechanical Stage: 350×208 mm, Moving Range: 50×50 mm, Low-position Co-axial Flexible Adjusting Handle
- C-Mount 1X, 0.25X (fits 1/3 CCD)
- Plan Achromatic 4X/0.13, WD=12.86 mm Objective
- Plan Achromatic Positive Phase Contrast 10X/0.25, WD=9.67 mm Objective
- Plan Achromatic Positive Phase Contrast 40X/0.60, WD=3.76 mm Objective
- Plan Achromatic Negative Phase Contrast 10X/0.25, WD=9.67 mm Objective
- Plan Achromatic Negative Phase Contrast 20X/0.40, WD=7.97 mm Objective
- Plan Achromatic Negative Phase Contrast 40X/0.60, WD=3.76 mm Objective
- WF10X/22, High Eye-point up to 21 mm
- WF16X/14 mm
- WF10X/20 (Pointer), High Eye-point up to 21 mm
- WF10X/22 (Pointer), High Eye-point up to 21 mm
- Reticule Eyepiece: CROSSWF10X/22, High Eye-point up to 21 mm
- Allen Screw Driver 2 mm, 3 mm
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features an infinite plan optical system with a focal length equal to 200 mm.
The dimensions are 650 x 430 x 610 mm, and the gross weight is 22 kg.
It includes Plan Achromatic objectives of 10X/0.25, 20X/0.40, and 40X/0.60, as well as Plan Achromatic Positive Phase Contrast objectives.
It utilizes a 6V/30W Osram halogen lamp with external power and a wide voltage range of 100V to 240V.
The microscope has a Siedentopf type binocular viewing head, inclined at 45°, with an interpupillary distance adjustable from 52 to 75 mm and diopter adjustment.
It has a 72 mm extreme long working distance condenser with a numerical aperture of 0.3 and an iris diaphragm.
Optional accessories include a mechanical stage with dimensions of 350×208 mm and a moving range of 50×50 mm, as well as various C-Mount options.
The fixed stage measures 240x260 mm and includes a low-position co-axial flexible adjusting handle with a moving range of 135x85 mm.
It includes WF10X/20 eyepieces with a high eye-point up to 21 mm, as well as reticule eyepieces.
The microscope is made in the UK.
This product is categorized as a microscope, specifically an inverted biological microscope.
