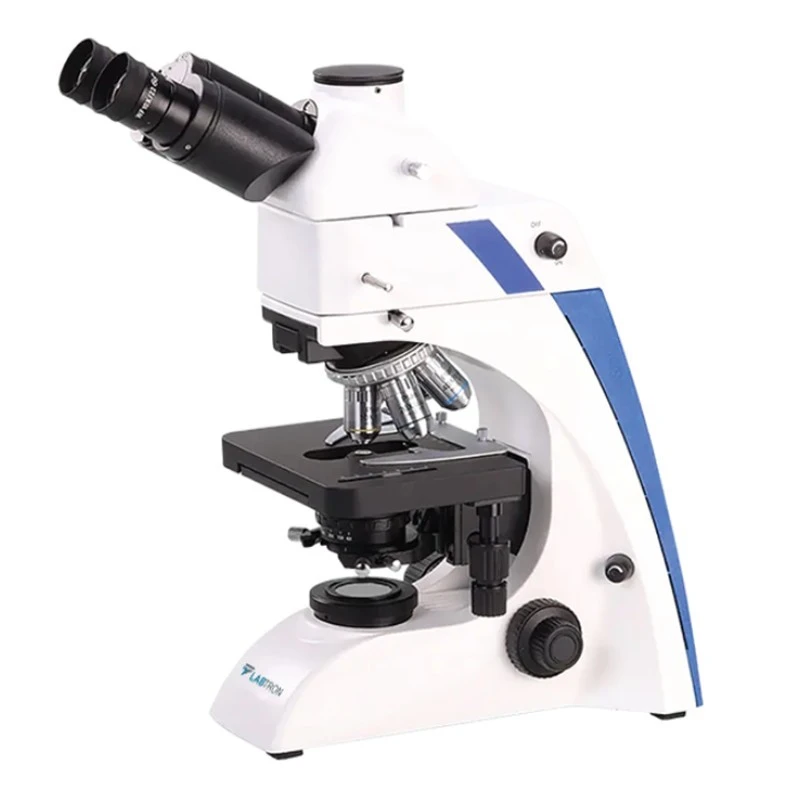

Labtron Fluorescence Microscope LFM-D10 image-1

Free Delivery in India | Lowest Global Shipping Charges

Fluorescence Microscope EFM-D10

Name: Fluorescence Microscope EFM-D10
Brand: Generic Brand
SKU: ADGFP
Price: 69.5 USD
Availability: InStock



SKU ADGFP Category Microscopes Brand Generic Brand Condition New

Specifications

Country of Origin	UK
Brand	Generic Brand
Power Supply	100V to 240V Wide Voltage
Net Weight	18 Kg
Dimensions	990 × 340 × 440 mm
Model	LFM-D10
Filters	Blue / Green / Yellow
Gross Weight	23 kg
Type of Product	Microscope
Condenser	N.A. 0.9/0.13 / Iris Diaphragm
Illumination	6V 30W Halogen Koehler Illumination / Field Diaphragm
Focusing	Coaxial Coarse & Fine Focusing / Travel Range 22 mm / Fine Focus Division 0.002 mm
Eyepiece	WF10x/22mm / Diameter 30 mm / High Eyepoint / Diopter Adjustable
Objective	Infinity Plan Objective — 4X/0.10 / 10X/0.25 / 20X/0.40 (S) / 40X/0.66 (S) / 100X/1.25 (S/Oil) / 100X/1.15(S / Water)
Viewing Head	Siedentop Trinocular Head Inclined 30° / Rotatable 360° / Interpupillary 48 to 76 mm / Light Split Switch E100 — P0/E20 — P80 / Eyepiece Tube Diameter — 30 mm
Nosepiece	Quintuple nosepiece
Fluorescence	5W LED Fluorescent Illumination / Ultraviolet Protection
Stage	Travel Range 77 × 52 mm / Double Slide Holder
Stage Dimensions	182 × 140 mm

Key Features

Integrated mechanical stage
LED fluorescent illumination
Fixed screw eyepiece
Trinocular head
Single and double bond options

Product Description

Fluorescence Microscope LFM-D10 is equipped with a WF10x/22mm eyepiece and a quintuple nosepiece. Its infinity plan objective ensures clear and detailed imaging. The optional water objective enhances observation by providing clearer imaging with improved precision. This device’s swing-out condenser provides controlled illumination as needed. Our fluorescence microscope is designed for accurate and efficient fluorescence microscopy applications.

Applications:

Fluorescence Microscope LFM-D10 is ideal for biological and medical research, enabling fluorescence microscopy with high precision. This microscope is widely used in cellular imaging, microbiology, pathology, and life sciences.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Fluorescence Microscope EFM-D10 operates on a power supply range of 100V to 240V, accommodating a wide voltage input.

This microscope has dimensions of 990 × 340 × 440 mm and weighs 18 kg net, with a gross weight of 23 kg.

It features 6V 30W Halogen Koehler illumination along with a field diaphragm for controlled lighting.

The microscope is equipped with an infinity plan objective offering magnifications of 4X/0.10, 10X/0.25, 20X/0.40 (S), 40X/0.66 (S), and 100X/1.25 (S/Oil) or 100X/1.15 (S/Water).

It features a Siedentop trinocular head that is inclined at 30°, rotatable 360°, and has an interpupillary distance adjustable from 48 to 76 mm.

The stage has a travel range of 77 × 52 mm and includes a double slide holder.

The EFM-D10 features a condenser with specifications of N.A. 0.9/0.13 and an iris diaphragm.

It is ideal for biological and medical research, particularly in cellular imaging, microbiology, pathology, and life sciences.

The microscope is equipped with a WF10x/22mm eyepiece that is high eyepoint and diopter adjustable.

Yes, an optional water objective is available to enhance observation with improved clarity and precision.
