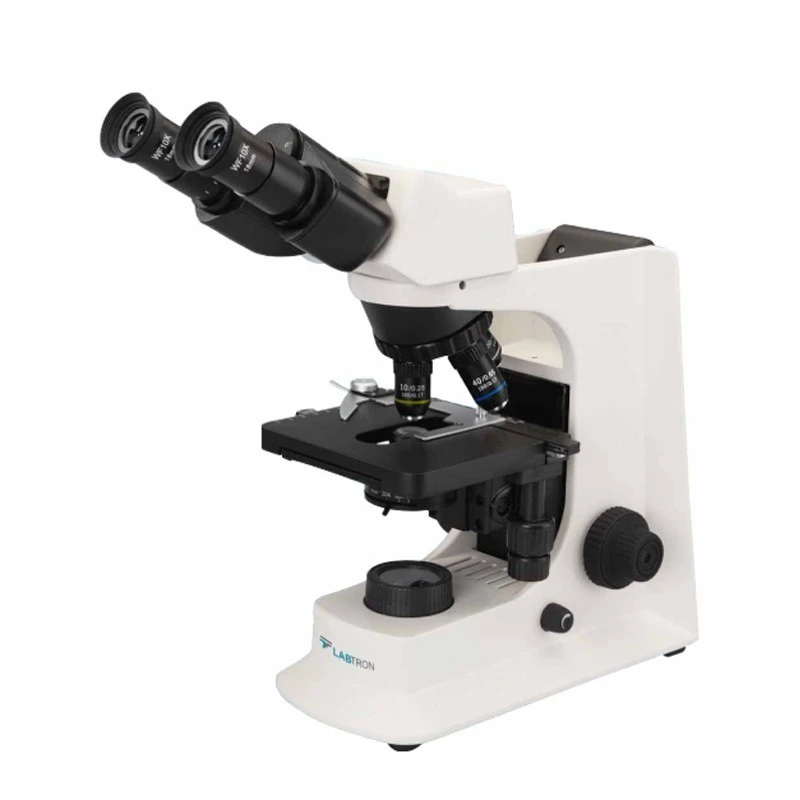

Labtron Educational Microscope LEM-B11 image-1

Free Delivery in India | Lowest Global Shipping Charges

Educational Microscope EEM-B11

Name: Educational Microscope EEM-B11
Brand: Generic Brand
SKU: ADGFE
Price: 69.5 USD
Availability: InStock



SKU ADGFE Category Microscopes Brand Generic Brand Condition New

Specifications

Country of Origin	UK
Brand	Generic Brand
Power Supply	85 V ~ 265 V universal power supply
Net Weight	6 kg
Model	LEM-B11
Optical System	Finite Optical System
Gross Weight	8 kg
Type of Product	Microscope
Condenser	Abbe N.A. 1.25 condenser with Iris diaphragm
Illumination	Built-in kohler illumination system 3W LED or Halogen 6V / 20W / adjust brightness / field diaphragm
Focusing	Coaxial coarse & fine adjustment knobs
Eyepiece	WF 10X / 20 mm
Viewing Head	Siedentopf binocular head / interpupillary distance range 48 — 75 mm / eyepiece tube rotation 360º
Nosepiece	Inward quadruple click-stop / revolving mechanism with multiple ball bearing
Stage	Double layer mechanical stage — 140 × 132 mm / Travel area — 76 × 50 mm with a right hand stage handle / 0.1 mm provision \| double slide holder
Dimension (W×D×H)	390 × 280 × 450 mm
Type of Objective	Finite plan objective 4x / 10x / 40x(s) / 100x(s / oil)

Key Features

Siedentopf type binocular head
WF 10X / 20 mm eyepiece
Finite plan objectives
Inward quadruple, Click-stop revolving nosepiece
6 V / 20 W Halogen lamp / 3W LED as a source of kohler illumination

Product Description

Educational Microscope LEM-B11 comes with a Siedentopf type binocular viewing head. The fine and coarse focusing knobs are used for obtaining images of the specimens very quickly and sharply. It has an inward quadruple, click-stop nosepiece with a revolving mechanism. Educational microscopes are specially designed for examination and demonstration purposes.

Applications:

Educational microscopes are used in bacteriology, botany, zoology, research industries, schools, and colleges for examination and demonstration purposes.

Optional Accessories:

Phase Contrast Kit
Dark Field Condenser
Siedentopf Type Trinocular Head

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a finite optical system, which is designed to provide clear and precise imaging of specimens.

It is equipped with a built-in Kohler illumination system that includes a 3W LED or a 6V / 20W halogen lamp, allowing for adjustable brightness.

The dimensions of this microscope are 390 × 280 × 450 mm, and it has a net weight of 6 kg and a gross weight of 8 kg.

This model comes with a WF 10X / 20 mm eyepiece, which is suitable for educational purposes.

It has an inward quadruple click-stop nosepiece with a revolving mechanism, which allows for easy switching between objectives.

It includes a double layer mechanical stage measuring 140 × 132 mm with a travel area of 76 × 50 mm, along with a right-hand stage handle and a double slide holder.

This unit is supplied with finite plan objectives of 4x, 10x, 40x(s), and 100x(s / oil).

The Siedentopf binocular head has an interpupillary distance range of 48 to 75 mm, allowing for comfortable viewing adjustments.

It is designed for examination and demonstration purposes in fields such as bacteriology, botany, zoology, and educational institutions like schools and colleges.

Optional accessories include a Phase Contrast Kit and a Dark Field Condenser, as well as a Siedentopf Type Trinocular Head.
