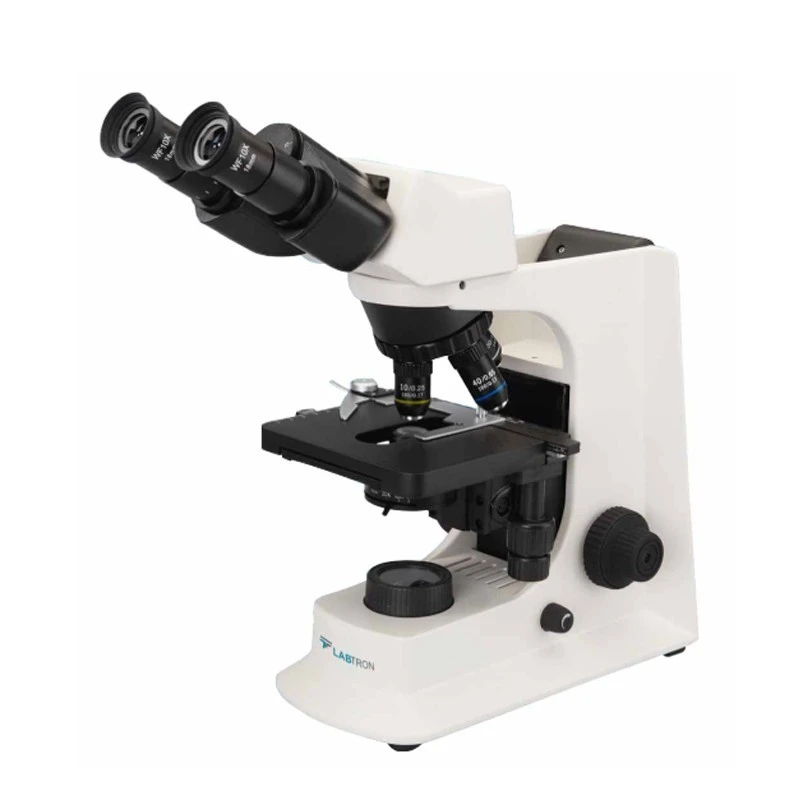

Educational Microscope EEM-B10
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Power Supply | 85 V ~ 265 V universal power supply |
| Net Weight | 6 kg |
| Model | LEM-B10 |
| Optical System | Finite Optical System |
| Gross Weight | 8 kg |
| Type of Product | Microscope |
| Condenser | Abbe N.A. 1.25 condenser with Iris diaphragm |
| Illumination | Built-in kohler illumination system 3 W LED or Halogen 6 V / 20 W / adjust brightness / field diaphragm |
| Focusing | Coaxial coarse & fine adjustment knobs |
| Eyepiece | WF 10X / 18 mm |
| Viewing Head | Siedentopf binocular head / interpupillary distance range 48 — 75 mm / eyepiece tube rotation 360º |
| Nosepiece | Inward quadruple click-stop / revolving mechanism with multiple ball bearing |
| Stage | Double layer mechanical stage — 140 × 132 mm / Travel area — 76 × 50 mm with a right hand stage handle / 0.1 mm provision | double slide holder |
| Dimension (W×D×H) | 390 × 280 × 450 mm |
| Type of Objective | Achromatic objective 4x / 10x / 40x(s) / 100x(s / oil) |
Key Features
- Siedentopf type binocular head
- WF 10X / 18 mm eyepiece
- Achromatic objectives
- Inward quadruple, Click-stop revolving nosepiece
- 6 V / 20 W Halogen lamp/ 3W LED as a source of kohler illumination
Product Description
Educational Microscope LEM-B10 comes with a Siedentopf type binocular viewing head. The fine and coarse focusing knobs are used for obtaining images of the specimens very quickly and sharply. It has an inward quadruple, click-stop nosepiece with a revolving mechanism. Educational microscopes are specially designed for examination and demonstration purposes.
Applications:
Educational microscopes are used in bacteriology, botany, zoology, research industries, schools, and colleges for examination and demonstration purposes.
Optional Accessories:
- Phase Contrast Kit
- Dark Field Condenser
- Siedentopf Type Trinocular Head
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a finite optical system, which is designed to provide clear and sharp images of specimens.
This model is equipped with a built-in Kohler illumination system that includes a 3 W LED or a 6 V / 20 W halogen lamp, with adjustable brightness.
The dimensions are 390 × 280 × 450 mm, and it has a net weight of 6 kg and a gross weight of 8 kg.
It comes with achromatic objectives of 4x, 10x, 40x(s), and 100x(s/oil).
The double layer mechanical stage has a travel area of 76 × 50 mm.
The interpupillary distance range for the Siedentopf binocular head is 48 to 75 mm.
It includes an Abbe N.A. 1.25 condenser with an iris diaphragm, which aids in controlling light exposure.
It has an inward quadruple click-stop nosepiece with a revolving mechanism and multiple ball bearings for smooth operation.
Optional accessories include a phase contrast kit, dark field condenser, and a Siedentopf type trinocular head.
This model is used in bacteriology, botany, zoology, research industries, schools, and colleges for examination and demonstration purposes.
