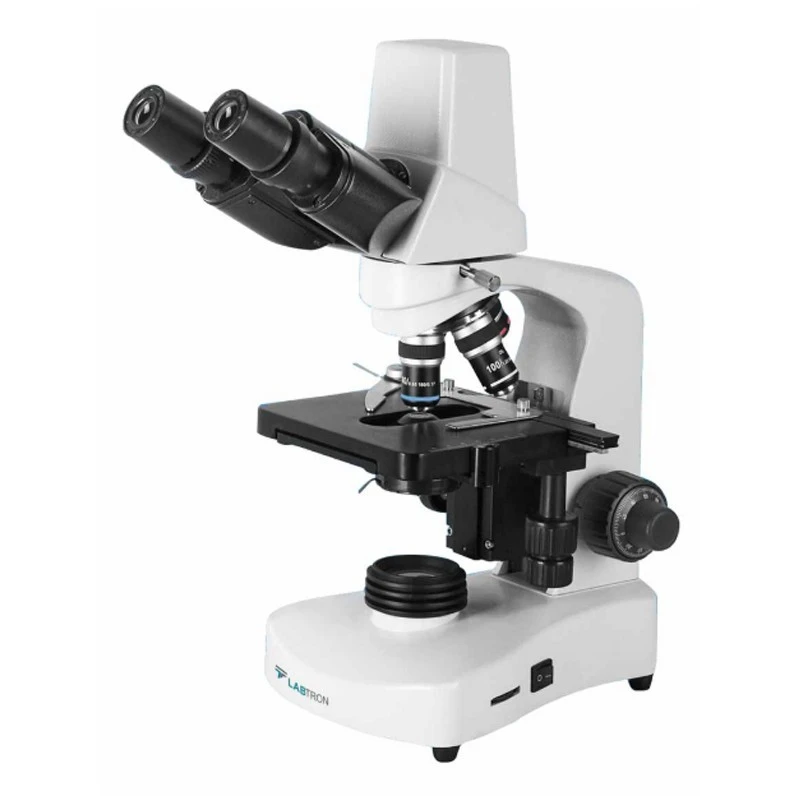

Digital Microscope EDM-C10
Specifications
| Country of Origin | UK |
|---|---|
| Output | USB 2.0 |
| Brand | Generic Brand |
| Dimension | 395 × 275 × 510 mm |
| Net Weight | 8 kg |
| Model | LDM-C10 |
| SOFTWARE | Camea software — Scope image 9.0 |
| Operating System | Windows 2000/XP/Vista |
| Gross Weight | 9 kg |
| Type of Product | Microscope |
| Condenser | Abbe N.A. 1.20 with iris diaphragm and filter |
| Illumination | S-LED brightness adjustable / Halogen lamp 6V/20W with adjustable brightness |
| Objectives | Achromatic objective — 4x / 10x / 40x(s) / 100x(s / oil) |
| Focusing | Coaxial coarse and fine adjustment system / Range 24 mm / fine division 0.004 mm |
| Eyepiece | WF10X/18 mm |
| Viewing Head | Compensation free binocular head inclined at 30° / interpupillary distance 48–75 mm / Range of viewing field — 90% |
| Nosepiece | Backward quadruple nosepiece |
| Stage | Double layer mechanical stage — 132 × 142 mm / Moving range — 75 × 40 mm |
| Valid Pixel | Camera valid pixel — 1280 × 1024 (1.3 mega pixel) |
Key Features
- Compensation free binocular head inclined at 30°
- Eyepiece range WF10X/18 mm
- Abbe N.A. 1.20 condenser with iris diaphragm and filter
- Backward quadruple nosepiece
- S-LED as source of illumination
- Scope Image 9.0 software
- Achromatic objective: 4x, 10x, 40x(s), 100x(s, oil)
Product Description
The highly modified Digital Microscope LDM-C10 features a built-in USB camera and PC/monitor attachment with professional software to offer high-resolution images. This digital microscope allows users to view samples without straining the eyes. The coaxial coarse and fine focusing adjustment provides sharp and clear imaging.
Applications:
Digital microscope has applications in the field of education, engineering, mechanical microscopy, metallurgy industry, biology, immunology, genetics, and others.
Optional Accessories:
- Eyepiece: P16X / 11 mm
- Phase Contrast Kit
- Dark Field Attachment
- Polarization Attachment
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Digital Microscope EDM-C10 features an achromatic objective with a maximum magnification of 100x (using oil).
This model has dimensions of 395 × 275 × 510 mm.
It uses S-LED illumination with adjustable brightness and also includes a 6V/20W halogen lamp with adjustable brightness.
The net weight of the Digital Microscope EDM-C10 is 8 kg, while the gross weight is 9 kg.
The microscope comes with Camea software, specifically Scope Image 9.0, for high-resolution imaging.
The included software is compatible with Windows 2000, XP, and Vista.
The microscope includes achromatic objectives of 4x, 10x, 40x (spring), and 100x (spring, oil).
It has a compensation-free binocular head inclined at 30° with an interpupillary distance range of 48–75 mm.
The microscope features a double-layer mechanical stage measuring 132 × 142 mm with a moving range of 75 × 40 mm.
The digital microscope has a USB 2.0 output for connecting to a PC or monitor.
This model is suitable for applications in education, engineering, mechanical microscopy, metallurgy, biology, immunology, and genetics.
