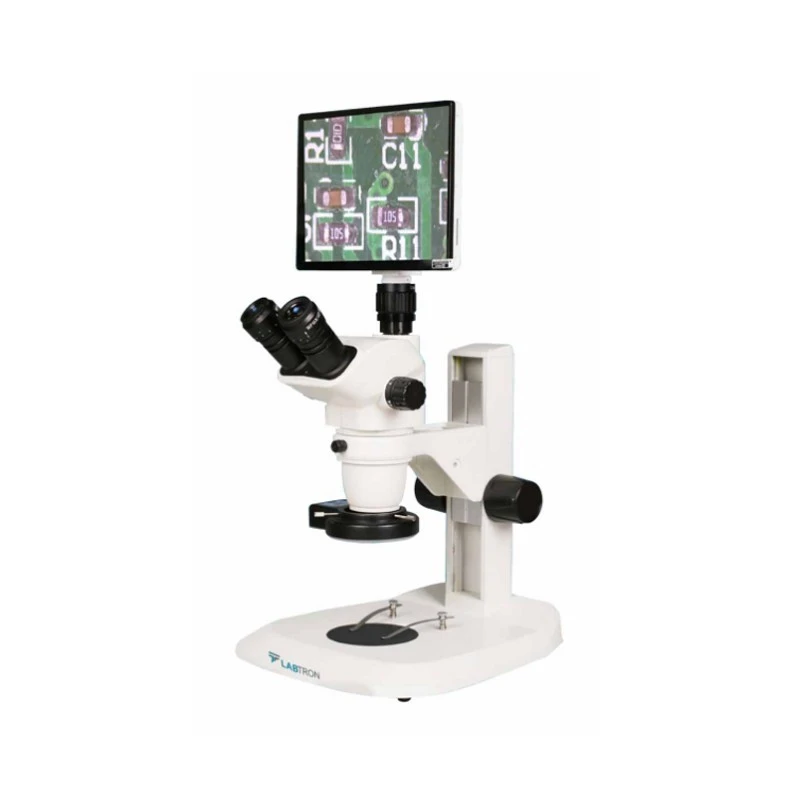

Labtron Digital Microscope LDM-B13 image-1

Free Delivery in India | Lowest Global Shipping Charges

Digital Microscope EDM-B13

Name: Digital Microscope EDM-B13
Brand: Generic Brand
SKU: ADGEU
Price: 69.5 USD
Availability: InStock



SKU ADGEU Category Microscopes Brand Generic Brand Condition New

Specifications

Country of Origin	UK
Brand	Generic Brand
Power Supply	220 V / 50 Hz or 110 V / 60 Hz
Dimension	430 × 430 × 510 mm
Net Weight	8 kg
Model	LDM-B13
Gross Weight	9.5 kg
Type of Product	Microscope
Illumination	White and black plate / Incident & transmitted illumination by 3W LED
Objectives	Zoom objectives — 0.67x–4.5x / Zoom ratio — 1 — 6.7 / Magnification — 6.7x–45x
Eyepiece	WF10X/ 22 mm
Viewing Head	45° inclined and 360° rotable trinocular head / interpupillary distance 55–75 mm
Stage	Working distance — 105 mm
LCD Screen	9.7 inch TFT touch screen
Digital Part	60 LED bulbs

Key Features

9.7 inch TFT touching screen
Incident & transmitted illumination by 3W LED
LED ring lamp with 60 LED bulbs
Equipped with zoom objectives
Large working distance 105mm
IMS camera software

Product Description

Digital Microscope LDM-B13 provides the details of the object on the large LCD screen with ease. This digital microscope delivers a sharp stereo erect image over a wide field of view. Its incident and transmitted LED lighting system, along with a track stand, makes specimen focusing simple. Zoom objectives are used for better magnification of the object under study. It also has a large working distance for easy observation.

Applications:

They have wide and promising applications in the fields of engineering, metallurgic industry, and others for the inspection of electrical circuits, metal thin plates, and are also used in the medical research field to study the details of specimens on the LCD screen.

Optional Accessories:

Auxiliary Objective: 0.5x, 1.5x, 2x
Eyepiece: WF20X/12mm
Eyepiece: EW15X / Ø 16 mm
Frosted Glass Plate
LED Ring Lamp: 48 LED bulbs

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a magnification range of 6.7x to 45x, achieved through its zoom objectives with a zoom ratio of 1:6.7.

The dimensions of the Digital Microscope are 430 × 430 × 510 mm, and it has a net weight of 8 kg, with a gross weight of 9.5 kg.

It features incident and transmitted illumination using a 3W LED system, along with a digital part that includes 60 LED bulbs.

This microscope operates on a power supply of either 220 V / 50 Hz or 110 V / 60 Hz.

The microscope is equipped with a WF10X eyepiece with a diameter of 22 mm.

The working distance for this model is 105 mm, allowing for easy observation of specimens.

It has a 9.7 inch TFT touch screen for displaying the details of the object being observed.

This model features a 45° inclined and 360° rotatable trinocular head, with an interpupillary distance adjustable from 55 to 75 mm.

Optional accessories include auxiliary objectives (0.5x, 1.5x, 2x) and eyepieces (WF20X/12mm, EW15X/Ø 16 mm) as well as a frosted glass plate and an LED ring lamp with 48 LED bulbs.

It has applications in engineering, the metallurgic industry, and medical research, particularly for inspecting electrical circuits and metal thin plates.

The Digital Microscope LDM-B13 is made in the UK.

This product is classified as a microscope, specifically a digital microscope.
