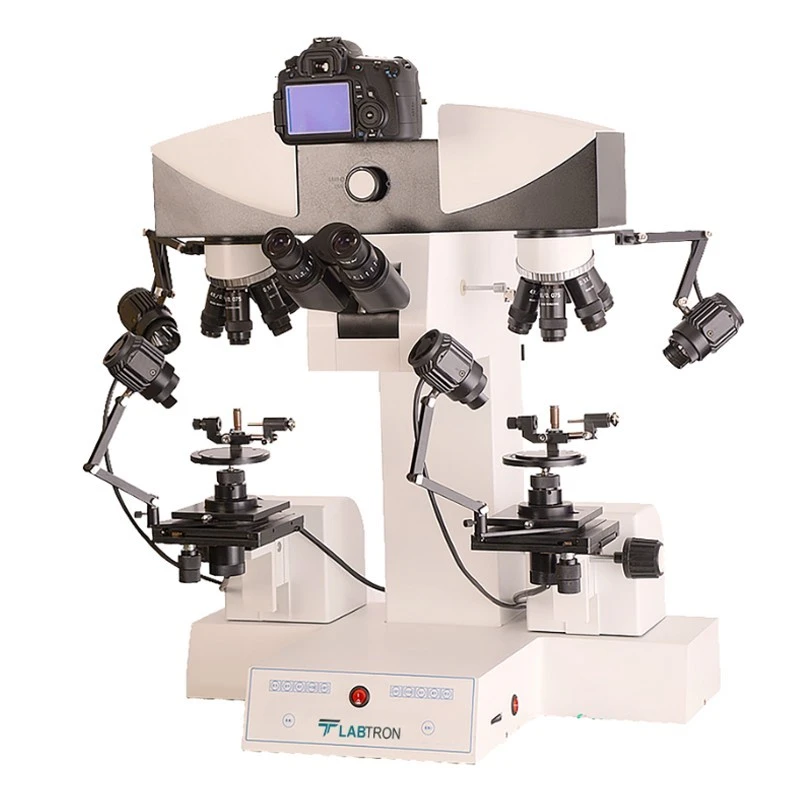

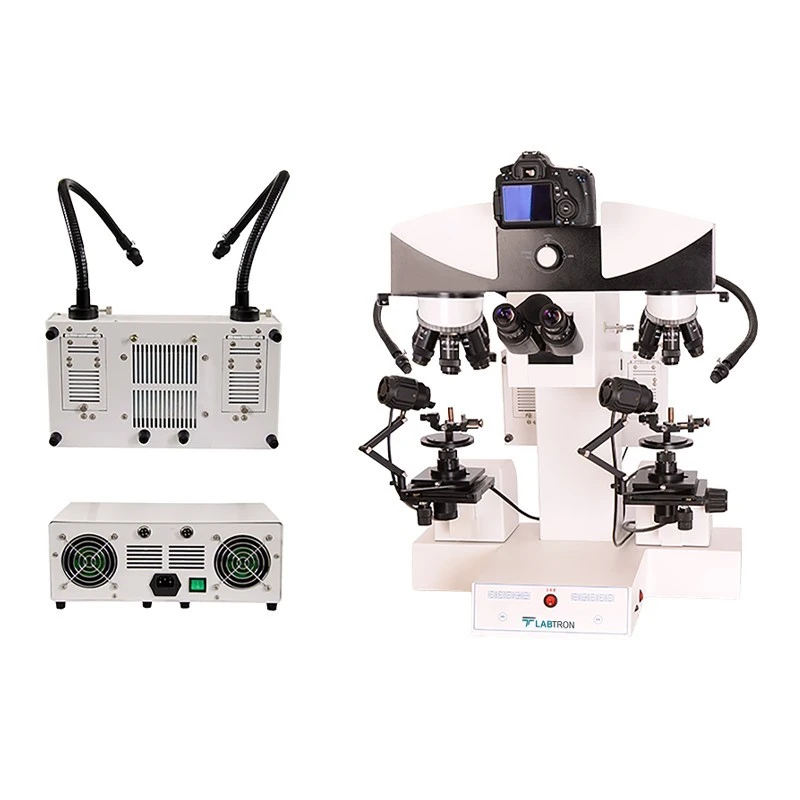

Comparison Microscope ECM-A11
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Dimension | 400 × 600 × 720 mm |
| Power | 80 to 240 V wide range voltage |
| Model | LCM-A11 |
| Type of Product | Microscope |
| Head | 0 to 45° tiltable binocular head / interpupillary distance — 48 to 75 mm |
| Adapter | 0.5x CCD adapter for digital camera / Front view photo adapter 2.5x for SLR digital camera |
| Magnification | 2x to 240x |
| Camera | CCD built-in 3.0 M high resolution colour CCD camera / USB 2.0 output / 2048 × 1536 pixels / Pixel size — 3.2 × 3.2 |

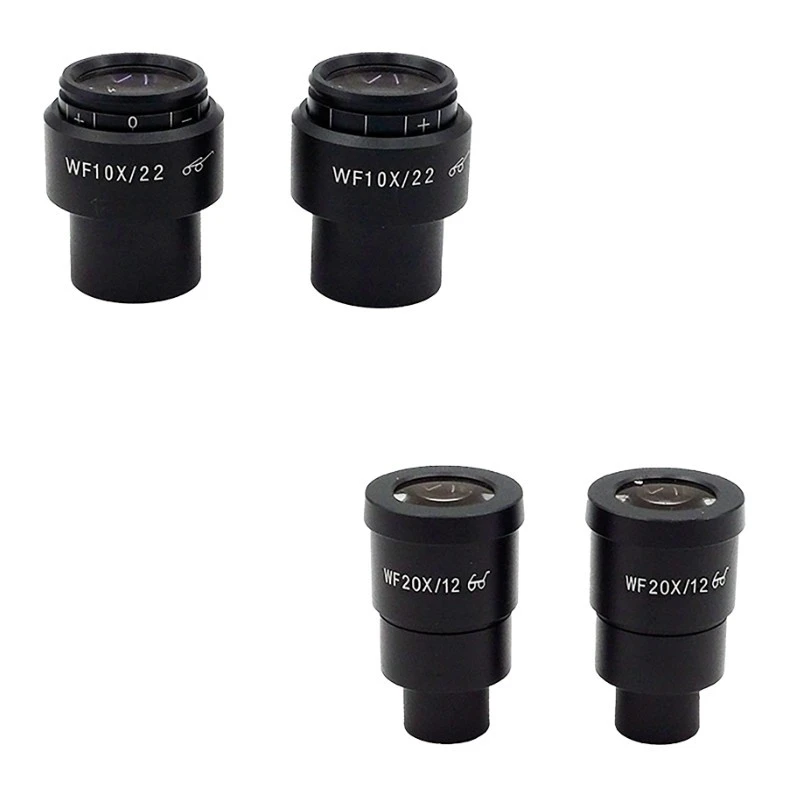

| Eyepiece | Diopter ±5 adjustable / WF10X/22 mm high eyepoint / WF20X/12 mm high eyepoint |
| Working Distance | 101 mm |

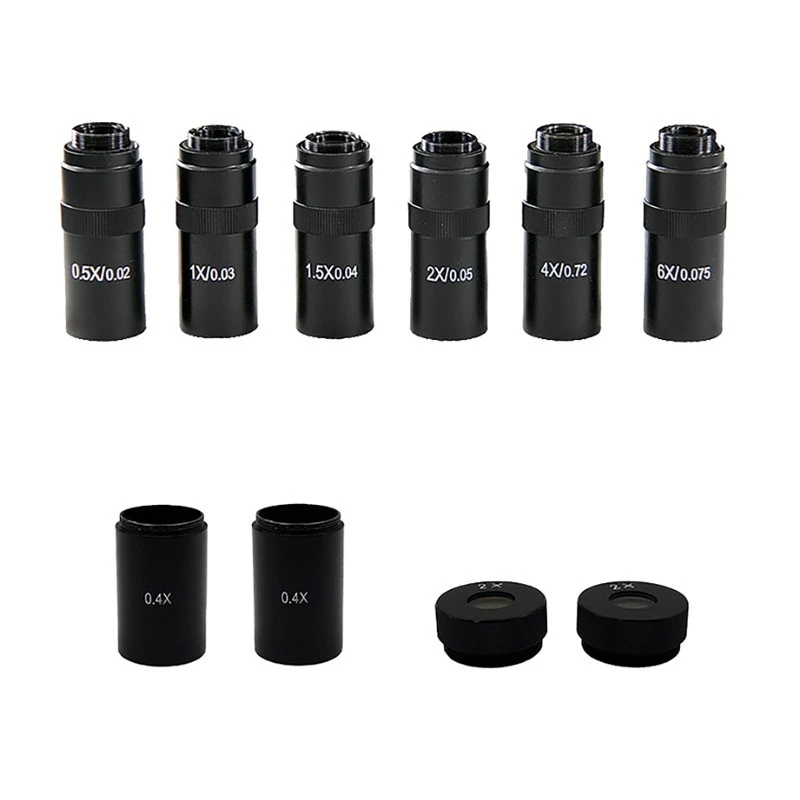

| Objective | LWD infinity plan achromatic objective 0.5x / 1x / 1.5x / 4x / 6x |
| Nosepiece | 6 holes click stop nosepiece |
| Working Stage | Square manual working stage 90×90 mm / moving range 54×54 mm / Round tiltable working stage / diameter — 90 mm / 0 to 45° inclined / 360° rotatable / Joint left/right moving range 54 mm / joint up/down range 60 mm |
| Auxiliary Lens | 0.4x / 2.0x |
| View Field Diameter | 2.3 to 62 mm |
| No. of Bullet Holder | 2 sets |
Key Features
- Separation line adjust system
- Include professional forensic image analysis software
- Multiple illumination modes
- Motorized control for magnification
- Bullet holder set to hold & view all kinds of cartridge and et
Product Description
Comparison Microscope LCM-A11 offers a magnification range from 2X to 240X, ensuring precise and detailed forensic analysis. It is equipped with a magnification correction system that includes correcting lenses for accuracy. The working stage supports 360° rotation and multi-angle adjustments for thorough examination. Its light sources, such as UV, LED, and halogen with adjustable brightness, provide versatile illumination. Our microscope is designed to meet the advanced requirements of forensic investigations with efficiency.
Applications:
Our comparison microscope is commonly used in forensic laboratories, police investigation units, and law enforcement agencies for ballistic analysis and evidence comparison.
Optional Accessories:
- 150W Cold Light Source
- Motorized Bullet Holder
Light Source:12V 50W fan cooling strong halogen light / brightness adjustable / 2 pcs 5W LED cold light / high brightness / brightness adjustable / Coaxial lights — 6 pcs White LED light hose / 2 pcs polarizing lights / 2 pcs transmit bottom light (built-in working stage) / Ultraviolet light lens — 2 pcs / Filters — red / blue / yellow / green / 2 pcs each colour,SOFTWARE:Professional forensic image analysis software / Motorized/Manual view field changeover full/split/overlapping image / Motorized/Manual control working stage X/Y/Z 3D movement / Motorized/Manual control round working stage rotation +H direction / Motorized/Manual control to change objective magnification
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dimensions of this unit are 400 × 600 × 720 mm.
It includes multiple illumination modes such as UV, LED, and halogen, all with adjustable brightness.
The working stage supports 360° rotation and multi-angle adjustments, enhancing examination flexibility.
It features a built-in 3.0 M high-resolution colour CCD camera with USB 2.0 output and a resolution of 2048 × 1536 pixels.
It operates on a wide range voltage of 80 to 240 V.
This unit includes LWD infinity plan achromatic objectives of 0.5x, 1x, 1.5x, 4x, and 6x.
It is commonly used in forensic laboratories, police investigation units, and law enforcement agencies for ballistic analysis and evidence comparison.
Included accessories are a bullet holder set to hold and view various cartridges and forensic image analysis software.
The working distance is 101 mm, providing adequate space for examination.
It has a tiltable binocular head that can be adjusted from 0 to 45° with an interpupillary distance of 48 to 75 mm.
