Biological Microscope EBM-C20

Name: Biological Microscope EBM-C20
Brand: Generic Brand
SKU: ADGDT
Price: 69.5 USD
Availability: InStock



SKU ADGDT Category Microscopes Brand Generic Brand Condition New

Specifications

Country of Origin	UK
Brand	Generic Brand
Net Weight	6.7 kg
Dimensions	480×470×280 mm
Model	LBM-C20
Optical System	Infinity Optical System F equal to 200mm
Gross Weight	9.1 kg
Type of Product	Microscope
Filter	Blue
Condenser	Swing type NA equal to 1.25 (O) with the Iris diaphragm
Illumination	6 V 20 W Halogen Lamp / Adjustable
Focusing	Coarse and fine Knob / Division 0.001mm / Max — 20mm
Eyepiece	WF10X/20mm with the high point
Viewing Head	Trinocular Tube / 30° inclined / Interpupillary distance 52 to 75 mm / trinocular light is split 50/50 by a high quality prism (20/80 is optional)
Nosepiece	Quadruple Inward
Stage	Stage Size — 142×135 mm / Moving Range — 76×52 mm
Infinity Objective	Plan Achromatic 4X/0.10 / Plan Achromatic 10X/0.25 / Plan Achromatic 40X/0.65 / Plan Achromatic 100X/1.25 (S /O)
C-mount	1X

Key Features

Infinity plan achromatic optical system
Significant correction of chromatic aberrations and field curvature
High numerical aperture objectives used to obtain clear images and minimize flare
Light field, phase contrast, dark field, and polarizing observation mode accessories can be provided
Observation from digital camera and computers is also possible
Heat-sink design for long time working hours
Includes handgrip for easier transportation
Ring with blue filter is provided

Product Description

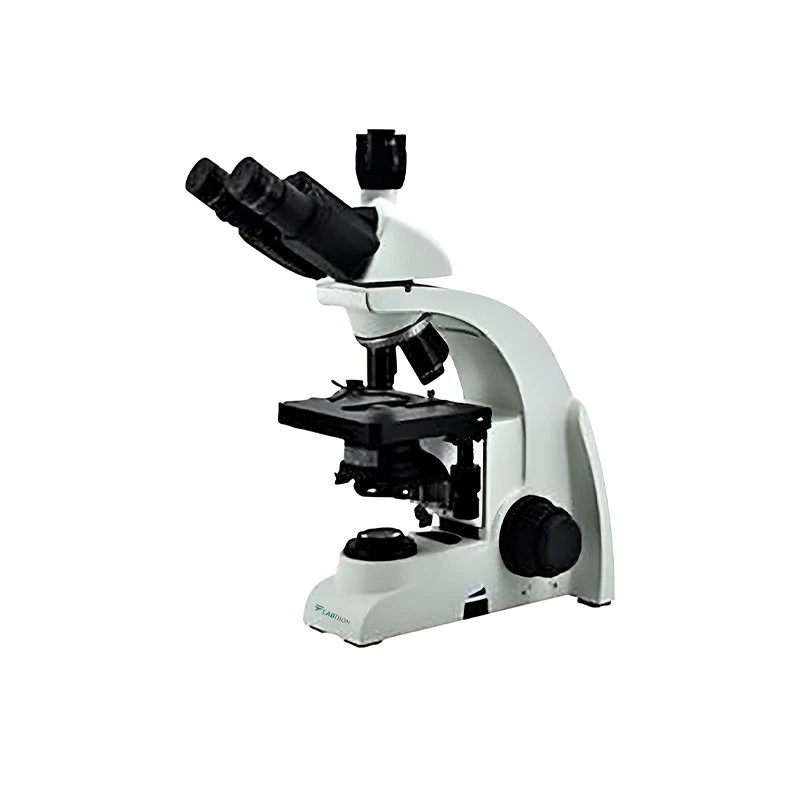

Biological Microscope LBM-C20 is a microscope having a trinocular head inclined at a 30° angle and 20 mm wide field. It features an infinity plan achromatic optical system for high-quality images. Accessories to observe in light field, phase contrast, dark field, and polarizing mode can be attached. It is widely used in universities, research institutes, and industries.

Applications:

It is used to view various living and non-living specimens in universities, research institutes, and industries.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It features an infinity plan achromatic optical system, which provides significant correction of chromatic aberrations and field curvature for high-quality images.

The dimensions are 480×470×280 mm, and it has a net weight of 6.7 kg and a gross weight of 9.1 kg.

It supports light field, phase contrast, dark field, and polarizing observation modes, with accessories available for each mode.

It is equipped with a 6 V 20 W halogen lamp that is adjustable for varying light conditions.

It comes with a WF10X eyepiece that has a 20 mm wide field and a high point for comfortable viewing.

The swing type condenser has a numerical aperture of 1.25 and includes an iris diaphragm for light control.

The trinocular head is inclined at a 30° angle, with an interpupillary distance adjustable between 52 to 75 mm.

It includes plan achromatic objectives of 4X/0.10, 10X/0.25, 40X/0.65, and 100X/1.25 (S/O).

The stage size is 142×135 mm, with a moving range of 76×52 mm, allowing for easy specimen positioning.

A blue filter ring is provided to enhance the observation quality during use.
