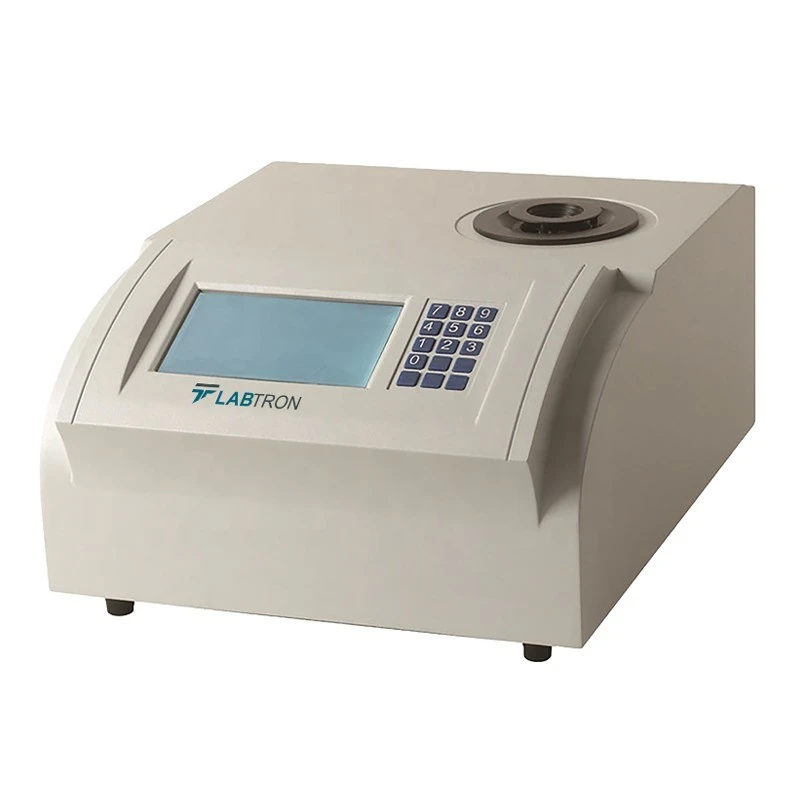

Melting Point Apparatus EDMP-B30
Specifications
| Country of Origin | UK |
|---|---|
| Repeatability | Heating rate 1°C/min / 0.3°C |
| Measuring range | Room temperature to 400°C |
| Brand | Generic Brand |
| Power Supply | 220V ± 22V / 50 Hz |
| Dimensions | 360 mm × 290 mm × 170 mm |
| Model | LDMP-B30 |
| Weight | 9 kg |
| Type of Product | Melting Point Apparatus |
| Display function | Melting curve automatic recording / initial & final melting automatic display |
| Communication Interface | RS232 / USB |
| Processing Capacity | 1 |
| Heating Rate | 0.1°C/min to 20°C/min |
| Data Storage | 1 /000 groups |
| Heating Time | 50°C to 400°C ≤ 5 min / 400°C to 50°C ≤ 7 min |
| Indication error | ≤ 200°C — ± 0.4°C / Greater than 200°C — ± 0.7°C |
| Display Method | 5.7-inch LCD screen |
| Capillary Size | Outer dia. φ1.4 mm / Inner dia. φ1.0 mm / Length 90 mm |
| Measurement Methods | Automatic |
| Minimum Indication | 0.1°C |
| Linear Heating Rate Error | ±10% |
| Sample Height | 3 to 5 mm |
| Calibration Method | Multi-point calibration |
Key Features
- Photoelectric automatic detection
- Platinum resistance temperature sensor
- Digital PID and PWM control
- High data storage capacity
- Automatically saves working parameters
- Pharmacopoeia-compliant capillary tubes
Product Description
The LDMP-B30 Melting Point Apparatus is designed to automatically determine melting points with a measuring range from room temperature up to 400°C. It features a user-friendly 5.7-inch dot matrix graphic LCD and touch panel for easy monitoring and settings adjustment. The apparatus supports RS232/USB communication interfaces for convenient data transfer and offers easy calibration through multi-point calibration functionality. This unit is built to provide consistent performance in various laboratory settings.
Applications:
The Melting Point Apparatus LDMP-B30 is ideal for laboratories in pharmaceuticals, chemicals, and research institutions to precisely determine the melting points of various substances.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a measuring range from room temperature up to 400°C.
The heating rate can be adjusted from 0.1°C/min to 20°C/min.
It features a 5.7-inch LCD screen that provides a melting curve automatic recording and displays initial and final melting points automatically.
It supports USB communication interfaces for convenient data transfer.
This model weighs 9 kg.
The sample height should be between 3 to 5 mm.
It uses a multi-point calibration method for accurate measurements.
It requires a power supply of 220V ± 22V at 50 Hz.
The indication error is ± 0.4°C for temperatures ≤ 200°C and ± 0.7°C for temperatures greater than 200°C.
It takes ≤ 5 minutes to heat from 50°C to 400°C.
It is compatible with capillary tubes that have an outer diameter of φ1.4 mm, an inner diameter of φ1.0 mm, and a length of 90 mm.
It is suitable for laboratories in pharmaceuticals, chemicals, and research institutions for determining the melting points of various substances.
