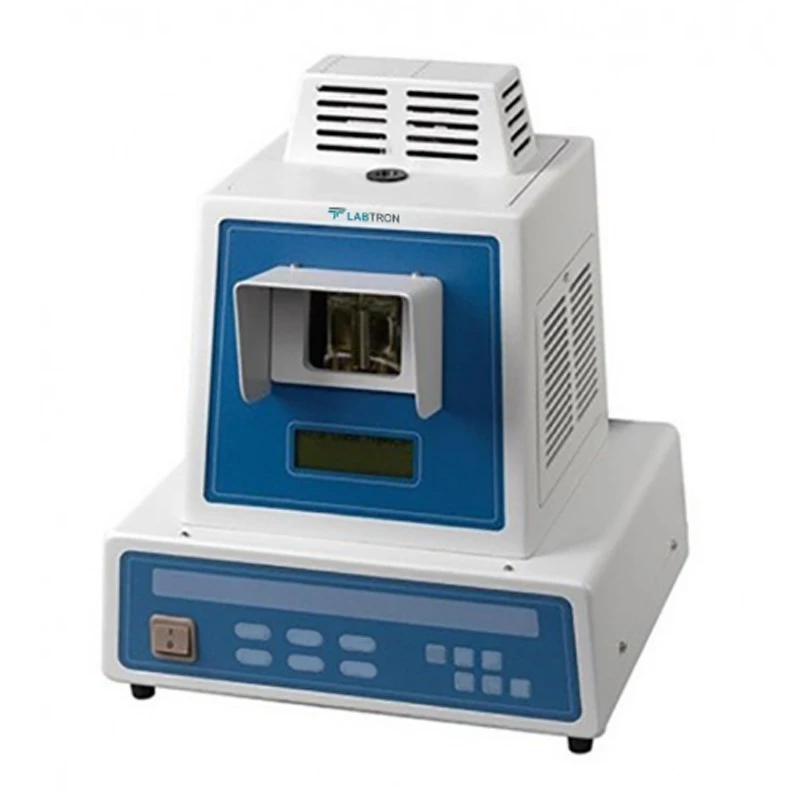

Melting Point Apparatus EDMP-B20
Specifications
| Country of Origin | UK |
|---|---|
| Accuracy | ≤ 200°C — ± 0.4°C | Greater than 200°C — ± 0.7°C |
| Measurement Range | Room temperature to 280°C |
| Display | LCD |
| Brand | Generic Brand |
| Dimension | 390 × 390 × 520 mm |
| Interface | RS232 |
| Model | LDMP-B20 |
| Gross Weight | 13 Kg |
| Type of Product | Melting Point Apparatus |
| Heating Conducting Medium | Silicon oil |
| Minimum Digital Display | 0.1°C |
| Linear Heating Up Rate | 0.5 / 1.0 / 1.5 / 3.0 °C/min |
| Repeatability (Standard Deviation) | 0.3°C (heating rate 1.0°C/min) |
| Size of Capillary | Φ 1.4 mm (outside diameter) / Φ 1.0 mm (inside diameter) / Length — 120 mm |
| Number of Capillary | 3 |
| Loading Height of Sample | 3 mm |
Key Features
- Designed with LCD display
- Temperature ranges from Room temperature to 280˚C
- Equipped with heating conducting medium silicon oil
- Offers 3 mm loading height of sample
- It Measures three samples at the same time
- Automatically calculate average value of initial and final melting points
Product Description
The LDMP-B20 Melting Point Apparatus features a desktop design and is a visual melting point apparatus known for reliable performance. It offers a temperature range from room temperature to 280˚C with a 0.1˚C minimum digital display. Designed with an LCD display, it enables the measurement of melting points for medicines, dye-stuffs, perfumes, and other organic crystal substances to assess purity. The measurement method conforms to pharmacopoeia standards. It can measure three samples simultaneously and automatically calculate the average value of initial and final melting points.
Applications:
It finds application in determining the melting point of oil and fat in the food and drug industry, biochemistry, medicines, mining, and water management industry.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a measurement range from room temperature to 280°C.
This model can measure three samples simultaneously.
The accuracy is ± 0.4°C for temperatures up to 200°C and ± 0.7°C for temperatures greater than 200°C.
It features an LCD display for easy reading of measurements.
The minimum digital display increment is 0.1°C.
It uses silicon oil as the heating conducting medium.
The dimensions are 390 × 390 × 520 mm.
The gross weight of the apparatus is 13 kg.
The linear heating up rate can be set to 0.5, 1.0, 1.5, or 3.0 °C/min.
The repeatability standard deviation is 0.3°C when using a heating rate of 1.0°C/min.
The capillary has an outside diameter of Φ 1.4 mm, an inside diameter of Φ 1.0 mm, and a length of 120 mm.
It is suitable for determining the melting point of medicines, dye-stuffs, perfumes, and other organic crystal substances, as well as applications in the food and drug industry, biochemistry, and water management.
