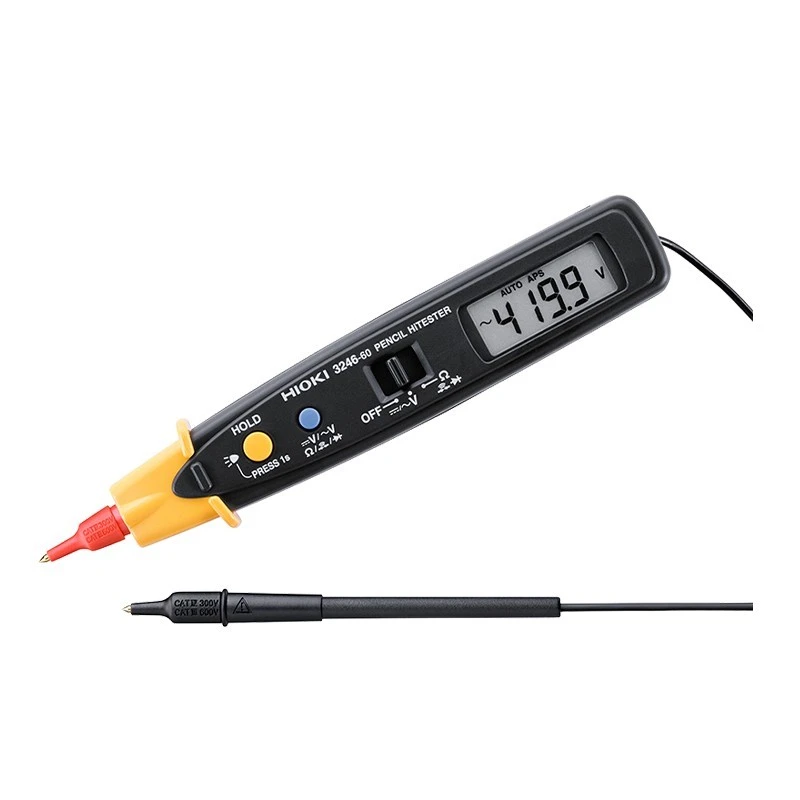

Hioki DMM - Pencil Hi Tester 3246-60
Specifications
| Country of Origin | Japan |
|---|---|
| DC Voltage Range | 419.9 mV – 600 V / 5 ranges / ±1.3% rdg. ±4 dgt. |
| AC Voltage Range | 4.199 V – 600 V / 4 ranges / 50 - 500 Hz / ±2.3% rdg. ±8 dgt. (Average rectified) |
| Resistance Range | 419.9 Ω – 41.99 MΩ / 6 ranges / ±2.0% rdg. ±4 dgt. |
| Display | Digital LCD / max. 4199 counts |
| Brand | HIOKI |
| Power Supply | CR2032 coin lithium battery ×1 / 150 hours (DC V) / 30 hours (with backlight) |
| Dimensions | 30 × 182 × 26.5 mm |
| Model | 3246-60 |
| Weight | 80 g |
| Sampling rate | 2.5 times/sec |
| Included Accessories | Instruction manual / CR2032 battery (trial) / Sleeves (Red/Black) |
| Continuity Check | Detection level 50 Ω ±40 Ω / Buzzer for continuity |
| Auto Power Save | Available (Selectable cancellation) |
| Diode Check | Judges correct direction only / Open terminal voltage - ≤3.4 V / Test current - ≤800 µA |
Key Features
- Test lead and main unit in a single body
- Overload protection to 600 V at resistance or continuity functions
- LED light brightly illuminates test points
Product Description
The 3246-60 is a pencil-style digital multimeter for general electrical maintenance and testing, and includes a brilliant LED at the pen tip for a clear view of the measurement target.
Available on EnvMart, these Multimeters are designed for accurate measurement of voltage, current, and resistance in electrical circuits. Hioki Multimeters offer high precision and reliability, making them essential for electrical testing, diagnostics, and maintenance applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DC voltage measurement range is from 419.9 mV to 600 V, covering 5 ranges with an accuracy of ±1.3% reading ±4 digits.
It measures AC voltage in the range of 4.199 V to 600 V across 4 ranges, with a frequency response of 50 to 500 Hz and an accuracy of ±2.3% reading ±8 digits.
The resistance measurement range is from 419.9 Ω to 41.99 MΩ, with 6 ranges and an accuracy of ±2.0% reading ±4 digits.
It has a digital LCD display with a maximum count of 4199 counts, providing clear readings for measurements.
This model is powered by a CR2032 coin lithium battery, which lasts approximately 150 hours for DC voltage measurements and 30 hours with the backlight on.
The dimensions of this multimeter are 30 mm in width, 182 mm in length, and 26.5 mm in height.
This model weighs 80 grams, making it lightweight and portable for various testing applications.
Included accessories are an instruction manual, a trial CR2032 battery, and sleeves in red and black.
Yes, it features a continuity check with a detection level of 50 Ω ±40 Ω and includes a buzzer for continuity indication.
The sampling rate of this model is 2.5 times per second, allowing for quick measurements.
Yes, the Hioki 3246-60 has an auto power save feature that can be selected for cancellation.
This multimeter is made in Japan, reflecting its manufacturing standards.
