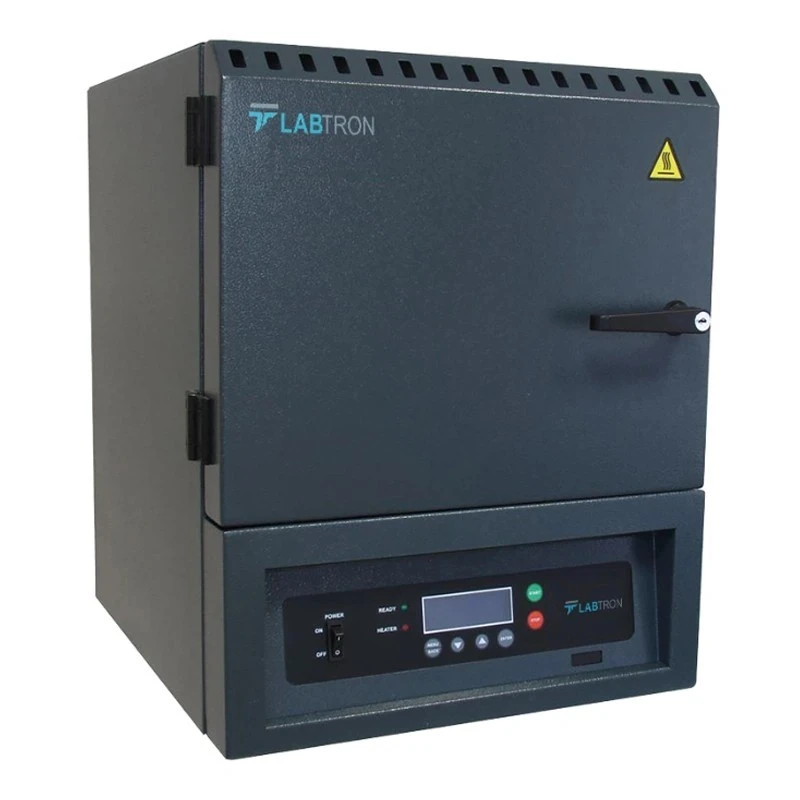

Muffle Furnace EMF-C11
Specifications
| Capacity | 5 L |
|---|---|
| Brand | Generic Brand |
| Power | 2.000 W |
| Net Weight | 43 kg |
| Model | LMF-C11 |
| Max. Temperature | 1200°C |
| Gross Weight | 57 kg |
| Housing Material | Steel Sheet |
| Measurement Accuracy | ±1°C |
| Thermocouple Type | K Type |
| Heating element | Fe-Cr-Al |
| Max. current | 9A |
| Temperature Control Accuracy | ±1°C (can vary at low temperatures) |
| Inner Chamber Dimension (W × H × D) | 150 × 150 × 225 mm |
| Heating Program | 4 step |
| Thermal Rate | 3°C - 20°C |
| Program Memories | 4 |
| Heating Element Placement | Embedded into brick walls |
| Inner Insulation Material | Insulating Fire Brick |
| Front Face Insulation Material | Insulating Fire Brick |
| Door Insulation Material | Ceramic Fibre Board |
| Housing Coating | Epoxy powder coating |
| Chimney | Standard |
| Lockable Door Handle | Sidewards |
| Inner Volume Temperature Homogeneity | ±10°C |
| Product Outer Dimension (W × H × D) | 446 × 618 × 620 mm |
| Gross Dimension (W × H × D) | 506 × 780 × 678 mm |
| Heating Element Protection | Quartz Tube |
Key Features
- PID controller
- LCD display that shows current and target temperature
- Optimum insulation properties
- 2, 4, 8 and 16 step heating programs available
- Fe-Cr-Al heating element embedded in brick walls
- Accurate measurement and control of temperature using K and S type thermocouple
- Second thermocouple for different adjustable purposes
- Durable inside lining made of light insulating bricks
- Dual shell housing for low outer surface temperature
- Steel sheet housing material
- Insulating fire brick as inner and front face insulation material
- Ceramic fibre board as door insulation material
- Quartz tube used to protect heating element
- Provision of audio warning as the step changes and at the end of the program
- Provision of automatic power cut-off to the heating elements and alert if the control unit/control card is overheated
- Instantaneous energy consumption indicator
- Calculator for average working temperature
- Descriptive error indicator
- User friendly menu
Product Description
LMF-C11 model of Muffle Furnace is an efficient, accurate, and reliable microprocessor-controlled furnace with optimum insulation properties and basic control options. Crafted for minimal space requirements in the laboratory, it is equipped with an instantaneous energy consumption indicator, calculator for average working temperature, total working hour counter, and descriptive error indicator. With heating elements, Fe-Cr-Al embedded into bricks, dual shell housing for low outer temperature, and K and S type thermocouple, it is perfect for maximum and continuous working temperature of 1200°C.
Applications:
It is used for applications such as: Fusing glass, Creating enamel coatings, Ceramics, Soldering, Brazing, Rubbers & Polymers. It is also used for metallurgical applications, for ash content determination, and in research centers and medical laboratories to determine the volatile & non-combustible proportion of the sample.
Optional Accessories:
- High Temperature Gloves
- Tongs
- Alumina Crucibles
- Metal Crucibles
- Alumina Combustion Boats
- Ceramic Pipes
- Extra Thermocouples
Optional Features:
- Over Temperature Limiter
- Lift-up Door
- Stainless Steel Body
- Gas Supply Connection
- Open Door Sensor
- Second Thermocouple
- Observation Hole
- PC Connection
- 110 V Power Supply
Spare Parts:
- Inner Module: Changing the inner module renews your furnace close to a brand new furnace
- Door Insulation: With sheet metal holder vessel
- Control Card: Easy-to-replace, pre-programmed
- Power Card: Easy-to-replace
- Display: 4 x 20 LCD display
- Cooling Fan: 80 x 80 x 20 / 220 V fan
- Chimney Fan: 40 x 40 x 10 / 5V fan
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum temperature of this model is 1200°C.
The inner chamber dimensions are 150 mm in width, 150 mm in height, and 225 mm in depth.
It uses a K type thermocouple for accurate temperature measurement and control.
This muffle furnace has a power rating of 2000 W.
The inner insulation is made of insulating fire brick, while the door insulation is made from ceramic fibre board.
The net weight of this model is 43 kg, and the gross weight is 57 kg.
The measurement accuracy is ±1°C, which can vary at low temperatures.
The outer dimensions of this furnace are 446 mm in width, 618 mm in height, and 620 mm in depth.
The heating element is made of Fe-Cr-Al and is embedded into the brick walls for efficient heating.
Optional accessories include high temperature gloves, tongs, alumina crucibles, metal crucibles, alumina combustion boats, ceramic pipes, and extra thermocouples.
Temperature control is achieved using a PID controller with an LCD display that shows current and target temperatures.
