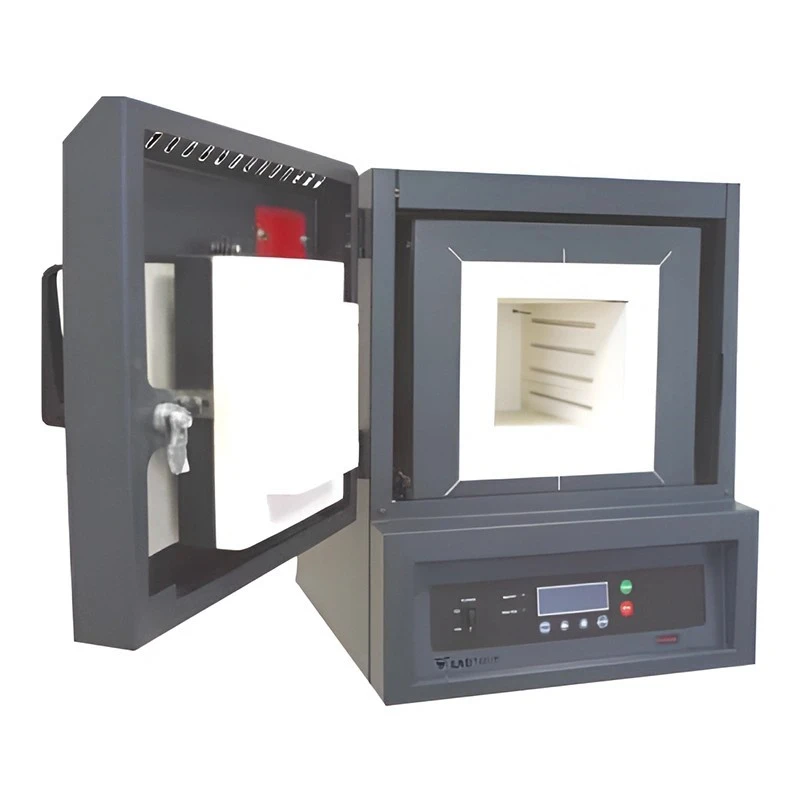

Muffle Furnace EMF-C41

Name: Muffle Furnace EMF-C41
Brand: Generic Brand
SKU: ADCWL
Price: 69.5 USD
Availability: InStock



SKU ADCWL Category Laboratory Furnaces Brand Generic Brand Condition New

Specifications

Capacity	20 L
Brand	Generic Brand
Power	4.200 W
Net Weight	65 Kg
Model	LMF-C41
Max. Temperature	1200°C
Gross Weight	85 Kg
Housing Material	Steel Sheet
Measurement Accuracy	±1°C
Thermocouple Type	K Type
Heating element	Fe-Cr-Al
Max. current	2 × 9A
Temperature Control Accuracy	±1°C (can vary at low temperatures)
Inner Chamber Dimension (W × H × D)	250 × 200 × 395 mm
Heating Program	4 steps
Thermal Rate	3°C - 20°C
Program Memories	4
Heating Element Placement	Embedded into brick walls
Inner Insulation Material	Insulating Fire Brick
Door Insulation Material	Ceramic Fiber Board
Housing Coating	Epoxy powder coating
Chimney	Standard
Lockable Door Handle	Sidewards
Inner Volume Temperature Homogeneity	±10°C
Product Outer Dimension (W × H × D)	546 × 668 × 790 mm
Gross Dimension (W × H × D)	606 × 950 × 728 mm
Heating Element Protection	Quartz Tube

Key Features

LCD display shows current and target temperature
Heating programs are available in 2, 4, 8, and 16 steps
Instantaneous energy consumption indicator
Calculator for average working temperature
Total working hour counter and error indicator included

Product Description

Muffle Furnace LMF-C41 has a 20L capacity and reaches up to 1200°C. It's microprocessor-controlled, with straightforward controls and excellent insulation. Equipped with K and S type thermocouples in a dual-shell enclosure, it maintains low outside temperatures. Audio alerts signal the end of the program and step changes. Additionally, it includes automatic power cutoff for heating elements and alerts for overheating control units.

Applications:

Our muffle furnace is utilized across diverse industries such as glass, textile, rubber, plastic, biomedical, paint, and metallurgical applications for various heating and processing needs.

Standard Accessories:

High Temperature Gloves
Tongs
Alumina Crucibles
Metal Crucibles
Alumina Combustion Boats
Ceramic Pipes
Extra Thermocouples

Optional Features:

Over Temperature Limiter
Lift-up Door
Stainless Steel Body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply

Spare Parts:

Inner Module: Changing the inner module renews your furnace close to a brand-new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace
Display: 4 × 20 LCD display
Cooling Fan: 80 × 80 × 20 / 220 V fan
Chimney Fan: 40 × 40 × 10 / 5V fan

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The muffle furnace can reach a maximum temperature of 1200°C.

This model uses a K type thermocouple for temperature measurement.

The temperature control accuracy is ±1°C, which may vary at lower temperatures.

The inner chamber dimensions are 250 mm wide, 200 mm high, and 395 mm deep.

The power rating is 4.200 W, with a maximum current of 2 × 9A.

The housing is made of steel sheet, while the inner insulation material is insulating fire brick and the door insulation is ceramic fiber board.

The heating element is embedded into the brick walls for efficient heating.

It includes an automatic power cutoff for heating elements and alerts for overheating control units.

Standard accessories include high temperature gloves, tongs, alumina crucibles, metal crucibles, alumina combustion boats, ceramic pipes, and extra thermocouples.

The net weight of the muffle furnace is 65 kg, and the gross weight is 85 kg.

It is utilized in various industries such as glass, textile, rubber, plastic, biomedical, paint, and metallurgical applications for heating and processing needs.
