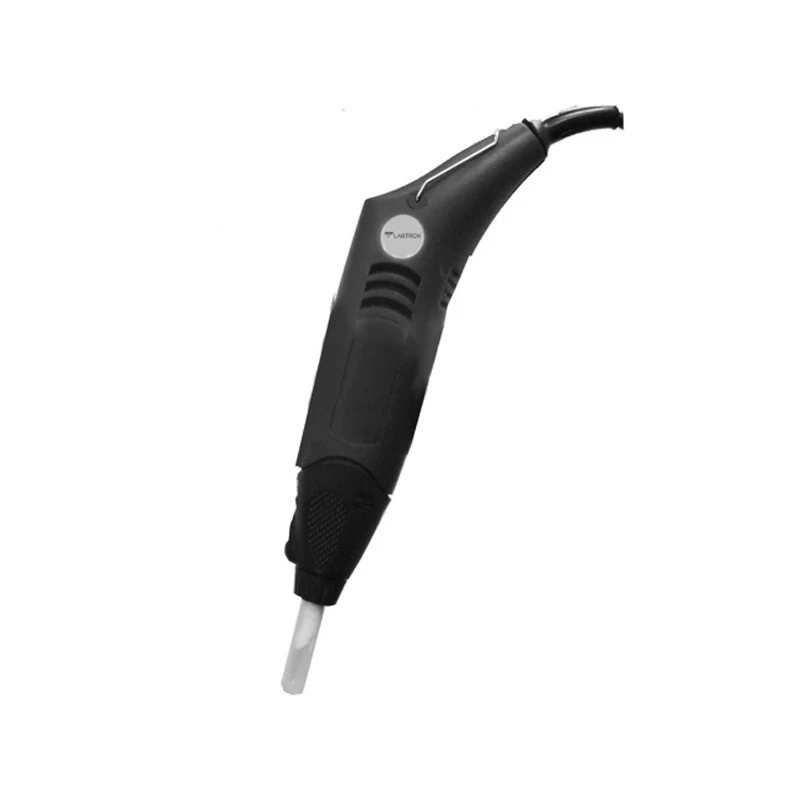

Handheld Homogenizer EHHH-A11
Specifications
| Brand | Generic Brand |
|---|---|
| Voltage (V) | AC 220 V / 50/60 Hz |
| Model | LHHH-A11 |
| Work Mode | S1 min (continuous) |
| Weight | 1.0 kg |
| Output Power | 110 W |
| Input power | 145 W |
| Permissible relative humidity | Not more than 80% |
| Speed Control Type | Speed dial |
| Operation Control Method | 6 gears |
| Speed Adjustment Range | 5000 to 35000 rpm |
| Material of the Operating Head | SS 316 |
| Permissible Ambient Temperature (ºC) | Not more than 40°C |
| Rated Torque | 3.1 N.cm |
| Work Head (Stirring) Specification | 6G (optional - 8G / 10G) |
| Stirring Head Material | AISI 316 |
| Peak Torque of the Stirring Head | 3.0 N.cm |
| Homogenizer Dimension | 380 × 80 × 50 mm |
Key Features
- Ergonomic handheld design
- Quick-change working head
- Adjustable speed control
- Stable and vibration-free operation
- Overheat protection mechanism
- Sealed motor for durability
- High-performance rotor-stator system
- Low maintenance and easy cleaning
- Corrosion-resistant stainless steel head
Product Description
Handheld Homogenizer LHHH-A11 operates at 5000 to 35000 rpm, delivering efficient and uniform sample emulsification. It features a six-gear speed control system with an intuitive dial for precise adjustments. The high-speed motor generates a peak torque of 3.0 N.cm, ensuring strong shear force for effective processing. Its modular structure allows for quick assembly and easy cleaning of the working head. Our handheld homogenizer is ideal for biopharma, tissue culture, and food processing applications.
Applications
Our Handheld Homogenizer LHHH-A11 enables high-speed sample dispersion for bio-pharma, tissue culture, and food processing. Its lightweight, portable design suits on-site experiments.
Work Head Specifications
- 6G - Mixing Capacity (H2O): 0.2 to 10 ml, Max Viscosity: 100 mpa.s, Peak Linear Speed: 8 m/s, Min Liquid Height: 12 mm, Max Liquid Height: 60 mm, Stator Diameter: 6 mm, Max Temperature: 120°C, Work Head Material: SS316, Bearing Material: PTFE
- 8G - Mixing Capacity (H2O): 1 to 60 ml, Max Viscosity: 100 mpa.s, Peak Linear Speed: 10 m/s, Min Liquid Height: 15 mm, Max Liquid Height: 85 mm, Stator Diameter: 8 mm, Max Temperature: 120°C, Work Head Material: SS316, Bearing Material: PTFE
- 10G - Mixing Capacity (H2O): 30 to 350 ml, Max Viscosity: 200 mpa.s, Peak Linear Speed: 13 m/s, Min Liquid Height: 20 mm, Max Liquid Height: 110 mm, Stator Diameter: 10 mm, Max Temperature: 120°C, Work Head Material: SS316, Bearing Material: PTFE
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a speed adjustment range of 5000 to 35000 rpm, allowing for precise control over the homogenization process.
It can process samples with a maximum viscosity of 200 mpa.s, depending on the work head used.
The homogenizer has dimensions of 380 × 80 × 50 mm and weighs 1.0 kg, making it lightweight and portable for on-site experiments.
The operating head is made from SS 316 stainless steel, ensuring resistance to corrosion and durability during use.
The peak torque of this model is 3.0 N.cm, providing strong shear force for effective sample processing.
Speed is controlled using a six-gear speed dial, allowing for intuitive and precise adjustments during operation.
The maximum operating temperature for this model is 120°C, suitable for various laboratory applications.
The permissible relative humidity for operation is not more than 80%, ensuring optimal performance in various environments.
The input power required for the Handheld Homogenizer EHHH-A11 is 145 W, with an output power of 110 W.
The minimum liquid height required is 12 mm, and the maximum liquid height is 110 mm, depending on the work head used.
This model operates in S1 min mode, allowing for continuous operation during homogenization tasks.
